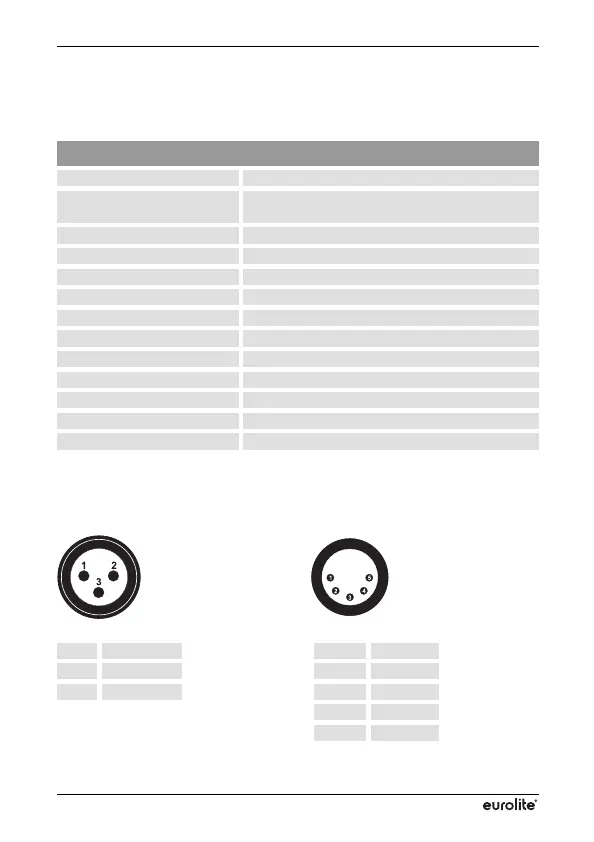

TECHNICAL SPECIFICATIONS
QuickDMX
DMXDMX
DMX Transmitter and Receiver [70064700, 70064701, 70064702]
Power supply: 5 V DC, 350 mA
70064700, 70064701: via included power unit connected to
100-260 V~, 50/60 Hz
70064702: via phantom power
Carrier frequency: 2.4 GHz ISM band, 78 channels
Modulation: GFSK
Coverage: 400 m (line-of-sight)
Parallel operation: max. 6 transmitters
DMX connector:
70064700, 70064701: 3-pin XLR
70064702: 5-pin XLR
DMX channels: 1 universe (512 channels)
Dimensions with antenna: 212 x 18 x 18 mm
Weight: 80 g
Pin Connection
3-pin XLR connector 5-pin XLR connector
1 Ground 1 Ground
2 Signal ‒ 2 Signal ‒
3 Signal + 3 Signal +
4 5 V +
5 5 V ‒
