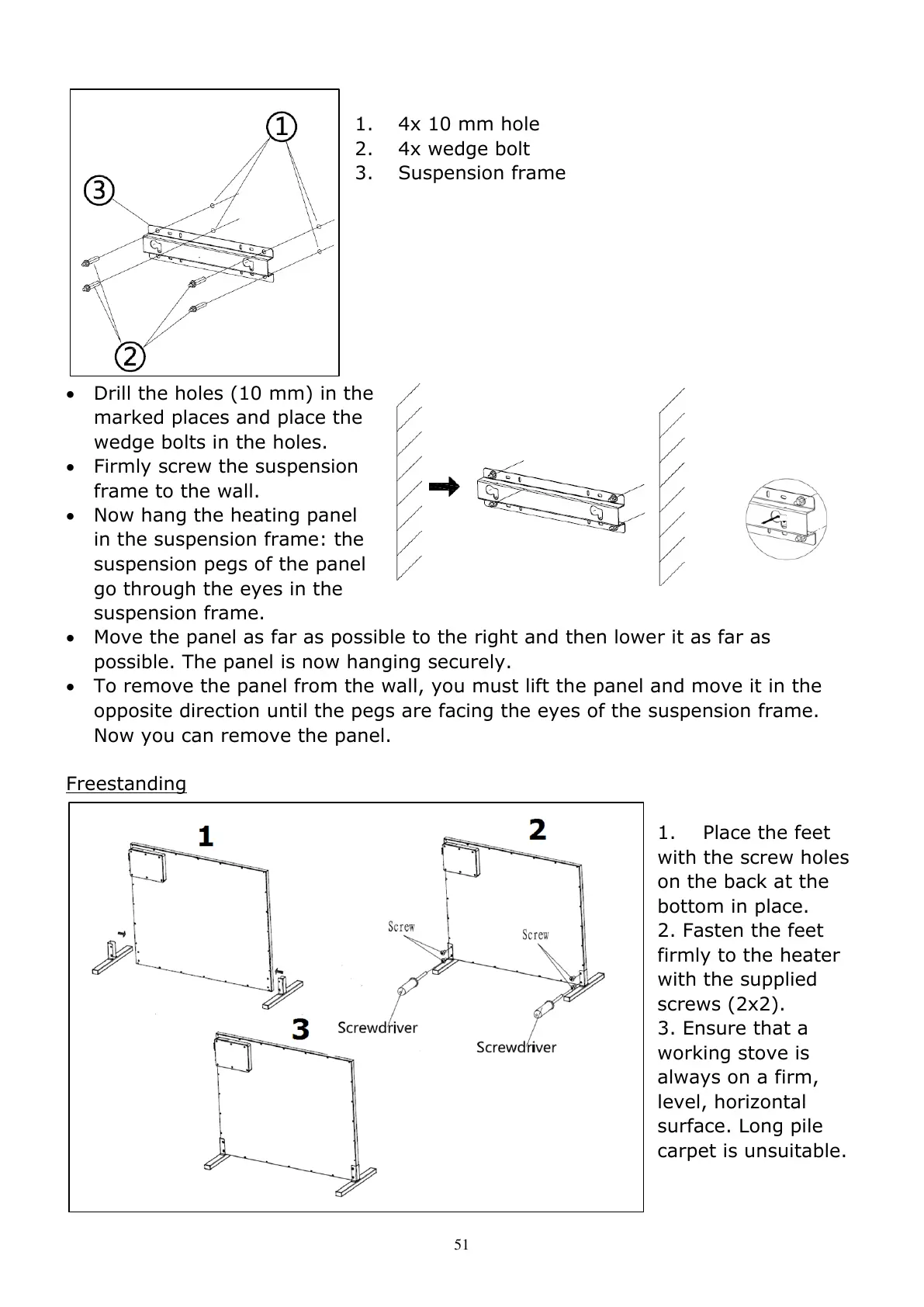

51
1. 4x 10 mm hole
2. 4x wedge bolt
3. Suspension frame
Drill the holes (10 mm) in the
marked places and place the
wedge bolts in the holes.
Firmly screw the suspension
frame to the wall.
Now hang the heating panel
in the suspension frame: the
suspension pegs of the panel
go through the eyes in the
suspension frame.
Move the panel as far as possible to the right and then lower it as far as
possible. The panel is now hanging securely.
To remove the panel from the wall, you must lift the panel and move it in the
opposite direction until the pegs are facing the eyes of the suspension frame.
Now you can remove the panel.
Freestanding
1. Place the feet
with the screw holes
on the back at the
bottom in place.
2. Fasten the feet
firmly to the heater
with the supplied
screws (2x2).
3. Ensure that a
working stove is
always on a firm,
level, horizontal
surface. Long pile
carpet is unsuitable.
