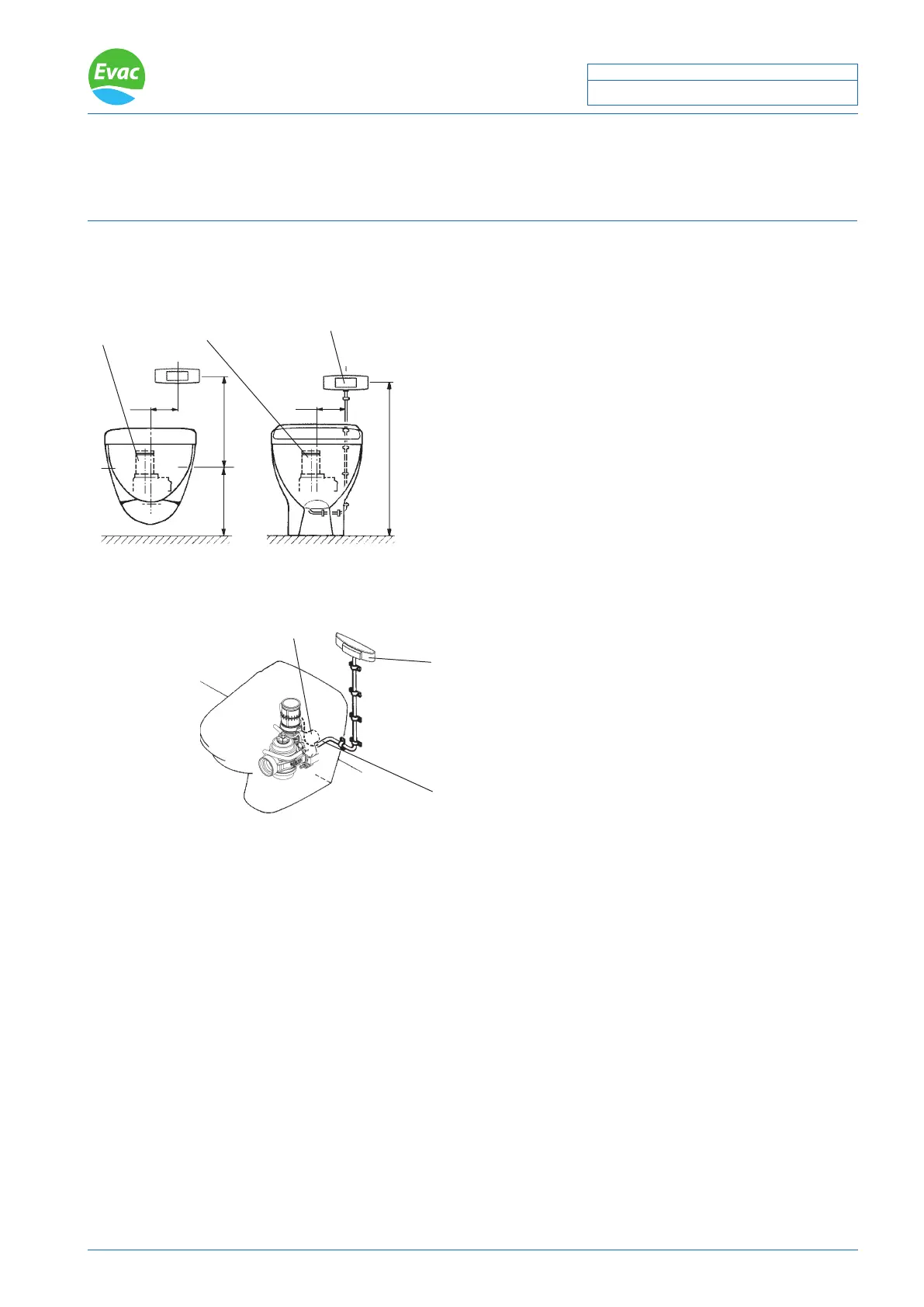

Evac 910 - Recommended Push Button Location

EVAC reserves the right to make alterations to this specication without prior notice.
© Copyright Evac Oy. All rights reserved.
2
VACUUM TOILET
INSTALLATION
Date:
Doc.
28 Jan 2011 002002-3
6541458 PNEUMATIC PUSH BUTTON, EVAC 910, WALL MODELS
6541057 OPTIONAL PNEUMATIC PUSH BUTTON KIT, EVAC 910, FLOOR MODELS
Control mechanism
~290
330*
130
~640*
110
Optional push button
(Floor models)
Discharge pipe
Recommended place for the button
! NOTE: Make sure, that cover does not hit the push button
when opened. (*In Aniara/Mosaik/Trevi models dimension
is 100mm smaller due to the exible cover.) If the place is
changed, consult EVAC.
Floor models
Optional pneumatic push button kit
Install the protecting pipe under the discharge pipe.
