Evac 910 - EVAC 910 Toilet Installation Guide; Push Button & Vacuum Breaker Placement

EVAC reserves the right to make alterations to this specication without prior notice.
© Copyright Evac Oy. All rights reserved.
1

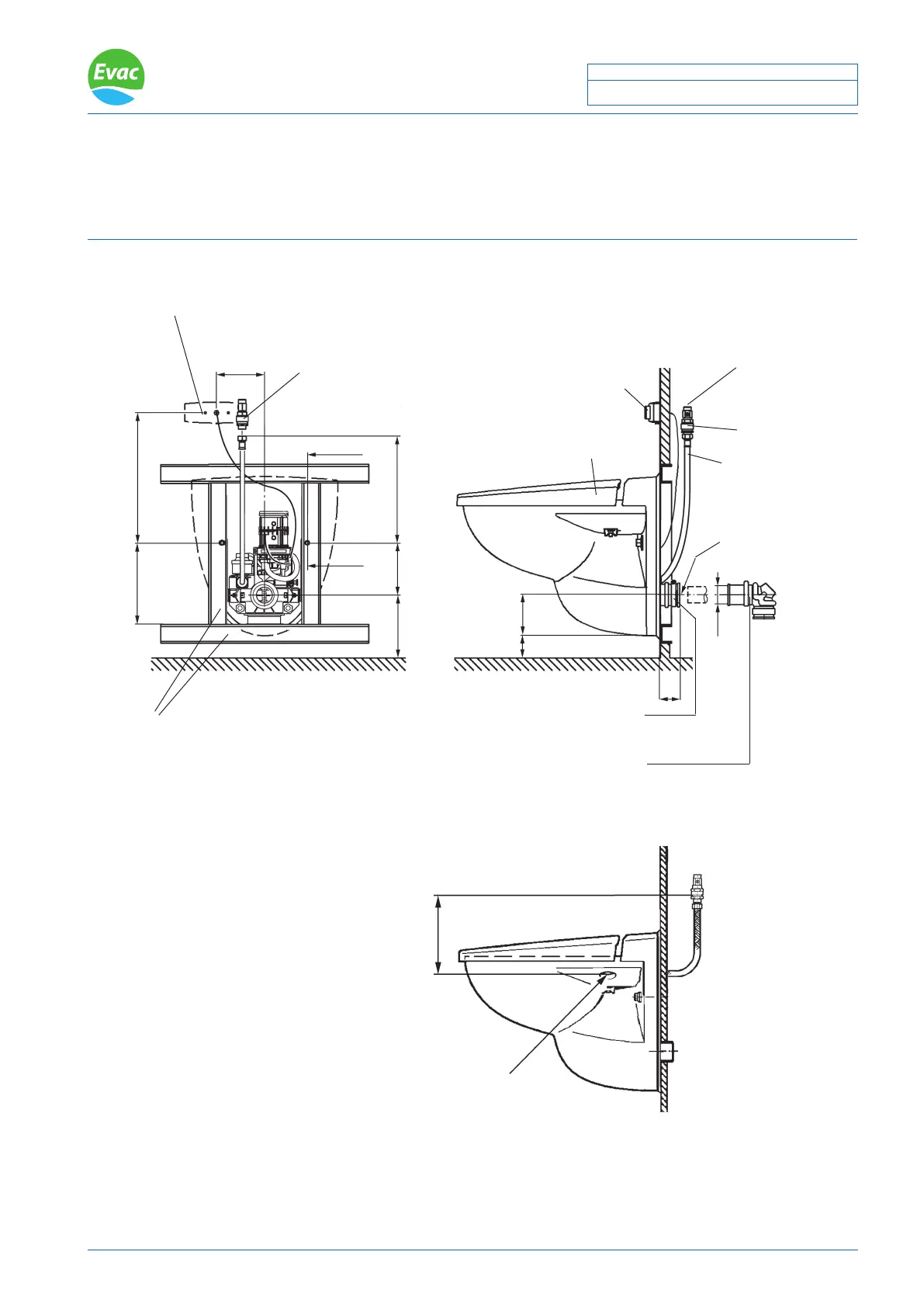

VACUUM TOILET
INSTALLATION
Date:
Doc.
09 Dec 2010
001998-5
6543418 EVAC 910, WALL MODEL, PRESTIGE SILENT
6543419 EVAC 910, WALL MODEL, MOSAIK
6547226 EVAC 910, WALL MODEL, PRESTIGE SOFT CLOSING
220
330
140160
220
*(Water supply hose)
! NOTE: Recommended place for the button.
If place is changed, consult EVAC.
A
A
U-beam
(Not included in EVAC supply)
Fasten the beam to a solid structure.
130
P/N 5433572
Straight connection hose
Pneumatic push button
50
Seat and cover:
Prestige or Mosaik or
Prestige Soft Closing
110
45
Ø50
Shut-off valve
1/2” MPT
Flexible water hose
Vacuum breaker
Discharge pipe
alignment
tolerance
to be ±3.0 mm
P/N 6544769
Rubber elbow 90°,
optional connection
* The vacuum breaker air inlet must be located at a minimum of
150mm (6”) above the overow point of the toilet.
*150
! NOTE: Overow point is inside the toilet bowl
Overow point
Vacuum breaker installation,
see doc. 002017-3
