VACUUM TOILET
INSTALLATION
Date:
Doc.
09 Dec 2010
001998-5
6543418 EVAC 910, WALL MODEL, PRESTIGE SILENT
6543419 EVAC 910, WALL MODEL, MOSAIK
6547226 EVAC 910, WALL MODEL, PRESTIGE SOFT CLOSING
Installation kit 6540972 consists of:
Plastic nut M12 2 pcs
Guiding nut 2 pcs
Edge strip 1 pc
Mounting instruction 1 pc
Straight connection hose 1 pc
Hose clamp 2 pcs

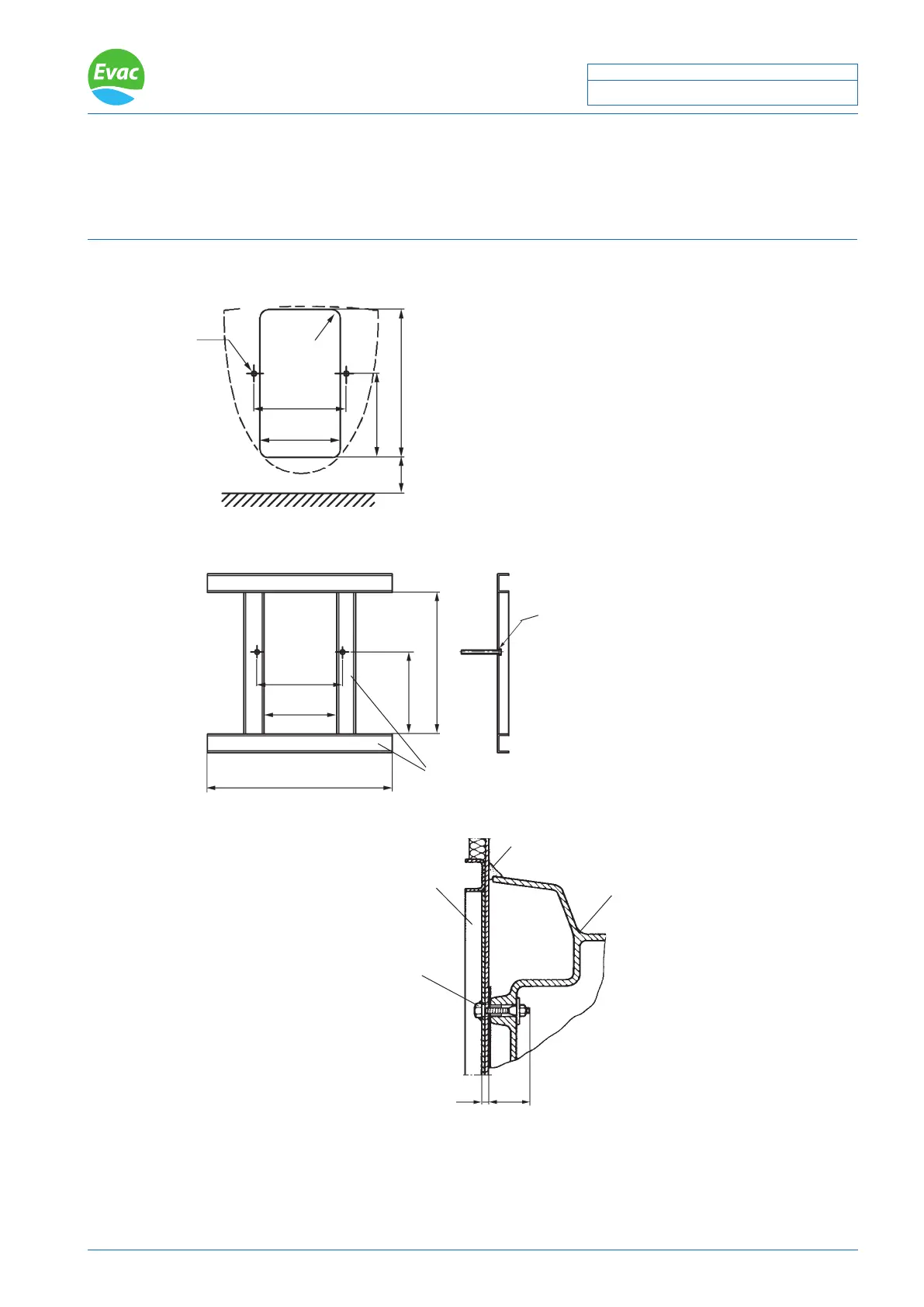

Toilet supporting beams for wall models
Cross section A - A
Edge strip
Total length of bolt = T + 65 ± 2
T 65±2
Beam
Toilet bowl
Bolt M12 (not EVAC supply) to be welded.
! NOTE: Thread on the bolt must be full length.
Ø13
230
Dimensions of toilet service opening through the wall
370
210
200
90
R20
Bolt M12 to be welded
(not EVAC supply)
Length according to
the space available
230
220
380
200
U-beam 50x30x2 (not EVAC supply)
