Evac 910 - EVAC 910 Toilet Assembly Procedures; Seat Type Component Connections; Hose and Pipe Assembly Details

09 Dec 2010 002017-3
6543418 EVAC 910, WALL MODEL, PRESTIGE SILENT
6543419 EVAC 910, WALL MODEL, MOSAIK
6547226 EVAC 910, WALL MODEL, PRESTIGE SOFT CLOSING
• Connect the water connection hose (A) to the water valve.
• Install the back plate assembly on the wall using the bowl fastening bolts (B) (M12, not included) and the
guiding nuts (C) (M12). The guiding nuts are necessary.
• Connect the hose (D) from the ushing ring to the water valve. Do not use any kind of grease during
installation! Secure with hose clamps. Tighten the hose clamps with pliers.
! NOTE: Install the hose (D) from the ushing ring in the toilet bowl to the right side of the discharge valve and
below all other hoses.
• Lift bowl onto the fastening bolts and tighten the securing nuts (E). Tightening torque is 15-20 Nm.
! NOTE: Check hoses through the toilet service opening in the wall that the hoses run smoothly. The hoses
shall not have any kinks.

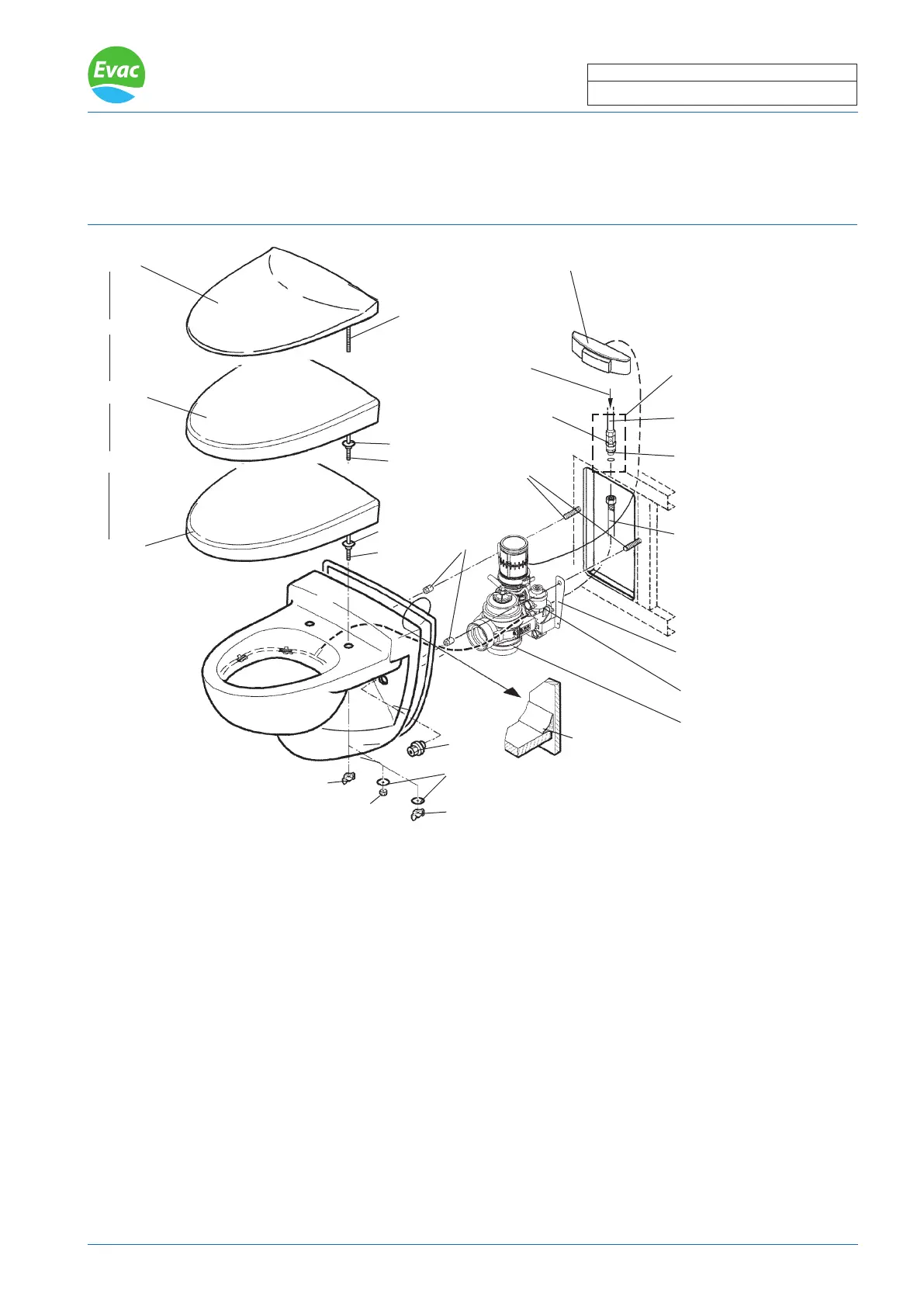

• Fit the edge strip as shown in gure 1. Place the joint of the strip to the bottom side of the bowl.
• Install the seat and the cover. See the installation of the Prestige Soft Closing (document
002503-2).
• Connect the discharge connection. Secure with the hose clamps.
• Connect the shut-off valve/vacuum breaker assembly to the water supply. The shut-off valve must be installed
to the water supply piping’s side to ensure the correct ow direction in the vacuum breaker. Note the vacuum
breaker must be installed vertically as shown.
• Connect the water connection hose (A) to the shut-off valve/vacuum breaker assembly.
• Install the pneumatic push button (See document 002002-3).
E
Hose A (EPDM) L=400,
braid of stainless steel
wire
D
Water valve
B
Pneumatic push button
Edge strip
Mosaik
Prestige
Fig.1
C
Vacuum breaker
Shut-off valve,
1/2” MPT BSP
Shut-off valve /
vacuum breaker
assembly
Discharge valve (See notes!)
Hinge
Washer
Wing nut
Hingebody
or
Fresh water
connection
Back plate
assembly
Pipe Ø12
Washer
or
Prestige
Soft Closing
or
or
Nut
Wing nut
Washer
Hinge
EVAC reserves the right to make alterations to this specication without prior notice.
© Copyright Evac Oy. All rights reserved.
INSTALLATION
