VACUUM TOILET
INSTALLATION
Date:
Doc.
09 Dec 2010
002503-2
6546819 PRESTIGE SOFT CLOSING, SEAT AND COVER
002503-2
Screw
Washer (metal)
Bushing (plastic)
Washer
(metal and plastic)
Wing nut
Bowl
Hinge, left
(blue mark)
Hinge, right
(yellow mark)
Seat
Cover
2. Push the hinges into the hole of the seat and the cover.

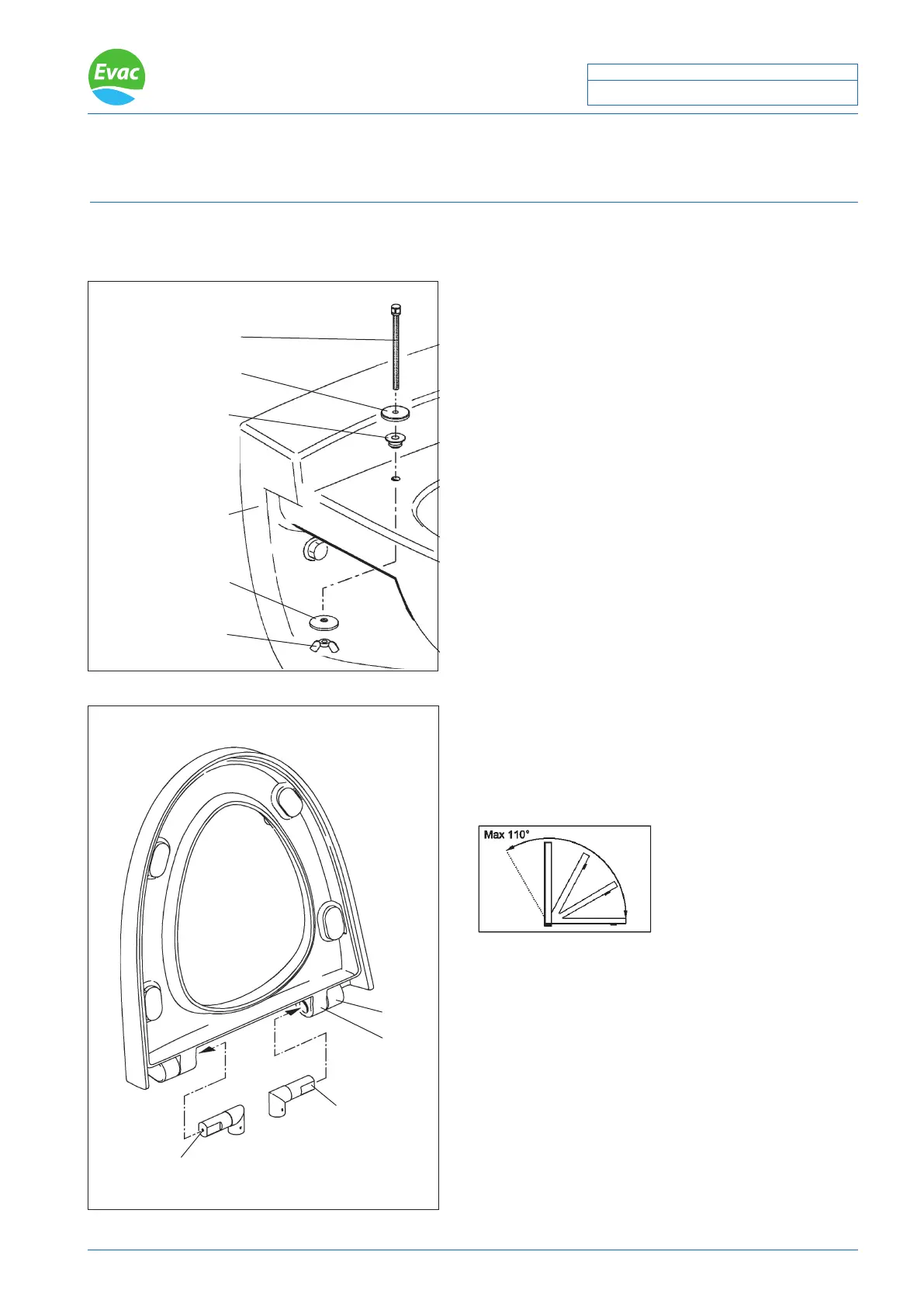

1. Install the parts of the installation kit. Note the installation
order.
! NOTE: Do not open the seat (with the hinges
inserted) hinges before assembly. The opening angle
must not exceed 110°.
Installation
