41
Car Seat Features
Revolve360 Seat Rotation
When your child is securely harnessed, rotate the seat either
FORWARD-FACING or REAR-FACING based on their size (pgs.
10 and 12) and release the Rotation Handle.

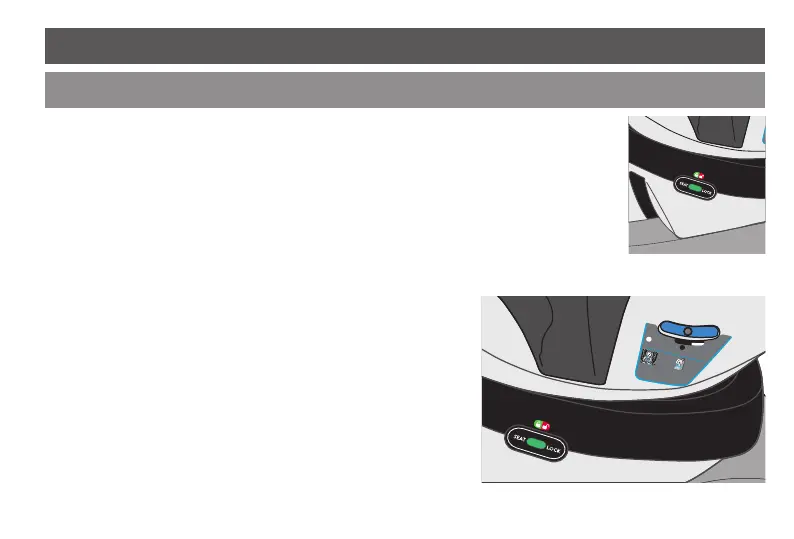

The Seat Lock Indicator will be GREEN.
NOTE: The Revolve360 Slim can only be rotated in the forward-
facing direction in the most reclined position.
Before driving:
1. Make sure that the Seat Lock Indicator is
GREEN.
2. For REAR-FACING mode ONLY, also make
sure that the Level Indicator is in correct
zone for child size:
• White Zone: 1.8 - 9 kg (4 - 20 lbs)
• Black Zone: 9 - 22.6 kg (20 - 50 lbs)
Chest Clip at armpit level
Shoulder straps
must be at or
just below
child’s
shoulders.
Top of head
MUST be 2.5
cm (1 in) or
more below top
of headrest or
shell.
Always use tether strap in rear facing
harness installation.
Ball must be completely in proper zone for child size.
Vehicle MUST be on level ground.
Rear Facing
1.8 - 9 kg (4 - 20 lbs)
Rear Facing
9 - 22.6 kg (20 - 50 lbs)
25809693 8/22
Chest Clip at armpit level
Shoulder straps
must be at or
just below
child’s
shoulders.
Top of head
MUST be 2.5
cm (1 in) or
more below top
of headrest or
shell.
Always use tether strap in rear facing
harness installation.
Ball must be completely in proper zone for child size.
Vehicle MUST be on level ground.
Rear Facing
1.8 - 9 kg (4 - 20 lbs)
Rear Facing
9 - 22.6 kg (20 - 50 lbs)
25809693 8/22
