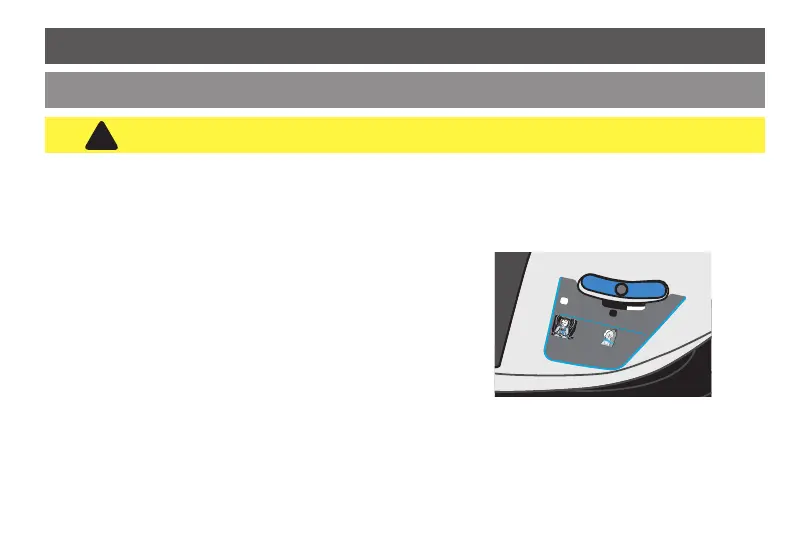

Lap Belt Only (Rear-Facing and Forward-Facing)
Installing Lap Belt
14. For REAR-FACING installation, lift up
on Recline Adjuster (pg. 39) and tilt
seat so that Recline Ball is in correct
zone for child size:
• White Zone: 1.8 - 9 kg (4 - 20 lbs)
• Black Zone: 9 - 22.6 kg (20 - 50 lbs)
Check recline angle using Level
Indicator.
15. For FORWARD-FACING installation,
Car Seat should be fully upright.
!
WARNING! DEATH or SERIOUS INJURY can occur.
Failure to properly recline the Car Seat could increase the child’s risk of death
or serious injury. Infants may have difculty breathing when in an upright seated
position. Make sure they recline enough for their head to lie back comfortably and
safely.
Chest Clip at armpit level
Shoulder straps
must be at or
just below
child’s
shoulders.
Top of head
MUST be 2.5
cm (1 in) or
more below top
of headrest or
shell.
Always use tether strap in rear facing
harness installation.
Ball must be completely in proper zone for child size.
Vehicle MUST be on level ground.
Rear Facing
1.8 - 9 kg (4 - 20 lbs)
Rear Facing
9 - 22.6 kg (20 - 50 lbs)
