Pre-installation (continued)

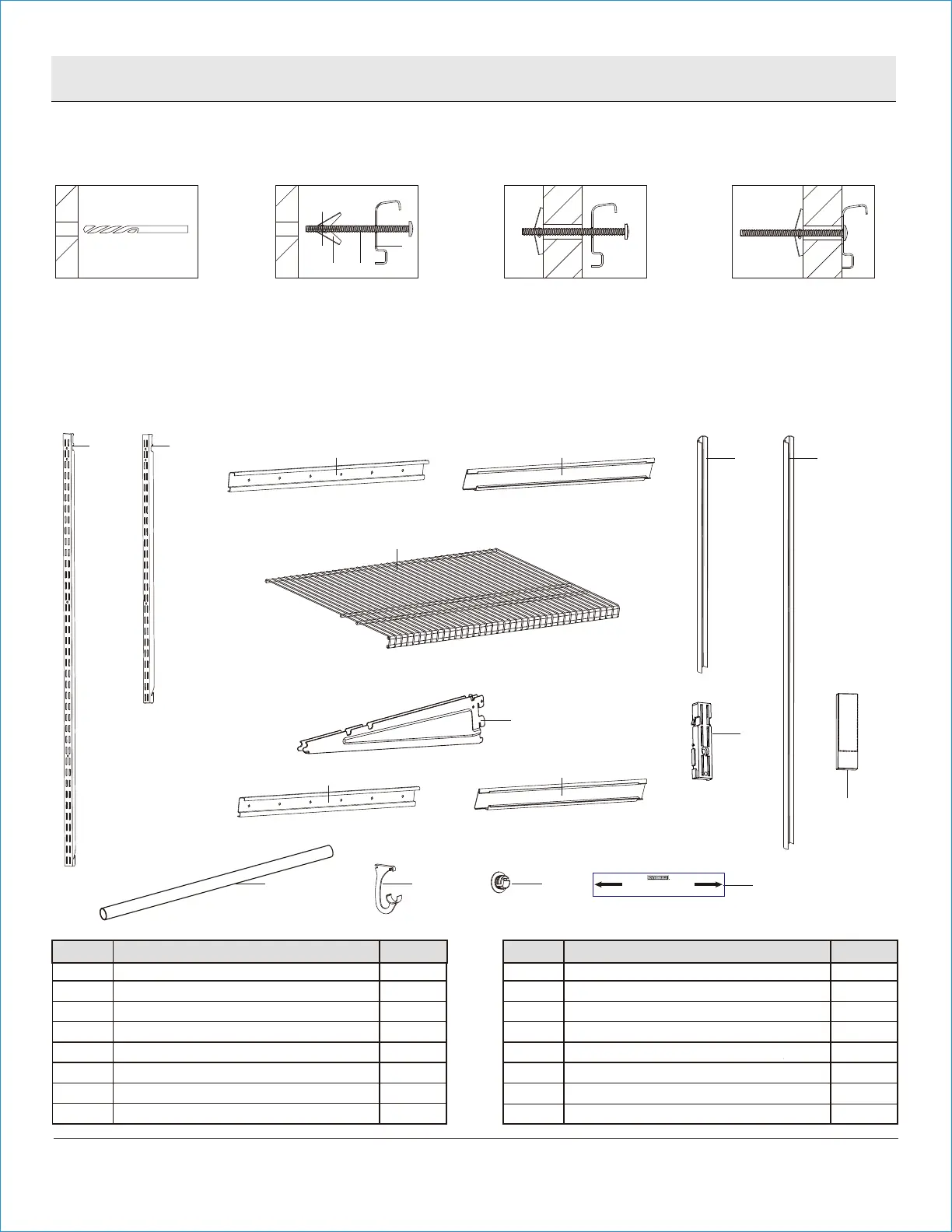

COMPONENT PACKAGE CONTENTS
A
B
C
D
E
F
G
H
48 in. Vertical Rail
30 in. Vertical Rail
25.5 in. Hang Track
25.5 in. Hang Track Cover
30 in. Vertical Rail Cover
48 in. Vertical Rail Cover
24 in. x 16 in. Wire Shelf
Shelf Bracket
4
4
1
1
4
4
8
14
Part QuantityDescription
A
B
E F
I
H
NL M
DC
K
J
G
I
J
K
L
M
N
O
P
Vertical Rail Joiner
24 in. Hang Track
24 in. Hang Track Cover
24 in. Chrome Closet Rod
Chrome Closet Rod Bracket
Chrome Closet Rod Endcap
Spacer
Drilling Template Box
4
2
2
2
4
4
1
1
Part QuantityDescription
P
CHOOSE YOUR HARDWARE
O
VERTICAL RAIL SPACER
*DO NOT DISCARD*
*DO NOT DISCARD*
*DO NOT DISCARD*
*DO NOT DISCARD*
DRYWALL
Drill a 1/2 in. hole in the drywall. If
you hit a stud during drilling, use
above stud hardware/instructions
for each stud location.
Insert bolt through hang track (or
vertical rail/vertical rail joiner) then
screw on toggle (DD).
Install toggles (DD) in each hole of
the component you are attaching
before attaching to the wall.
Compress and pass the toggle (DD)
through the hole you drilled.
Allow the toggle (DD) to spring
apart behind the drywall.
Screw the bolt (CC) until tight to
secure. Pull back on screw head
for tension if toggle (DD) is
spinning behind wall. Install
toggles (DD) in each hole of
components before attaching to
wall.
DD CC
