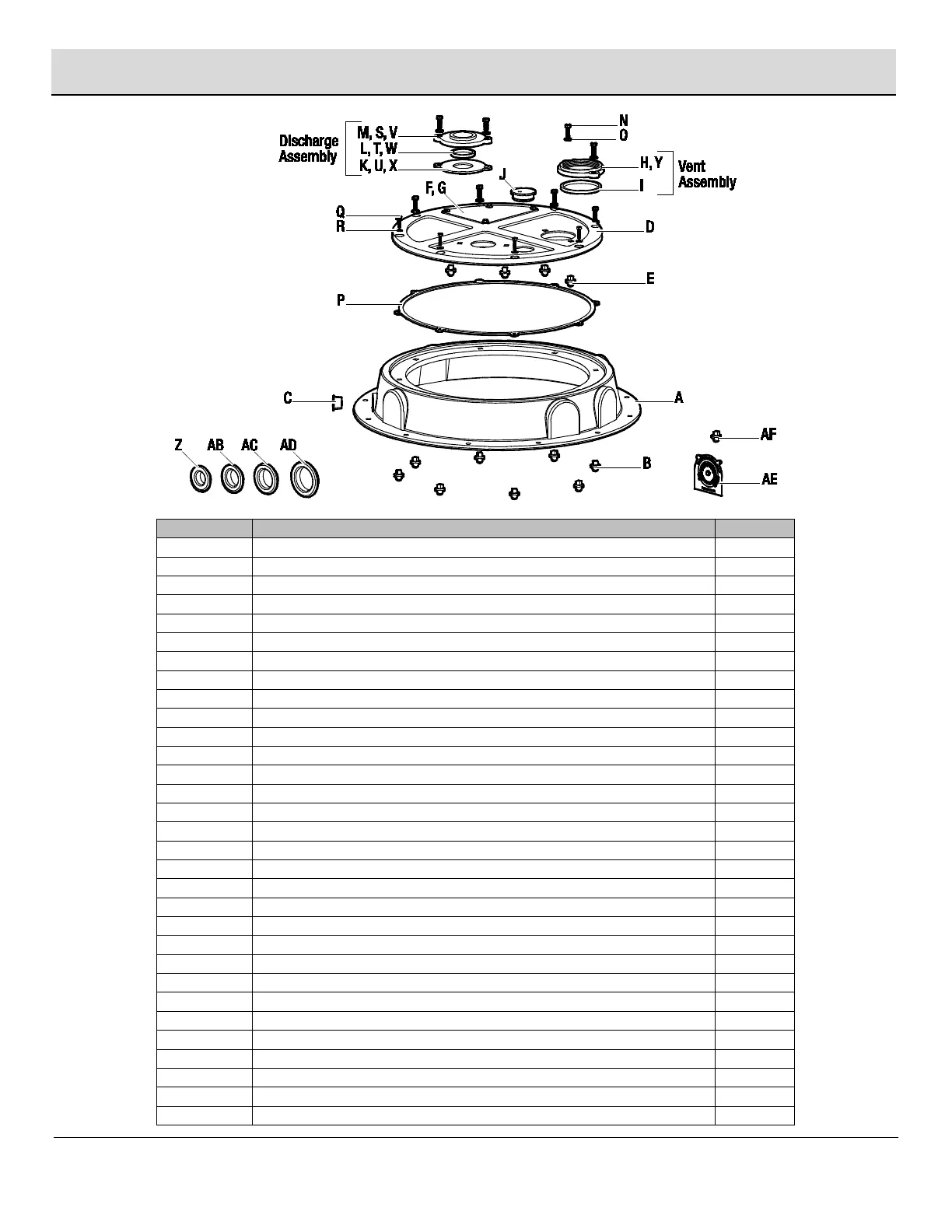

Pre-Installation (continued)
Part
Description
Quantity
A
Cover riser
1
B
1/4-20 Nylon enclosed nut (Preassembled to cover (A))
8
C
Drain plug
1
D
SF16314 2x3 Lid
1
E
1/4-20 Nylon enclosed nut (Preassembled to lid (D))
8
F
INSP314-C Clean inspection plate (Preassembled to lid (D))
1
G
SEAL314 Inspection plate seal (Preassembled to lid (D))
1
H
3 in. Plastic vent threaded flange (Preassembled to lid (D))
1
I
3 in. Discharge and vent O-ring (Preassembled to lid (D))
1
J
2 in. One-hole cord grommet (Preassembled to lid (D))
1
K
1.5 in. Reducer plate (Preassembled to lid (D))
1
L
1.5 in. Discharge O-ring (Preassembled to lid (D))
1
M
1.5 in. Plastic discharge flange (Preassembled to lid (D))
1
N
1/4-20 x 1 HHC-SS (Preassembled to lid (D))
8
O
1/4 in. Flat washer SS (Preassembled to lid (D))
8
P
SEAL 18-8 Cover seal
1
Q
1/4-20 x 1 HHC-SS
8
R
1/4 in. Flat washer
8
S
1.25 in. Plastic discharge flange
1
T
1.25 in. Discharge O-ring
1
U
1.25 in. Reducer plate
1
V
2 in. Discharge flange
1
W
2 in. Discharge O-ring
1
X
Reducer plate blank
1
Y
2 in. Plastic threaded vent flange
1
Z
E100H Rubber hub for 1 in. pipe
1
AB
E125H Rubber hub for 1-1/4 in. pipe
1
AC
E150H Rubber hub for 1-1/2 in. pipe
1
AD
E200H Rubber for 2 in. pipe
1
AE
Drill locator
1
AF
Extra 1/4-20 Nylon enclosed nuts
4
