Rev. 03/08/04
775-9203A
4
PLEASE REVIEW ALL WARNING INSTRUCTIONS PRIOR TO OPERATION. SAVE THIS MANUAL FOR FUTURE REFERENCE.

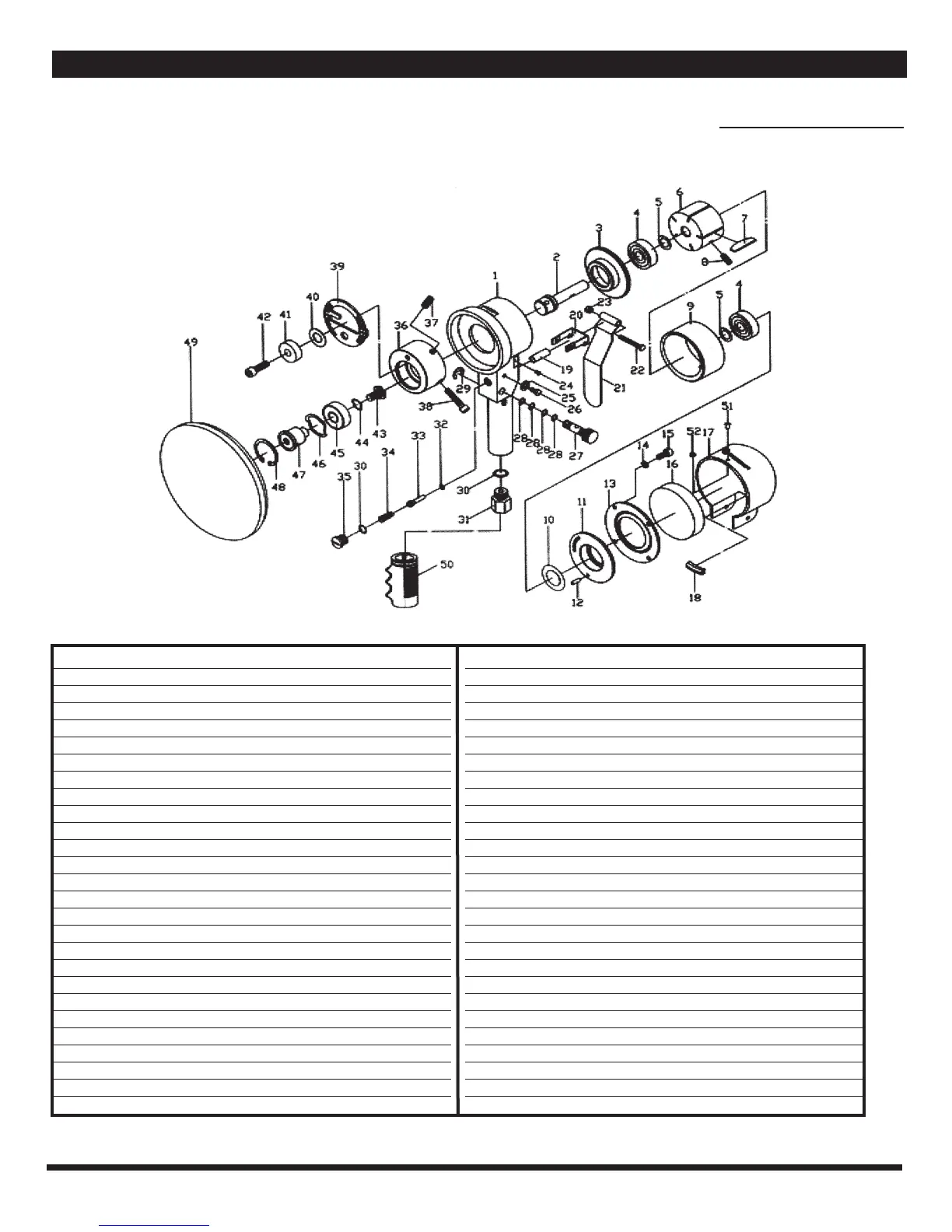

INSTRUCTION MANUAL & PARTS BREAKDOWN
Ref. # Item # DESCRIPTION QTY.
1 RS203A01 Housing 1
2 RS203A02 Work Spindle 1
3 RS203A03 Front Plate 1
4 RS29120 Bearing 2
5 RS203A05 Washer 2
6 RS203A06 Rotor 1
7 RS203A07 Rotor Blade 5
8 RS203A08 Lock Nut 1
9 RS203A09 Cylinder 1
10 RS203A10 Washer 1
11 RS203A11 End Plate 1
12 RS203A12 Pin 1
13 RS203A13 Exhaust Cover 1
14 RS203A14 Washer 4
15 RS203A15 Screw 4
16 RS203A16 Sponge 1
17 RS203A17 End Cover (Includes #s 51,52) 1
18 RS203A18 Cotton 1
19 RS203A19 Valve Bushing 1
20 RS203A20 Bracket 1
21 RS203A21 Trigger 1
22 RS203A22 Trigger Screw 1
23 RS203A23 Screw 1
24 RS203A24 Screw 2
25 RS203A25 Washer 1
26 RS203A26 Screw 2
Ref. # Item # DESCRIPTION QTY.
27 RS203A27 Air Regulator 1
28 RS203A28 O-Ring 4
29 RS203A29 Retainer Ring 1
30 RS203A30 O-Ring 2
31 RS203A31 Air Inlet 1
32 RS203A32 O-Ring 1
33 RS203A33 Valve Stem 1
34 RS203A34 Spring 1
35 RS203A35 Valve Plug 1
36 RS203A36 Balancer 1
37 RS203A37 Screw 1
38 RS203A38 Screw 1
39 RS203A39 Drive Cover 1
40 RS203A40 Washer 1
41 RS203A41 Spindle Lock 1
42 RS203A42 Screw 1
43 RS203A43 Screw 1
44 RS203A44 Washer 1
45 RS21118 Bearing 1
46 RS203A46 Washer 1
47 RS203A47 Drive Spindle 1
48 RS203A48 Retainer Ring 1
49 RS203A49 6" Pad 1
50 RS203A50 Rubber Grip 1
51 Rivet (Included in #17)
52 Bushing (Included in #17)
775-9203A
6" DAQ Sander
