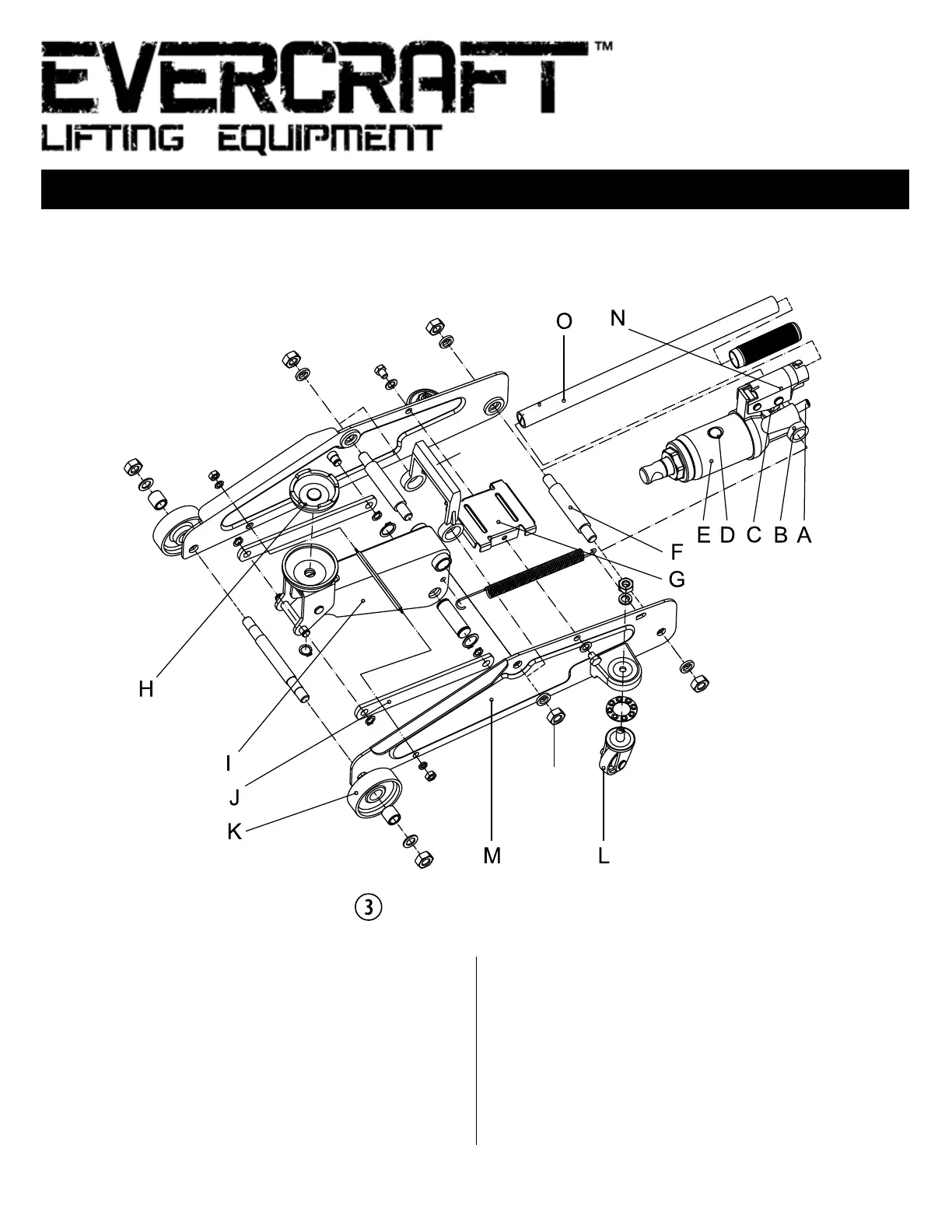

Evercraft 776-1005 - Parts List and Drawing; Exploded View Drawing; Parts Description

776-1005 5 rev. 04/02/20
Ref. No. Part No. Description Qty.
A Release Valve 1
B Base 1
C Pump Piston 1
D Air Vent Valve 1
E Oil Reservoir 1
F Middle Spindle 1
G Cover 1
H Saddle 1
I Lifting Arm 1
Ref. No. Part No. Description Qty.
J Link Rod 2
K RS1005K Front Wheel (incl. hardware) 2
L RS1005L Castor (incl. hardware) 2
M Frame 2
N Handle Sleeve 1
O RS1005O Handle w/Grip 1
P Carrying Handle 1
Q Lift Arm Pivot Nut 1
not shown RS7761005PLK Product Label Kit 1
PARTS LIST
AND DRAWING
776-1005
CAPACITY: 2 TON
TROLLEY JACK
Q
P
Only reference numbers identified by part number are available separately.
