Evercraft 776-1006 - Parts List and Drawing

776-1006 5 rev. 03/06/18
Ref. No. Part No. Description Qty.
A Release Valve 1
B Base 1
C Pump Piston 1
D Air Vent Valve 1
E Oil Reservoir 1
F Middle Spindle 1
G Cover 1
H Saddle 1
I Lifting Arm 1
Ref. No. Part No. Description Qty.
J Link Rod 2
K RS1006K Front Wheel (incl. hardware) 2
L RS1006L Rear Swivel Castor (incl. hardware) 2
M Frame 2
N Handle Sleeve 1
O RS1006O Handle w/ Grip 1
P Carrying Handle 1
Q Lift Arm Pivot Nut 1
not shown RS7761006PLK Product Label Kit 1

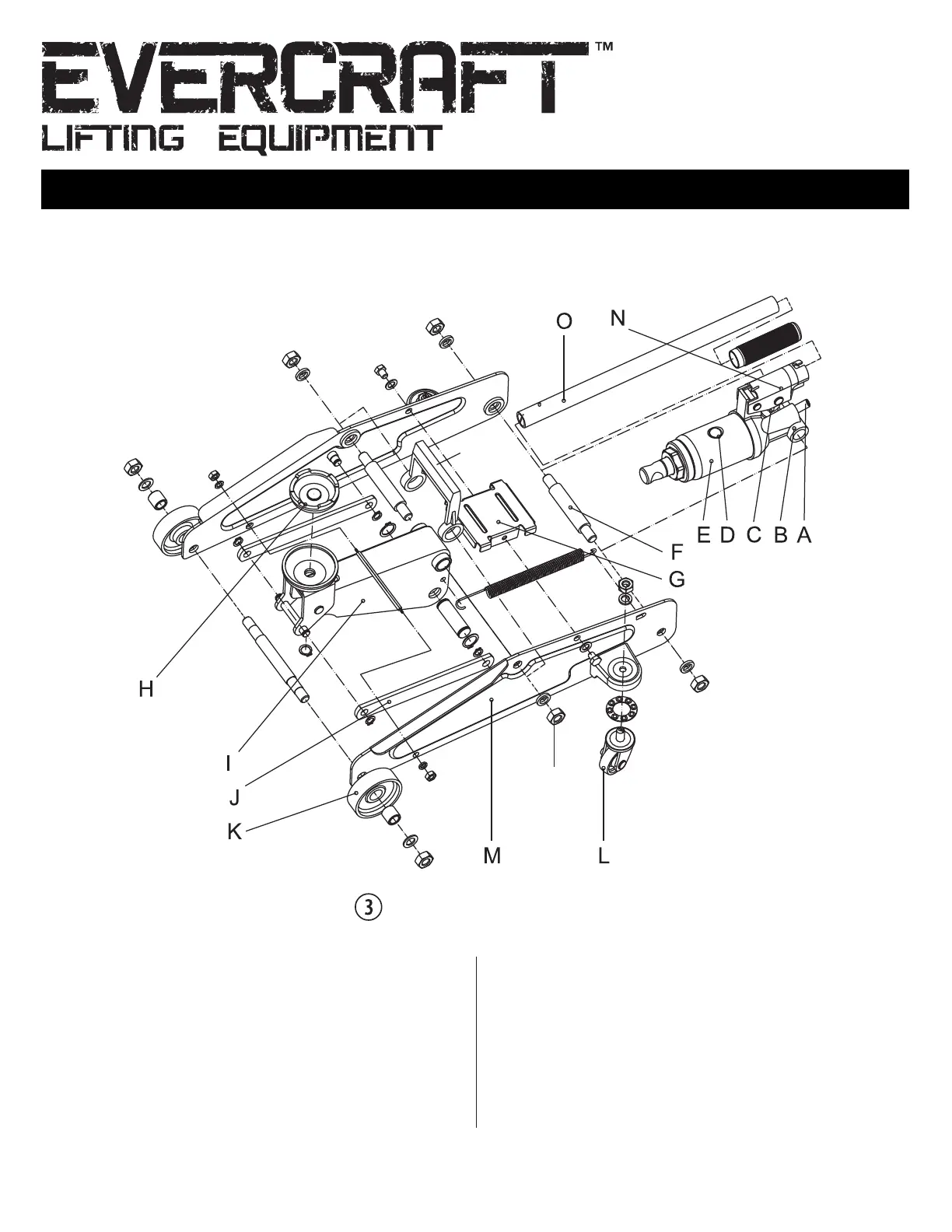

PARTS LIST
AND DRAWING
776-1006
CAPACITY: 2 TON
HIGH LIFT
TROLLEY JACK
Q
P
Only reference numbers identified by part number are available separately.
