Evercraft 776-1007 - Parts List and Drawing

776-1007 5 rev. 03/06/18
Ref. No. Part No. Description Qty.
1 Side Plate 2
2 RS100702 Front Wheel (Including 3&4) 2
3 Washer 2
4 Retaining Ring 2
5 Bolt, Link 1
6 Lift Arm Assembly 1
7 RS100707 Saddle 1
8 Shaft, Arm 1
9 Grease Fitting 1
10 Oil Hole 1
11 Retaining Ring 2
12 Block, Link (Ram) 1
13 Cotter Pin 1
14 Spring 1
15 RS100715 Hydraulic Unit 1
16 Bolt 1
17 Lock Washer 2
18 Torsion Spring 1
19 RS100719 Handle Socket Assembly 1
(Incl. #16, 17 (2), 18-25, 30)
Ref. No. Part No. Description Qty.
20 Handle Bolt 1
21 Hex Nut 1
22 Lock Washer 1
23 Gear, Handle Socket 1
24 Cotter Pin 1
25 Gear Shaft 1
26 Rubber Handle 1
27 Hex Head Screw 1
28 RS100728 Handle, Lower (Incl. #27) 1
29 RS100729 Handle, Upper (Incl. #26) 1
30 Bolt 1
31 Split Lock Washer 2
32 Socket Head Cap Screw 2
33 RS100733 Rear Caster Assembly (Incl. #36) 2
34 Hex Nut 2
35 Lock Washer 2
36 Locknut 2
not shown RS7761007PLK Product Label Kit 1
Only Ref. No.'s identified by Part No. are available separately.

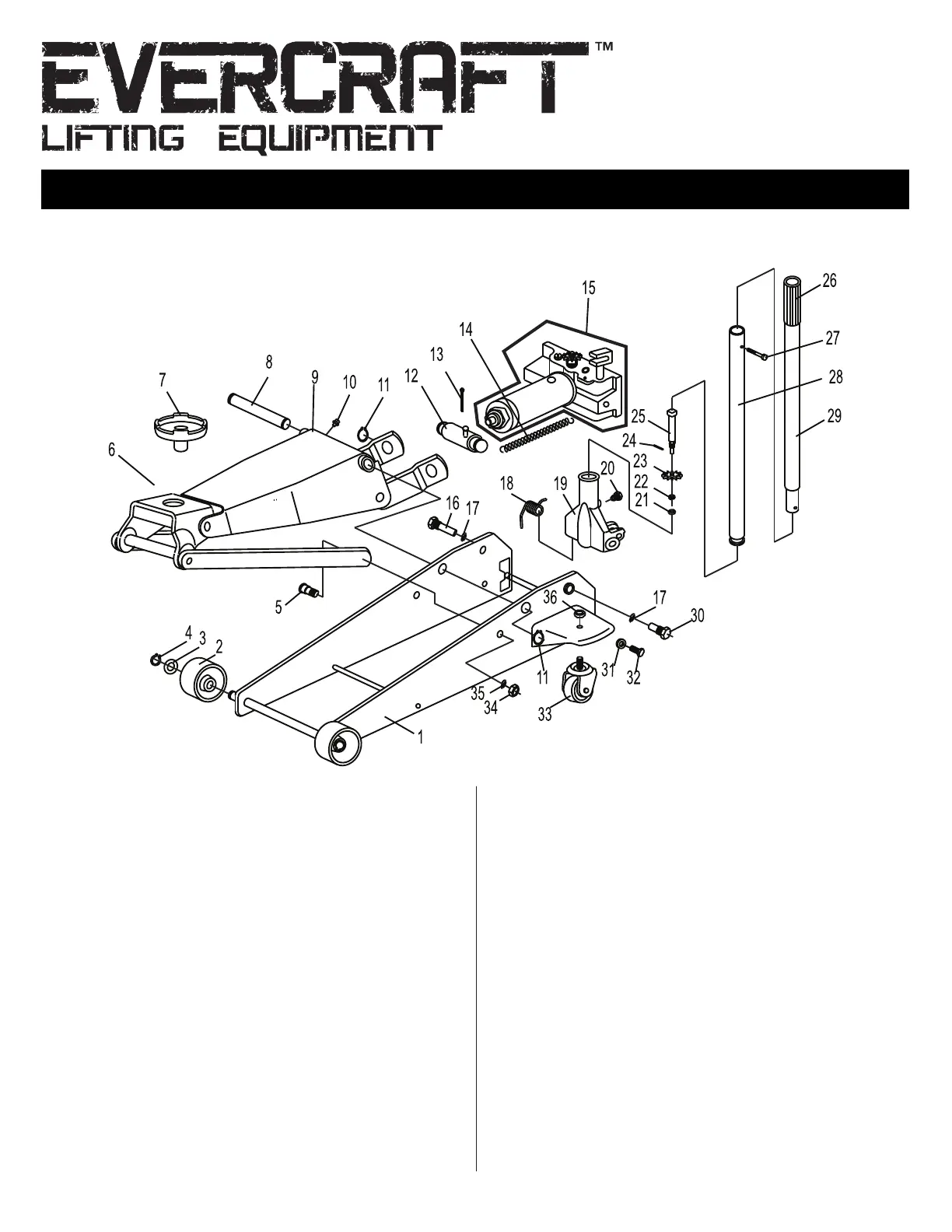

PARTS LIST AND DRAWING
776-1007
CAPACITY: 2.25 TON
COMPACT SERVICE
JACK
