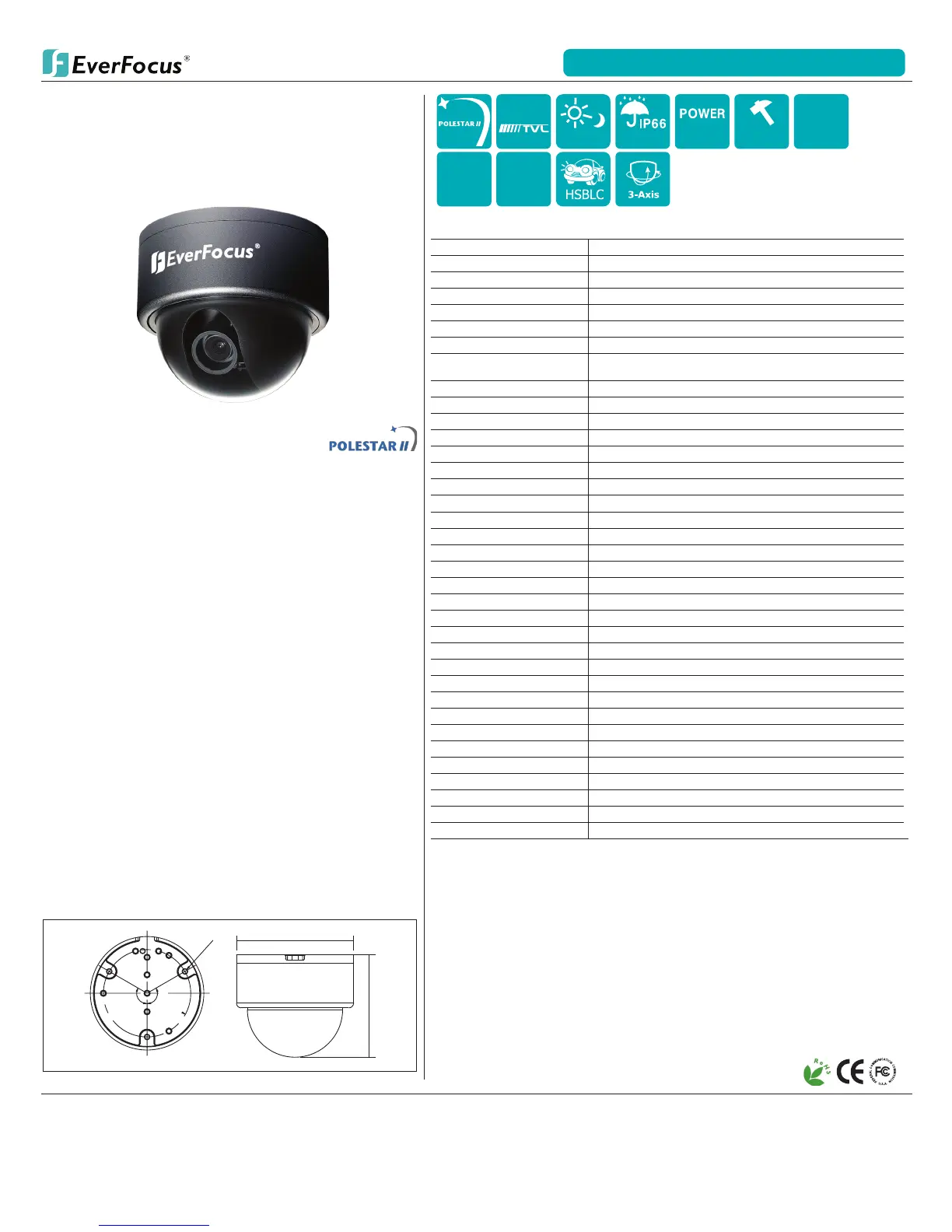

EverFocus ED610 - Page 3

www.everfocus.com
Ordering Info
Dimensions: mm/in
2012 EverFocus Product Catalog Vs 1.1 - Models vary in different countries. Visit www.everfocus.com and select your country for additional ordering and specication information.
EverFocus is not responsible for typographical errors. Product specications are subject to change without notice.
Analog Solutions
Outdoor True Day/Night 3-Axis Vandal
Dome Camera
ED610
ED610/MVB: Day/Night Mini Dome, Silver, 560 TVL, 2.8-10mm
ED610/MVBB: Day/Night Mini Dome, Black, 560 TVL, 2.8-10mm
ED610/MVBW: Day/Night Mini Dome, White, 560 TVL, 2.8-10mm
ED610/MV2: Day/Night Mini Dome, Silver, 560 TVL, 9-22mm
Features
• High Resolution Technology with 560 TVL!
• True Day/Night superior image
• Vari-focal lens 2.8-10mm and 9-22mm
• Provides 3D-Noise Reduction to improve picture
clarity while enabling DVRs to improve disk storage
utilization
• Easy to use OSD setup menu with local controls or
RS-485 remote control
• Vandal Resistant construction able to withstand
intentional damage
• Digital Wide Dynamic Range expansion to deliever
properly exposed images despite bright light
sources, deep shadows and/or unbalanced lighting
in the same scene
• The exible angle viewing with its 3 Axis rotation
design allows wall or ceiling mounting
• IP66 weather resistant rating means that it will
withstand the elements of outdoor conditions
Ø 5.14-3
Ø 94.7
120°
120°
123 mm / 4.8”
107.8 mm / 4.2”
560
True D/N
Weather
Resistant
12VDC/
24VAC
Vandal
Resistant
OSD
WDR
DIGITAL
3D
Noise
Reduction
Specications
Part Number ED610
Pickup Device 1/3” Sony Super HAD CCD II
Video Format NTSC or Pal
Picture Elements 768 x 494 (NTSC) | 768 x 494 (NTSC)
Scanning System 2:1 Interlace
Scanning Frequency 525 TV lines, 60 elds/sec | 525 TV lines, 60 elds/sec
Horizontal Resolution 560 TVL
Sensitivity
0.05 Lux/F=1.2 (AGC ON); 0.0002 Lux/F=1.2 (SENS-UP
256x)
S/N Ratio Over 52dB (AGC off)
Electronic Shutter 1/60s~1/100,000s
Video Output BNC 1.0Vp-p 75Ω
Local Video Output Yes (cable provided)
Gamma Correction 0.45
Lens Type 2.8-10mm or 9~22mm
Lens Options Vari-focal lens, Auto Iris
BLC OFF/BLC/HSBLC Selectable
Gain Control Low, Middle, High Selectable
White Balance ATW, AWB, AWC, Manual, Indoor, Outdoor Selectable
Sync Mode Internal, Line Lock external sync.
Day/Night Auto/ Color/BW/EXT
OSD Menu Yes
Digital Noise Reduction Off/On switchable
Wide Dynamic Range Outdoor/Indoor
Digital Slow Shutter Sens-Up up to 256x
Mirror Off/Mirror/V-ip/Rotate Selectable
Digital Zoom On/Off Switchable up to 32x
Motion Detection Off/On for 4 zones
Privacy Mask Off/On for 8 selectable zones
Power Source 12VDC/24VAC
Power Consumption 12VDC: 3W max. 24VAC: 3W max
Operating Temp 14°F~122°F | -10°C~50°C
Humidity 20-80%
Dimensions (in | mm) 4.8” W x 4.2”H | 123 x 107.8mm
Weight (lbs | gm) 1.6lbs | 725.7g
Vandal Resistant
Certications CE/FCC
