Outdoor True Day/Night Bullet Camera

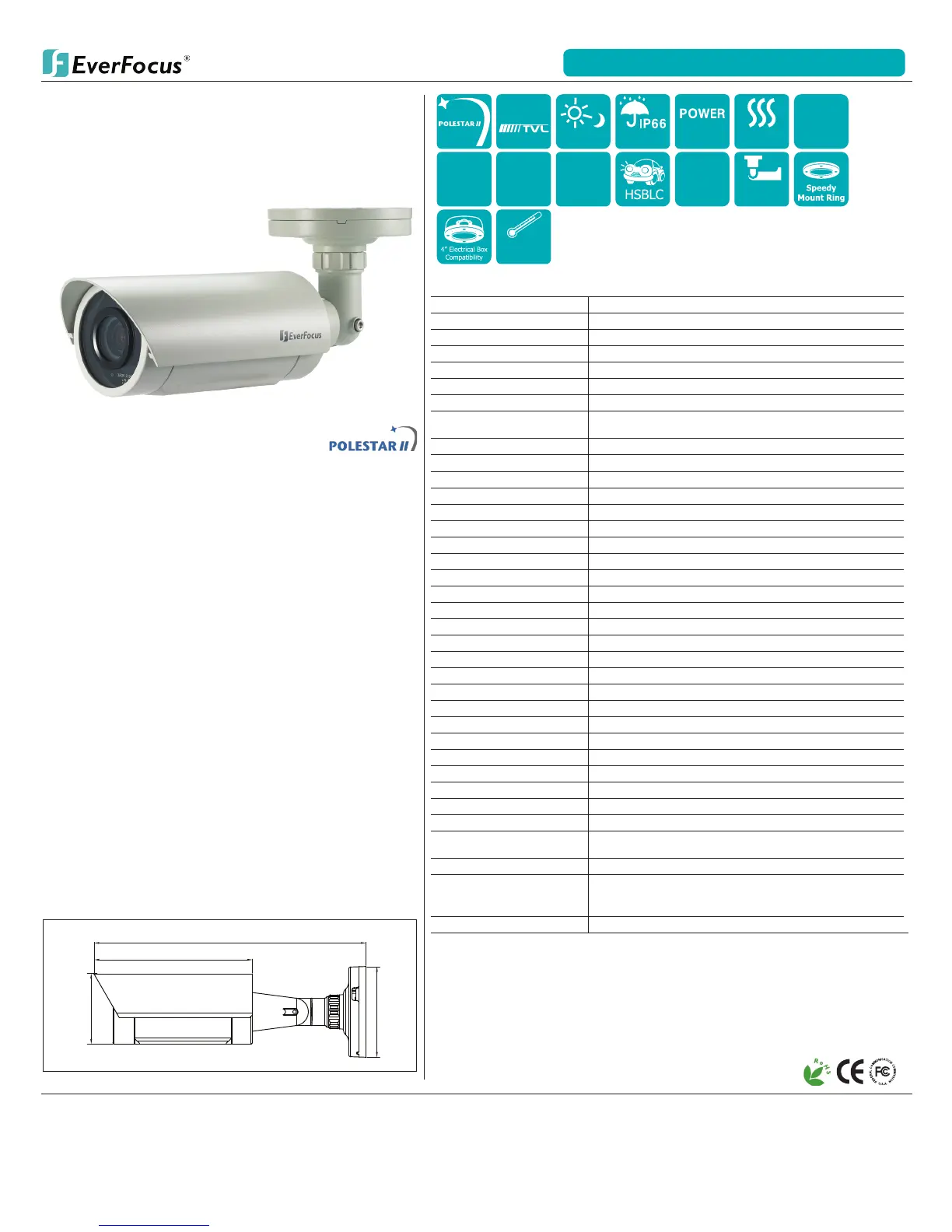

EZ610
EZ610/MVB: Day/Night Bullet, Beige, 560 TVL, 2.8-10mm
Features
• High Resolution Technology with 560 TVL!
• True Day/Night superior image
• 2.8-10mm Vari-focal DC auto iris
• Provides 3D-Noise Reduction to improve picture
clarity while enabling DVRs to improve disk storage
utilization
• Full suite of OSD menu options controlled from the
built-in joystick
• Flexible moutning and positioning - speedy-mount
ring ts 4” round electrical box, or remove base to
mate with 1” conduit
• E-Z Lock ring at the base is designed with easy to
grip tabs to rmly clamp the camera in place, plus a
set screw for added security
• Digital Wide Dynamic Range expansion to deliever
properly exposed images despite bright light
sources, deep shadows and/or unbalanced lighting
in the same scene
• IP66 weather resistant rating means that it will
withstand the elements of outdoor conditions
316.2 mm / 12.5”
184.2 mm / 7.25”
105.5 mm / 4.2”
82.5 mm / 3.25”
560
True D/N
Weather
Resistant
12VDC/
24VAC
Heater
Motorized
Lens
OSD
WDR
DIGITAL
3D
Noise
Reduction
RS
485
Cable
Management
Solution
Extreme Cold
-40
º
F
Specications
Part Number EZ610
Pickup Device 1/3” Sony Super HAD II CCD
Video Format NTSC or Pal (by model only)
Picture Elements 768 x494 (NTSC) | 768 x494 (NTSC)
Scanning System 2:1 Interlace
Scanning Frequency 525 TV lines, 60 elds/sec | 525 TV lines, 60 elds/sec
Horizontal Resolution 560 TVL
Sensitivity
0.05 Lux/F=1.2 (AGC ON); 0.0002 Lux/F=1.2 (SENS-UP
256x)
S/N Ratio Over 48dB (AGC off)
Electronic Shutter 1/60s~1/100,000s
Video Output BNC 1.0Vp-p 75Ω
Local Video Output Yes (cable provided)
Gamma Correction 0.45
Lens Type 2.8-10mm
Lens Options Vari Focal, DC Iris Lens
BLC OFF/BLC/HSBLC Selectable
Gain Control Low, Middle, High Selectable
White Balance ATW/ AWB/ AWC/ Manual/ Indoor/ Outdoor Selectable
Sync Mode Internal, Line Lock (24VAC only)
Day/Night Auto/ Color/BW/EXT
OSD Menu Multiple Functions
Digital Noise Reduction Off/On switchable
Wide Dynamic Range Off/Outdoor/Indoor
Digital Slow Shutter Sens-Up up to 256x
Mirror Off/Mirror/V-ip/Rotate Selectable
Digital Zoom Off/On selectable up to 32x
Motion Detection Off/On for 4 selectable zones
Privacy Mask Off/On for 8 selectable zones
RS-485 Control input for menu/cong
Power Source 12VDC/24VAC
Power Consumption 12VDC: 2.5W (5W w/heater) 24VAC: 3W / 6W with heater
Operating Temp -40°F~122°F | -40°C~50°C
Dimensions (in | mm)
L x W: 12.49” x 4.2”; Base: 4.15” diameter | L x W: 316.2 x
105.5mm; 105.1mm diameter
Weight (lbs | gm) 2.275 lbs | 1250g
Mount
Speedy mount ring mates with 4” round electrical box;
base swivel is 1” NPT - remove base plate for coupling to
standard conduit ttings
Certications CE/FCC
