Analog Solutions

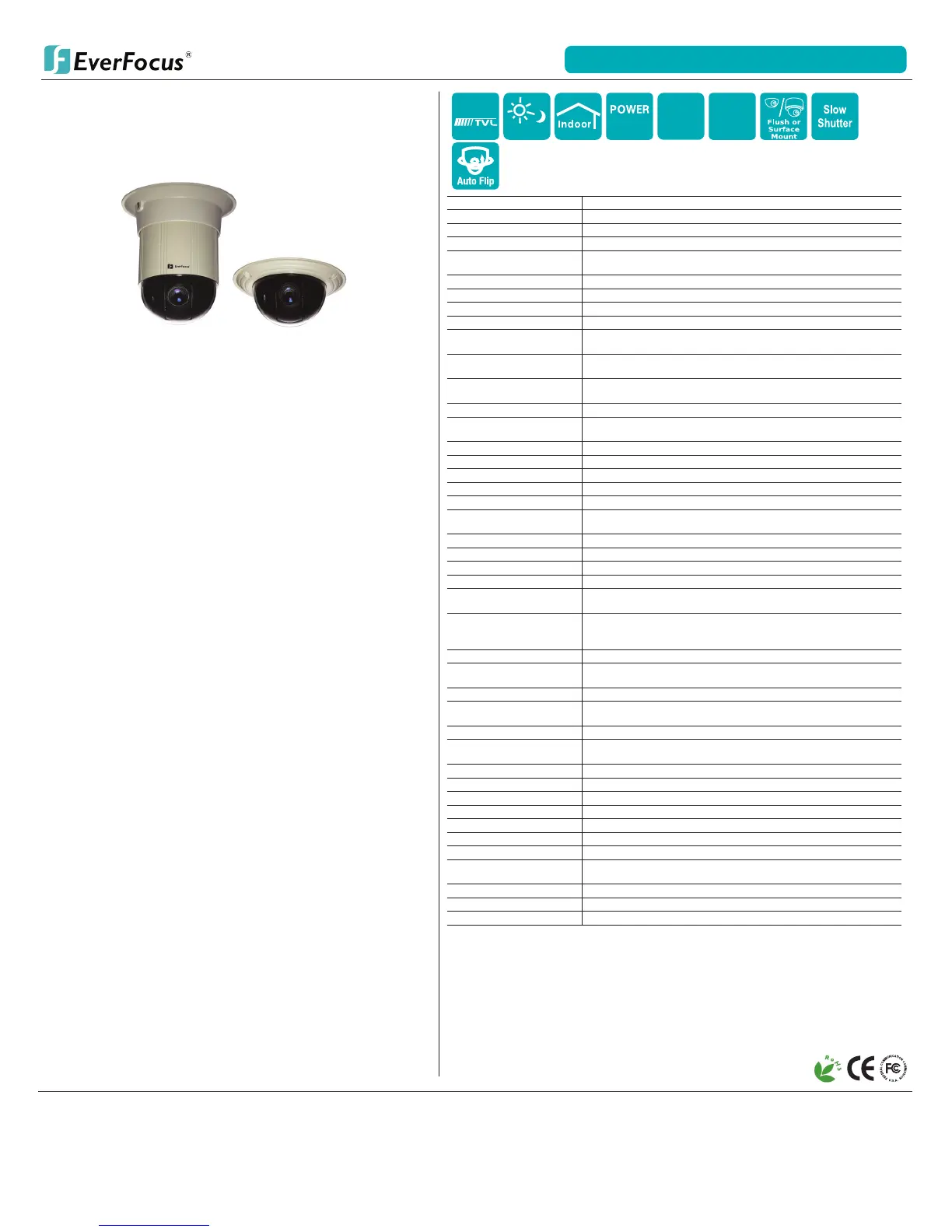

EPTZ100
Indoor Day/Night Mini PTZ
Features
• 520 TVL of horizontal resolution
• IRC + b/w switching manual/automatic
• Capture images in almost complete darkness with
super low sensitivity of 0.005 Lux
• Digital Noise Reduction Feature
• Digital Slow Shutter (DSS) up to 128x
• High speed pan/tilt (up to 240°/second)
• 3 alarm input, 1 alarm output relay
• “Snap & lock” easy installation
• Compact size for discreet surveillance
• Includes recessed ceiling mount and ceiling surface
mount
EPTZ100: Indoor 10x PTZ
EPTZ100-PS: Powersupply for EPTZ100
50
520
Day Night
24VAC
Motorized
Lens
OSD
Part Number EPTZ100
Pickup Device 1/4” Sony Super HAD CCD
Video Format NTSC or PAL
Horizontal Resolution 520 TVL (Color Mode), 570 TVL (B/W Mode)
Sensitivity
0.7 Lux/F=1.8 (50 IRE - color mode), 0.02 Lux/F=1.8 (50
IRE - b.w mode), 0.005 Lux (DSS x 128)
S/N Ratio Over 50 dB
Video Output BNC 1.0Vp-p (sync. Negative)
Electronic Shutter 1/60 (1/50) - 1/120,000 automatic (ESC) or manual
Digital Slow Shutter Up to 128x
Shutter Selection
1/60 ~ 1/120,000 NTSC, 1/50 ~ 1/120,000 PAL, Automatice
(ESC) or Manual
Lens Type
f=3.8mm(wide) ~ f=38mm (tele), f=1.6mm(wide) ~
f=2.8mm(tele)
Zoom Ratio
10x Optical Autofocus Zoom (+10x digital zoom, max.
100x)
True Day/Night IRC + b/w switching manual/automatic
Backlight
Compensation
Adjustable 3 steps/Off
AGC Adjustable 3 steps/ Off
White Balance Auto AWC/ATW mode, manual
Privacy Zone Masking 4 zones, free adjustable
Sync Mode Internal
Focus Control Auto, one-push AF, manual
Horizontal Rotation
Range
360° unlimited rotation
Tilt Rotation Range 90° with auto ip
Auto Pan 2 points scanning: adjustable speeds & end stops
Auto Pan Speed 2, 6, 12, 30, 60, 120°/ second
Preset Position 64
Running to Position
Speed
up to 240° / sec
Tour
Preset tours 1 tour w/ 16 positions, 4 group tours w/ 4
positions each, 1 tour with individual setup (up to 32
positions)
Tour Point Per Group 1 tour with 16 positions, 4 group tours with 4 positions each
Pattern Position
Accuracy
4x 10 min patterns, up to 800 movements/600s each
Alarm 3 inputs, 1 output (with tour/position auto triggering
Built-in Menu
Functions
Yes, OSD
Communication RS-485 simplex 2 wire
Communication
Speed
2400/4800/9600bps
Built-in Protocols EverFocus/Pelco-P/Pelco-D (setup by DIP switch
Edit Address Yes (through DIP switch)
Speed Dome Address 1 ~255 (setup by DIP switch)
Manual Pan/Tilt Speed 0.5°~240°/ sec
Postion Accuracy 0.225°
Power Source 24VAC +/- 10%
Power Consumption 19W max. (w/ PTZ motor), 12W max (w/out PTZ motor)
Operating
Temperature
0°C ~ +40°C / 32°F ~ 104°F ≤ 85%
Dimensions 8” x 4.5” (with ceiling mount adapter)
Weight 3.3 lbs (camera module incl. adapter board)
Certication CE, FCC
