Ordering Info
Dimensions: mm/in
2012 EverFocus Product Catalog Vs 1.1 - Models vary in different countries. Visit www.everfocus.com and select your country for additional ordering and specication information.
EverFocus is not responsible for typographical errors. Product specications are subject to change without notice.
Analog Solutions

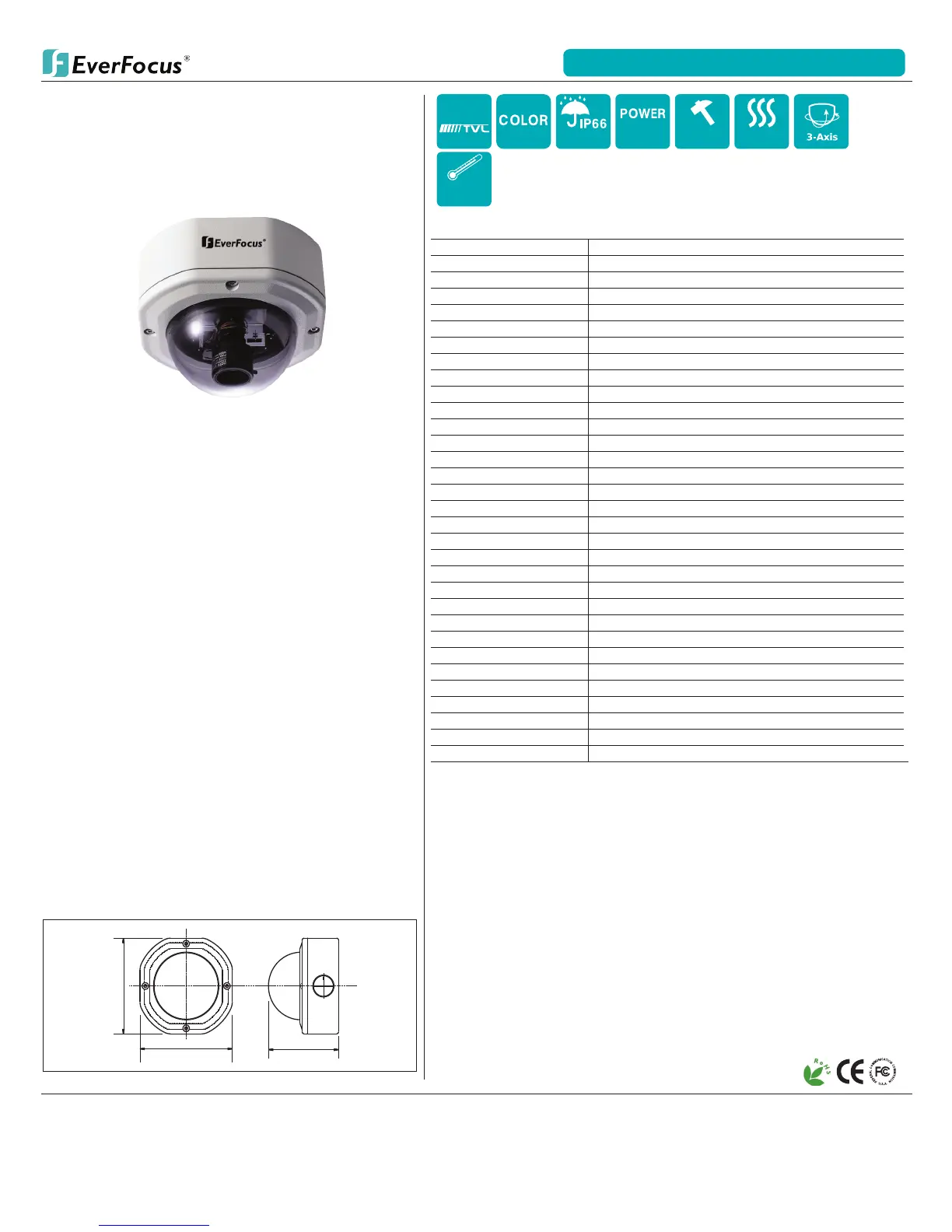

Outdoor Day/Night IR 3-Axis Vandal Dome
Camera
EHD525EX
EHD525/EX-3: Day/Night Dome, Beige, 560 TVL, 2.9-10mm
EHD525/EX-2: EHD525/EX-2: Day/Night Dome, Beige, 560 TVL, 9-22mm
Features
• High Resolution Technology with 560 TVL!
• True Day/Night superior image
• Built-in Varifocal 9-22mm or 2.9-10mm
• Vandal Resistant construction able to withstand
intentional damage
• The exible angle viewing with its 3 Axis rotation
design allows wall or ceiling mounting
• IP66 weather resistant rating means that it will
withstand the elements of outdoor conditions
130 mm / 5.1”
130 mm / 5.1”
98.8 mm / 3.9”
560
Weather
Resistant
12VDC/
24VAC
Vandal
Resistant
Heater
Extreme Cold
-40
º
F
Specications
Part Number EHD525EX
Pickup Device 1/3” Sony ExView Super HAD CCD
Video Format NTSC or Pal
Picture Elements 768 x 494 (NTSC) | 768 x 494 (NTSC)
Scanning System 2:1 Interlace
Scanning Frequency 525 TV lines, 60 elds/sec | 625 TV lines, 50 elds/sec
Horizontal Resolution 560 TVL
Sensitivity 0.1 Lux /F=1.2
S/N Ratio Over 50dB (AGC off)
Electronic Shutter 1/60s~1/100,000s
Video Output BNC 1.0Vp-p 75Ω
Local Video Output Local test output
Gamma Correction 0.45
Lens Type F=2.9-10mm, F=1.2
Lens Options Vari-focal lens, Auto Iris
Flickerless On/Off switch
BLC On/Off switch
Gain Control On/Off switch
White Balance Yes
Sync Mode Internal, Line Lock
Day/Night Day/Night with IR cut removable module
Environmental IP66 Weather Resistant
Power Source 12VDC/24VAC
Power Consumption 12VDC: 11.5W max 24VAC: 20.5W max
Operating Temp -40°F~122°F | -40°C~50°C
Humidity 20-80%
Dimensions (in | mm) 5.1”W x 3.9”H x 5.1”D | 130W x 98.8H x 130 Odmm
Weight (lbs | gm) 3.7lbs | 1678.3g
Vandal Resistant
Heater Yes
Mount Mount Bracket Included
Certications CE/FCC
