EZ930F/9 5 0 F eZ.HD Outdoor IR Bullet Camera
9

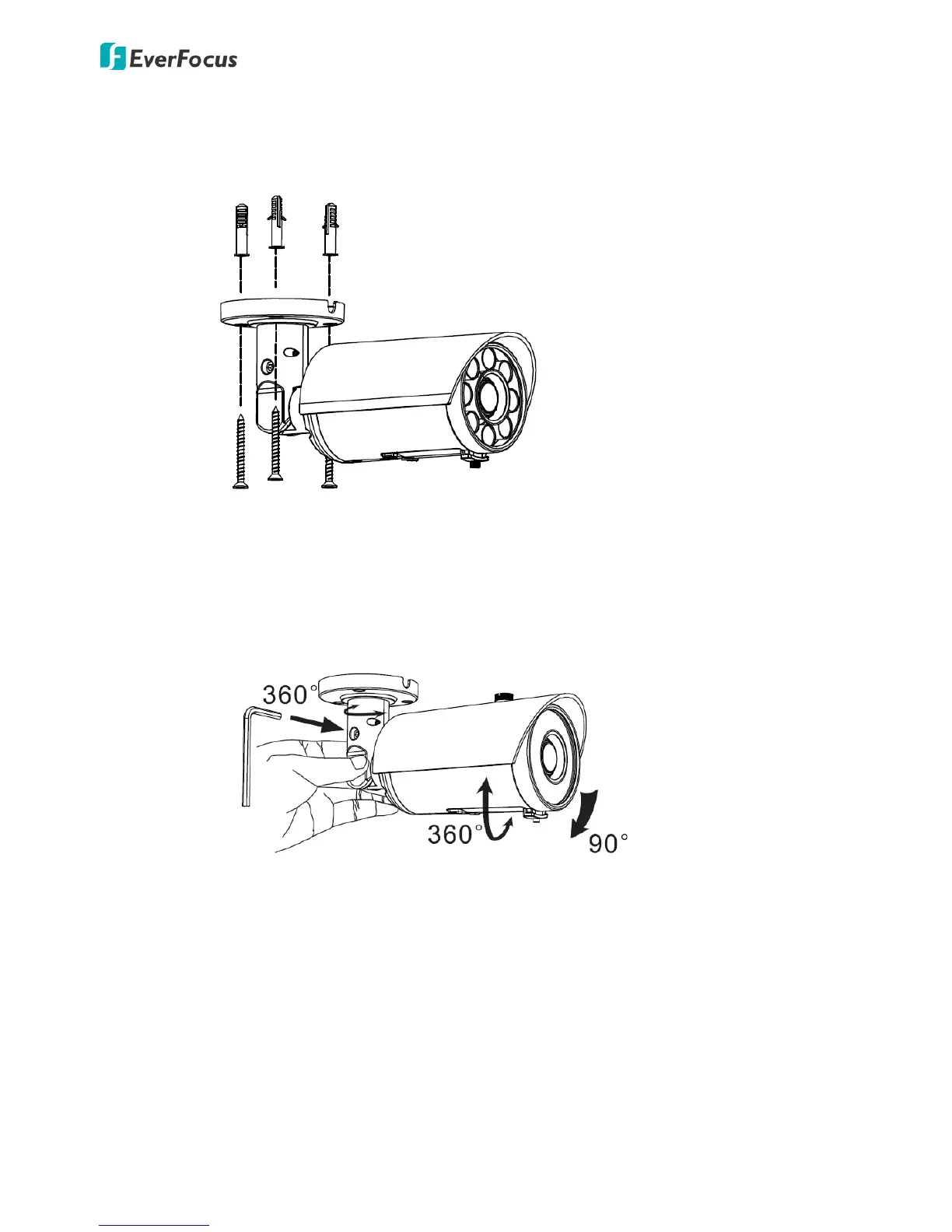

2. Drill three holes and insert the supplied Plastic Anchors into the holes, then screw the
camera to the ceiling or wall by using the supplied Screws.
3. Loosen the screw on the bracket with Hexagon Wrench, and adjust camera angles by
tilting or rotating the camera. Then fasten the bracket with the Hexagon Wrench
(Note: The bracket base can be rotated by 360
o
, the housing body also can be rotated by
360
o
and tilted by 90
o
).
To Next Page
