INSTALLATION
25
WALL BRACKET
It is a requirement of AS 5601 and AS/NZS 5601.1 to secure the water heater
to the wall. The top of the unit is to be secured to the wall using the wall bracket
and M6.5 masonry anchor provided, or other suitable fastener.
Note: It is necessary to fix the bracket to the wall prior to making the water and
gas connections to the water heater.

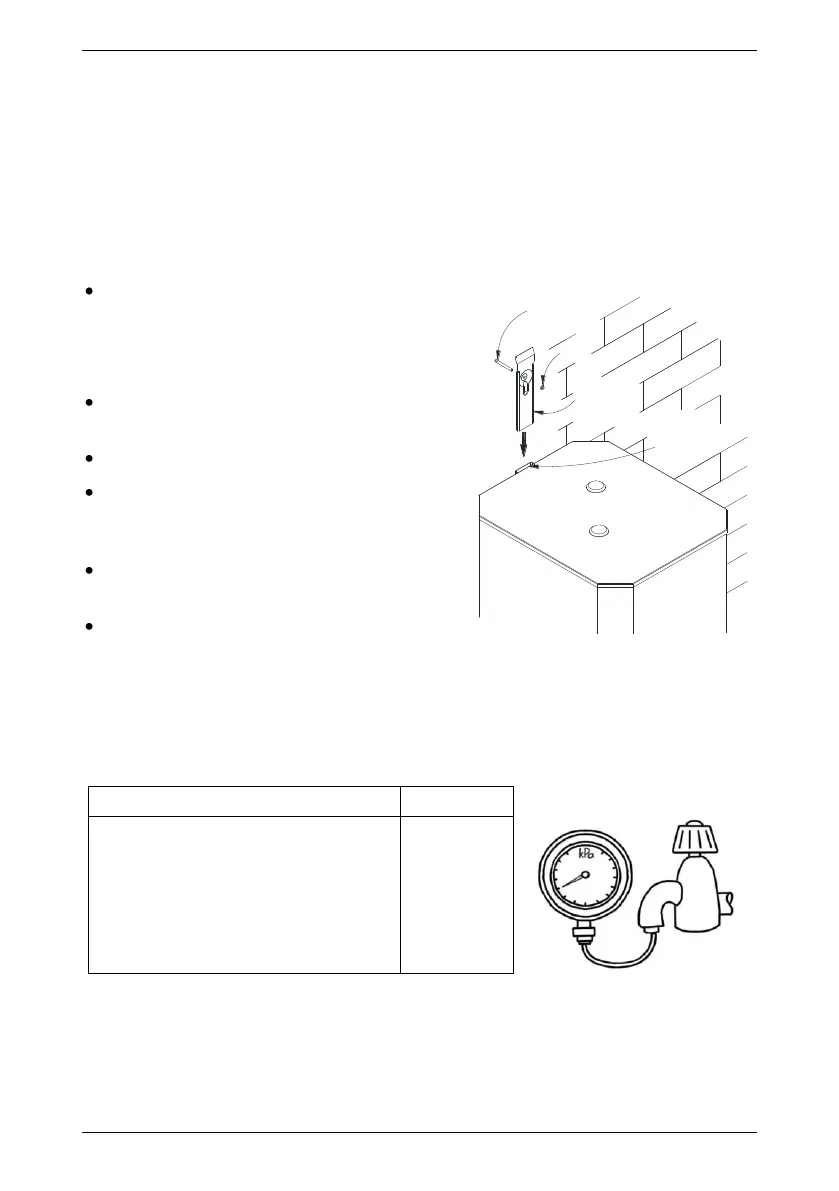

To fit the wall bracket:
Slide the wall bracket into the formed
slot at the top rear of the water heater.
Ensure the angled profile is facing the
wall.
Mark the wall where the hole is to be
drilled.
Remove the bracket.
Drill the hole to receive the
M6.5 masonry anchor or other suitable
fastener.
Replace the wall bracket with the
angled profile facing the wall.
Secure the wall bracket to the wall.
MAINS WATER SUPPLY
Where the mains water supply pressure exceeds that shown in the table below,
an approved pressure limiting valve is required and should be fitted as shown
in the installation diagram (refer to diagram on page 32).
Model
270
Relief valve setting
1400 kPa
Expansion control valve setting *
1200 kPa
Max. mains supply pressure
With expansion control valve
960 kPa
Without expansion control valve
1120 kPa
* Expansion control valve not supplied with the water heater.
EVERHOT 647270
Gas water heater wall bracket.
masonry
anchor
wall
bracket
bracket
slot
nut
