Connect the BLACK lead (battery clip) from the charger to the Negative (-)
battery terminal.
Connect the RED lead (battery clip) from the charger to the vehicle's chassis
away from the fuel line or moving parts.
11

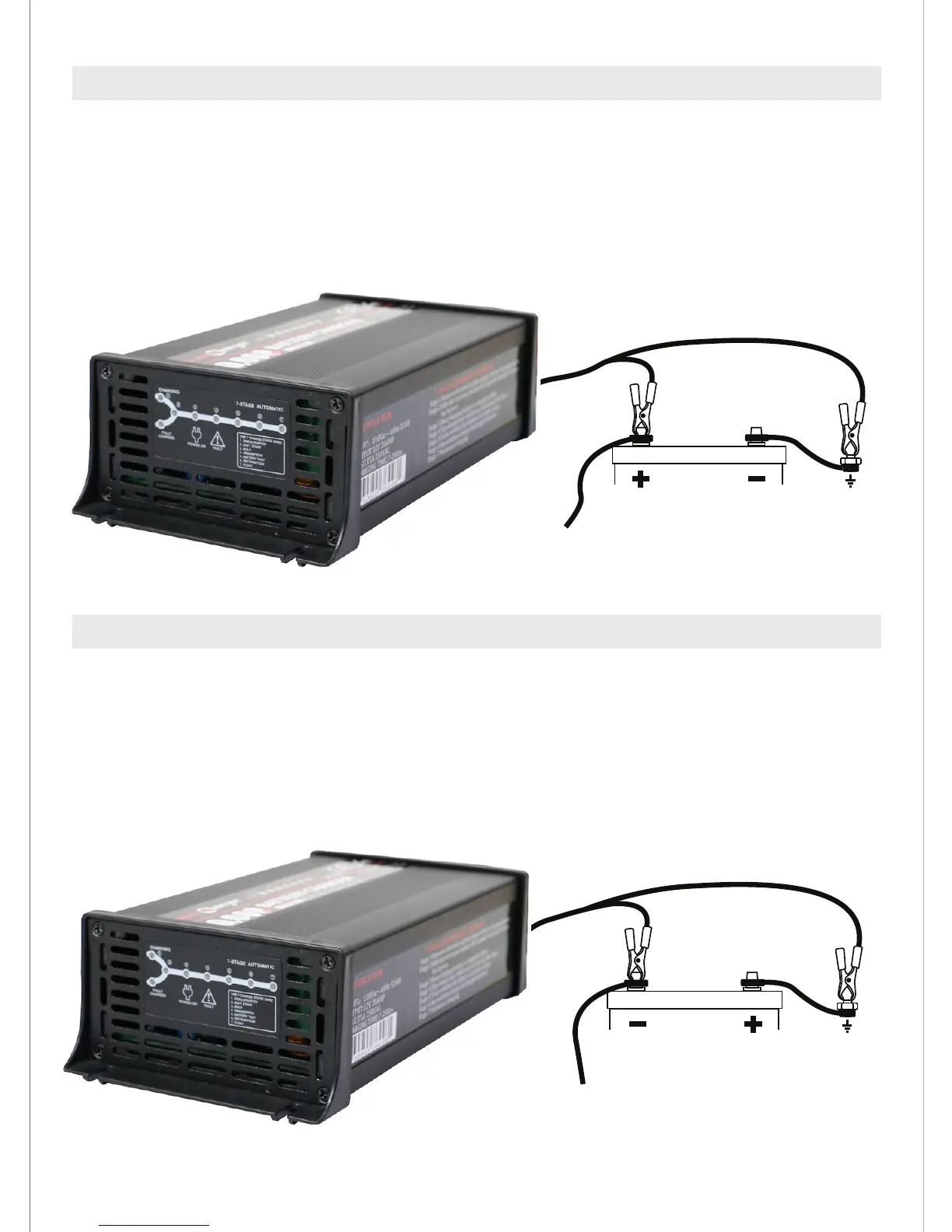

Connection in vehicle
(negatively earthed)
BLACK
RED
Connection in vehicle
(positively earthed)
BLACK
RED
Connect the RED lead (battery clip) from the charger to the Positive (+) battery
terminal.
Connect the BLACK lead (battery clip) from the charger to the vehicle's chassis
away from the fuel line or moving parts
11. Negatively earthed (most vehicles)
12. Positively earthed
