Page 7
HIGH FIDELITY MUSIC STREAMER

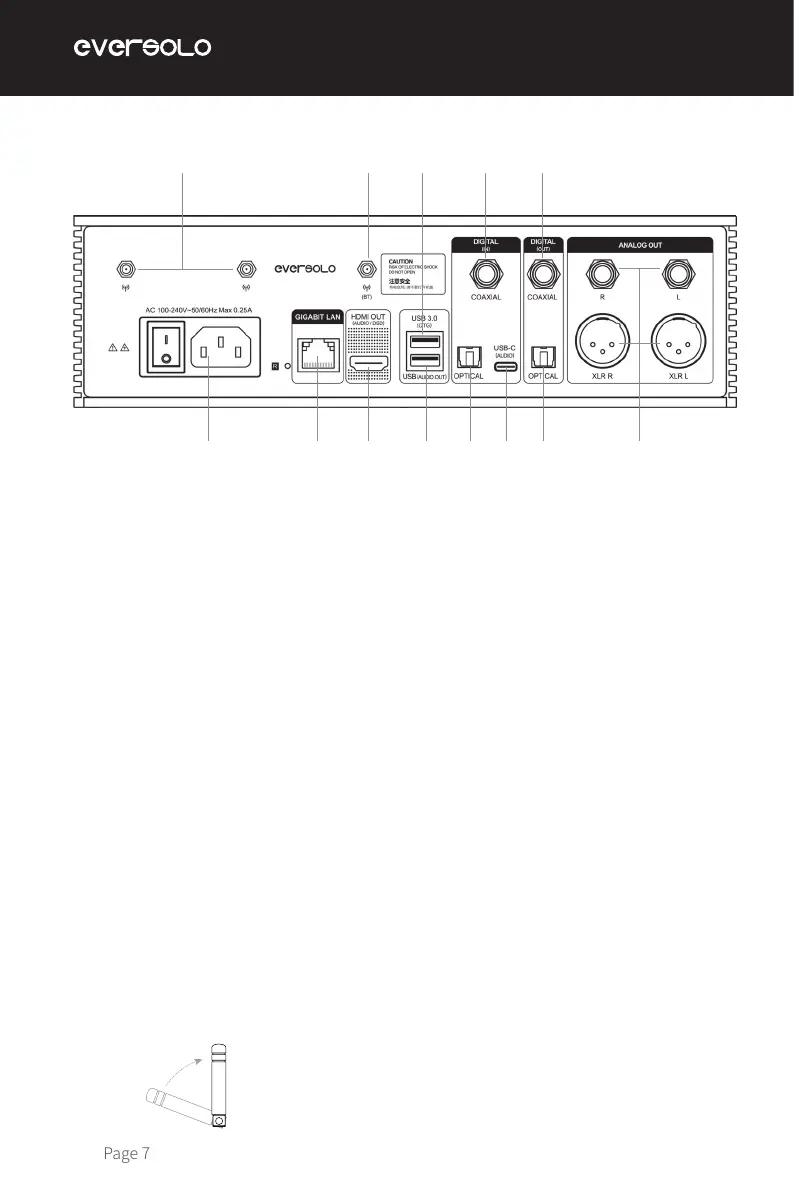

Rear Panel
Descriptions:
① Power on/o
② Gigabit Ethernet network socket
③ HDMI audio only output: support DSD output
④ USB 3.0 OTG: Connect External storage device or PC transfer
(Dened in "Settings-General-USB OTG port")
⑤ USB (Audio out): USB audio output for connecting audio devices (DAC)
⑥ Coaxial input: connect CD player, set-top box, or digital turntable
⑦ Optical input: connect CD player, set-top box, or digital turntable
⑧ USB-C input: USB Audio input,Connect mobile phone(should use OTG
cable),computer,DAP and other audio sources that support USB audio output
⑨ Optical output: connect decoder or preamp
⑩ Coaxial output: connect decoder or preamp
⑪ XLR/RCA analogue output: Connect pure preamp, active speaker or power amplier
⑫ WiFi antenna: connect to the wireless network
⑬ Bluetooth antenna: receive Bluetooth signals
* Please use the analog XLR/RCA outputs for Coaxial, Optical, Bluetooth, or USB input.
* Pointing antennas upward before using.
①
⑫ ⑬ ④ ⑥ ⑩
② ③ ⑤ ⑦ ⑧ ⑨ ⑪
Antennas diagram
