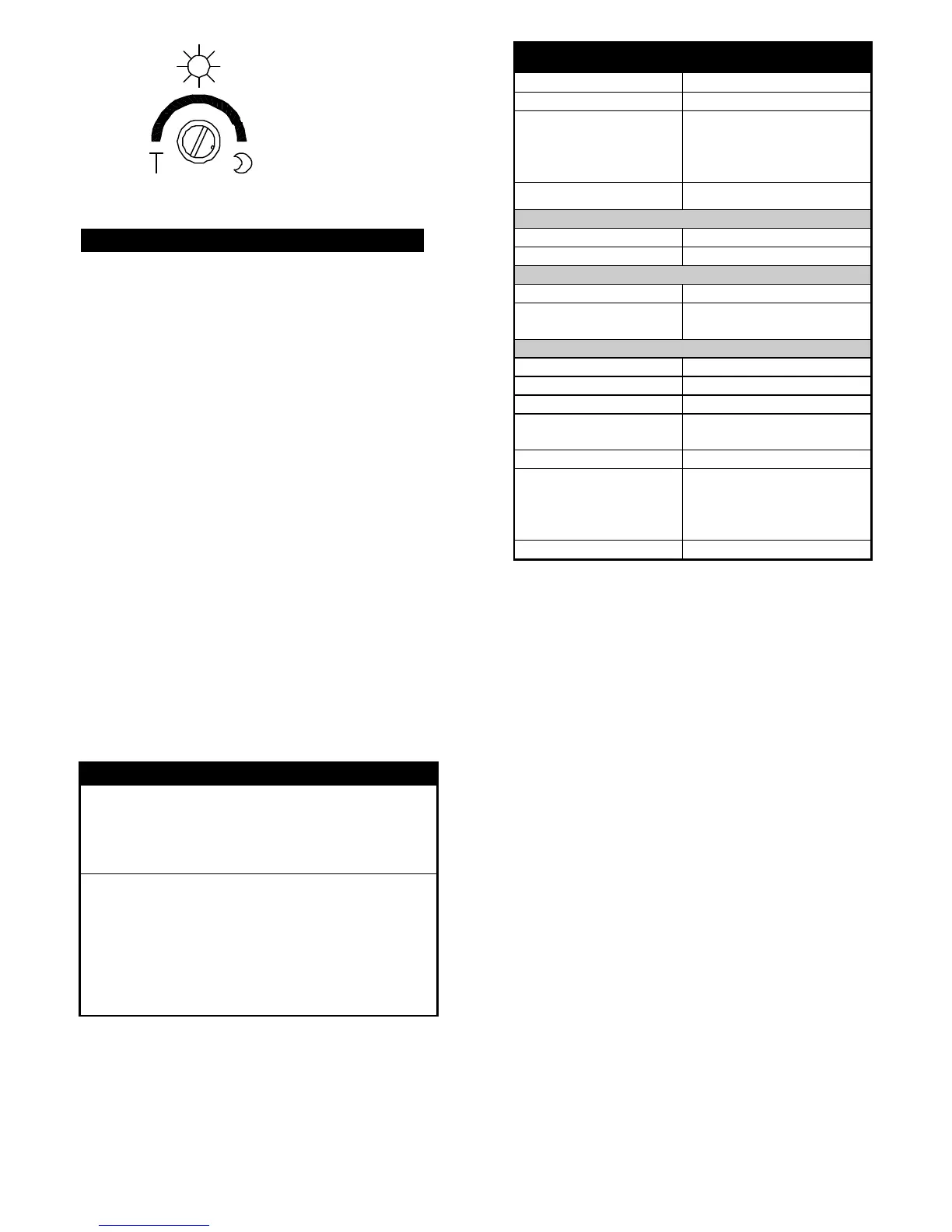

FIGURE 13
OPERATION
By using wall switch to your ES34T, you can easily
select one of two modes of operation: automatic
operation and manual override.
(1) AUTOMATIC OPERATION
Turn on the wall switch. When the sensor detects
motion, the light automatically turns on. The built-in
photocell turns the sensor off and on according to the
light level selected by the Lite adjustment.
(2) MANUAL OVERRIDE
To keep the light on regardless of the motion, you can
override the Automatic Operation. Turn the wall switch off
and on twice within 4 seconds. The interval between the
first and second operation must be within 0.5 - 2
seconds.
In Manual Override mode, the light will remain on for
around 4 ~ 6 hours despite no motion; then the light will
turn off and the motion sensor will be back to Auto
Operation mode automatically.
Users can also set the motion sensor back to Auto
Operation by turning off the wall switch for at least 10
seconds and then turn it back on.
TROUBLESHOOTING
Light does not turn on
l Confirm that you have made a correct “wiring
connection”.
l Make sure that the bulbs have not burned out.
Light remains on
l Make sure the wiring connection is correct.
l If you set the system to manual override, remember
that you must turn the wall switch off for at least 10
seconds to switch the sensor to automatic
operation and turn off the lights.
l Check if the TIME setting is correct.
6
SPECIFICATIONS
Detection Method Passive infrared
Power Requirement AC 220 - 240V/ 50Hz
Lighting Load
(Incandescent)
Max. 1,000W
Tungsten
10* Max.40W
Fluorescent
Power Cord Requirement
H05RN-F, 1.0mm²
Sensor Power
Protection Class Class II
Waterproof IP44
Operating
Temperature -20° C to +40°C
Detection Range
Up to 12m (39.4ft) at 20° C,
2m Height
Sensor Adjustments
Detection Angle Up to 180° at 20°C, 2m Height
Swiveling Angle Vertical 220°
Warm Up Time About 1 minute
Time Adjustment From 5± 3 seconds to
12± 3 minutes
Lux Adjustment Approx 0 Lux to 1,000Lux.
Mounting Height 1.8 to 2M (5.9 to 6.6 Feet)
Wall Mount
2.5 to 4M (8.2 to13.2 Feet)
Ceiling Mount
Switch Function Off/Auto/Manual Override
INES34TEVSPEA.
7
