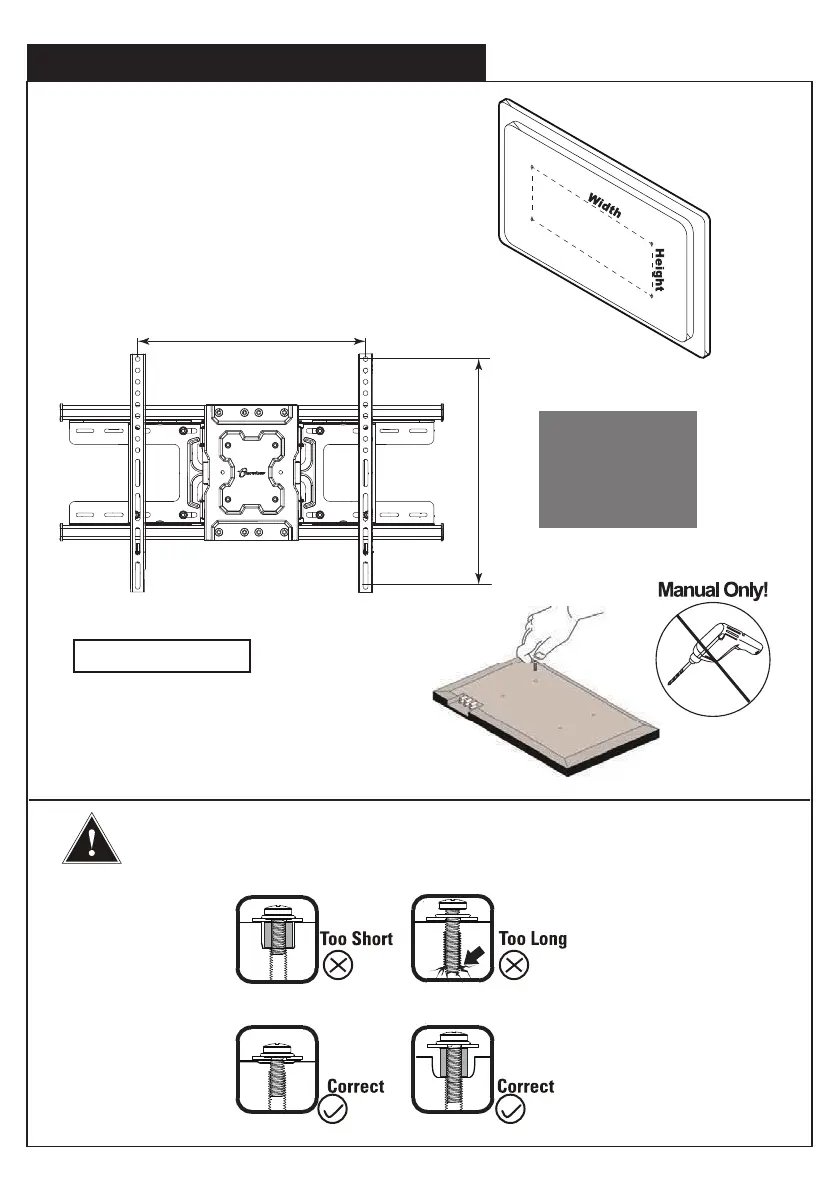

Measure the distance between the holes located
at the back of your TV(these measures may form
the shape of a square , or a rectangle) and check
that these taken measures are within the VESA(*)
range for this wall mount.
(*) VESA : International standard established by the
TV manufacturers used to determine if LCD/LED
TVs are compatible with wall mounts.
Step 1 Before TV Bracket Installation
75 mm ≈ 2 7/8 in
100 mm ≈ 4 in
200 mm ≈ 7 7/8 in
300 mm ≈ 11 3/4 in
400 mm ≈ 15 3/4 in
Max 400mm (15 3/4 in)
Max 600mm（23 5/8 in）
Check TV Screws
Please select the proper screw length for your
TV by hand tightening to check your plat panel
thread depth.
When attaching brackets to the TV, be careful not to over tighten screws and be sure
that screws do not bottom out in the mounting holes.
600 mm ≈ 23 5/8 in
