right
left

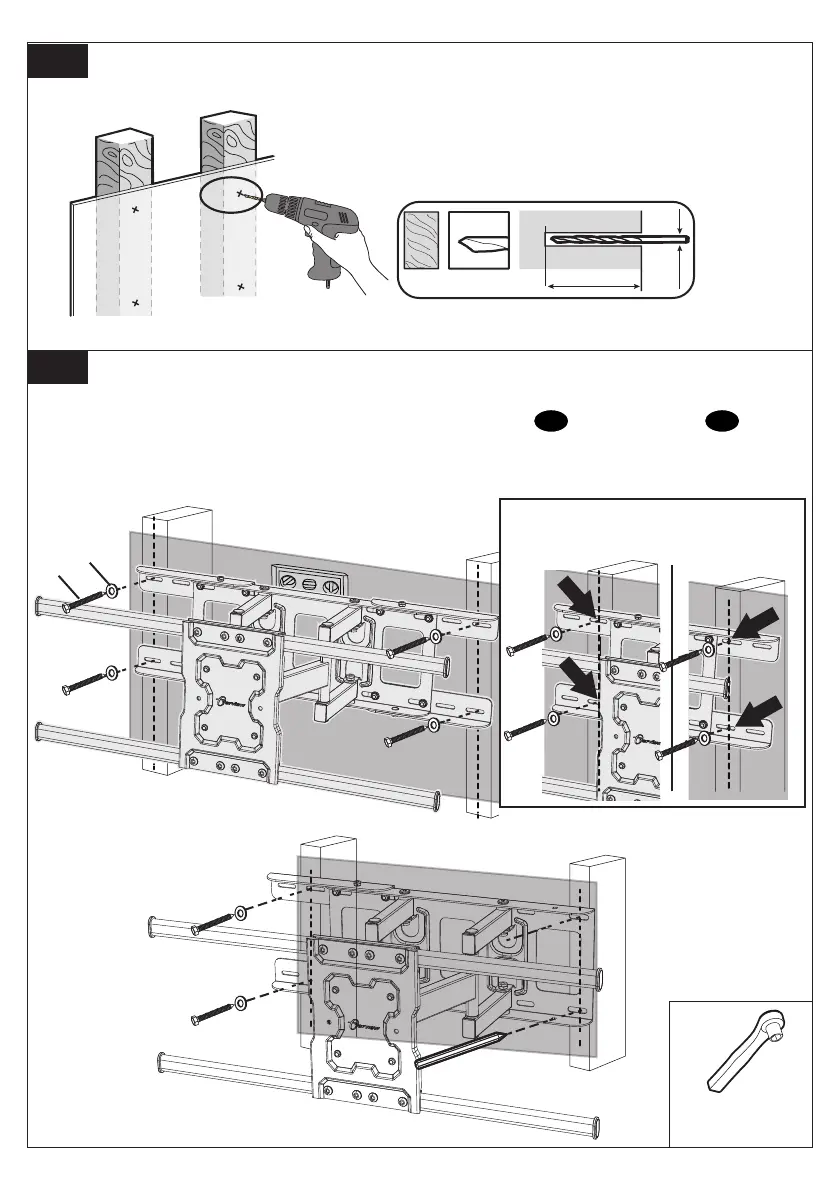

Drill 4 pilot holes using a 7/32 in. (5.5 mm) diameter drill
bit. Make sure the depth is not less than 2 3/8” (60mm).
A
4-4
4-3
1/2 in. (13 mm)
socket wrench
Secure the lag bolts to pilot holes for
24”space studs.
Secure the lag bolts to 4 inside holes
for 18”space studs.
Secure the lag bolts to 4 inside
holes for 16.5”to 18”space studs.
Mount wall plate using 4 sets of 5/16 lag bolts and washers
B with a 1/2 in. socket wrench (not included).
B
7/32 in.
ø5.5 mm
2⅜ in.(60mm)
To Next Page
