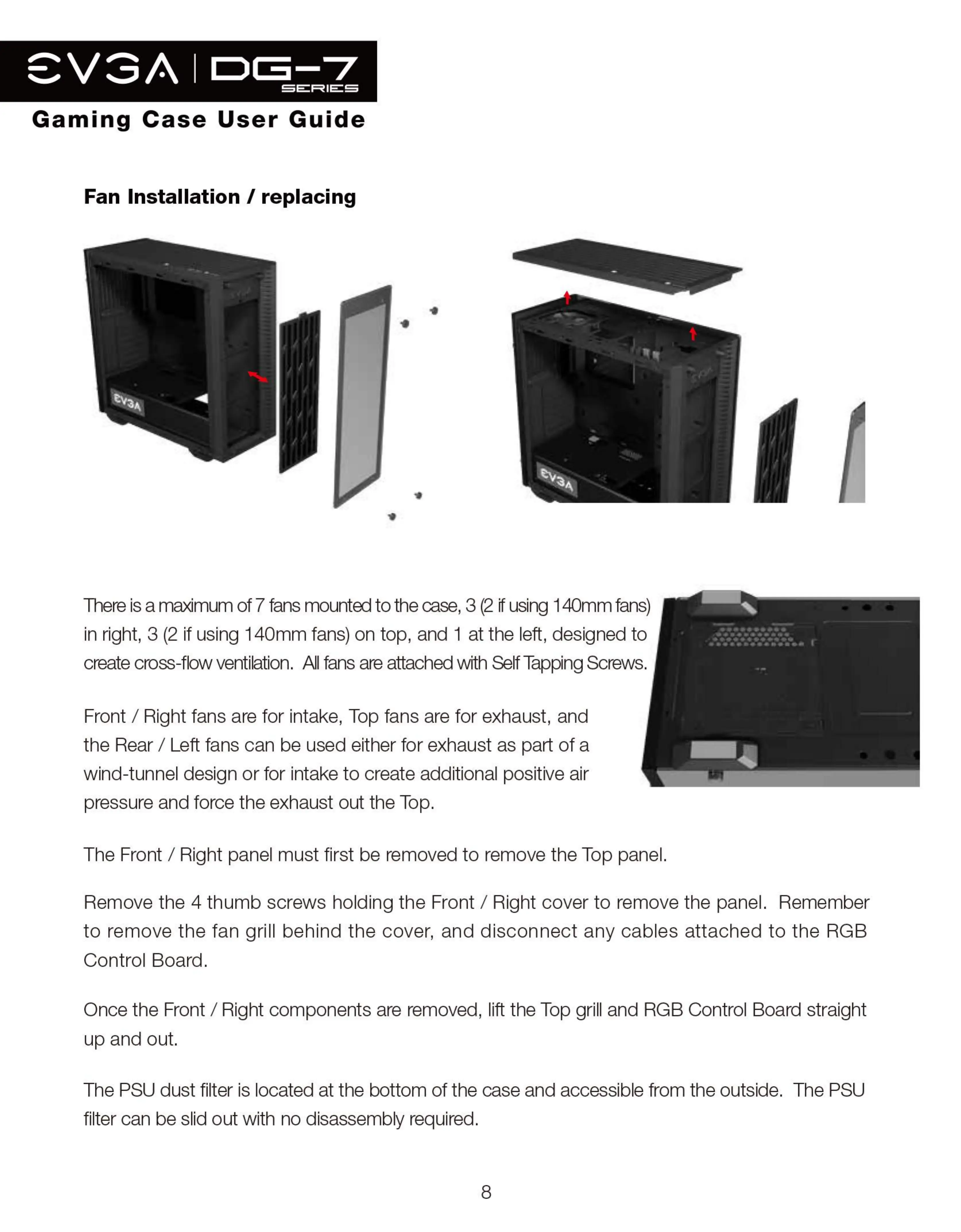

Gaming Case User Guide
Fan Installation / replacing
There is a maximum of 7 fans mounted to the case, 3 (2 tfusing 140mm fans)
in right, 3 (2 if using 140mm fans) on top, and 1 at the left, designed to
create cross-flow ventilation. All fans are attached with SelfTapping Screws.
Front / Right fans are for intake, Top fans are for exhaust, and
the Rear / Left fans can be used either for exhaust as part of a
wind-tunnel design or for intake to create additional positive air
pressure and force the exhaust out the Top.
The Front / Right panel must first be removed to remove the Top panel.
Remove the 4 thumb screws holding the Front / Right cover to remove the panel. Remember
to remove the fan grill behind the cover, and disconnect any cables attached to the RGB
Control Board.
Once the Front / Right components are removed, lift the Top grill and RGB Control Board straight
up and out.
The PSU dust filter is located at the bottom of the case and accessible from the outside. The PSU
filter can be slid out with no disassembly required.
