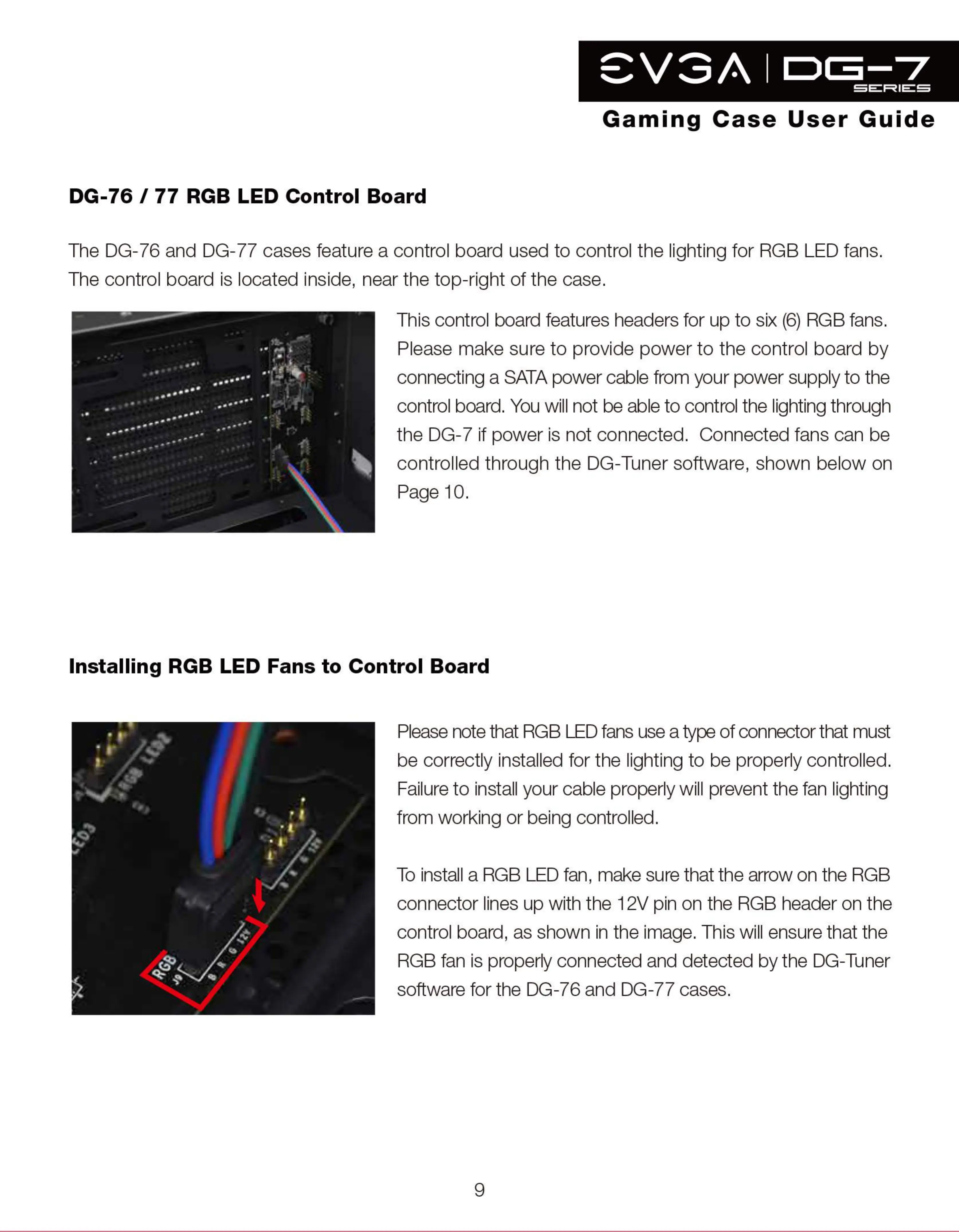

Gaming Case User Guide
DG-76 / 77 RGB LED Control Board
The DG-76 and DG-77 cases feature a control board used to control the lighting for RGB LED fans.
The control board is located inside, near the top-right of the case.
This control board features headers for up to six (6) RGB fans.
Please make sure to provide power to the control board by
connecting a SATA power cable from your power supply to the
control board. You will not be able to control the lighting through
the DG-7 if power is not connected. Connected fans can be
controlled through the DG-Tuner software, shown below on
Page 10.
Installing RGB LED Fans to Control Board
Please note that RGB LED fans use a type of connector that must
be correctly installed for the lighting to be properly controlled.
Failure to install your cable properly will prevent the fan lighting
from working or being controlled.
To install a RGB LED fan, make sure that the arrow on the RGB
connector lines up with the 12V pin on the RGB header on the
control board, as shown in the image. This will ensure that the
RGB fan is properly connected and detected by the DG-Tuner
software for the DG-76 and DG-77 cases.
