5.

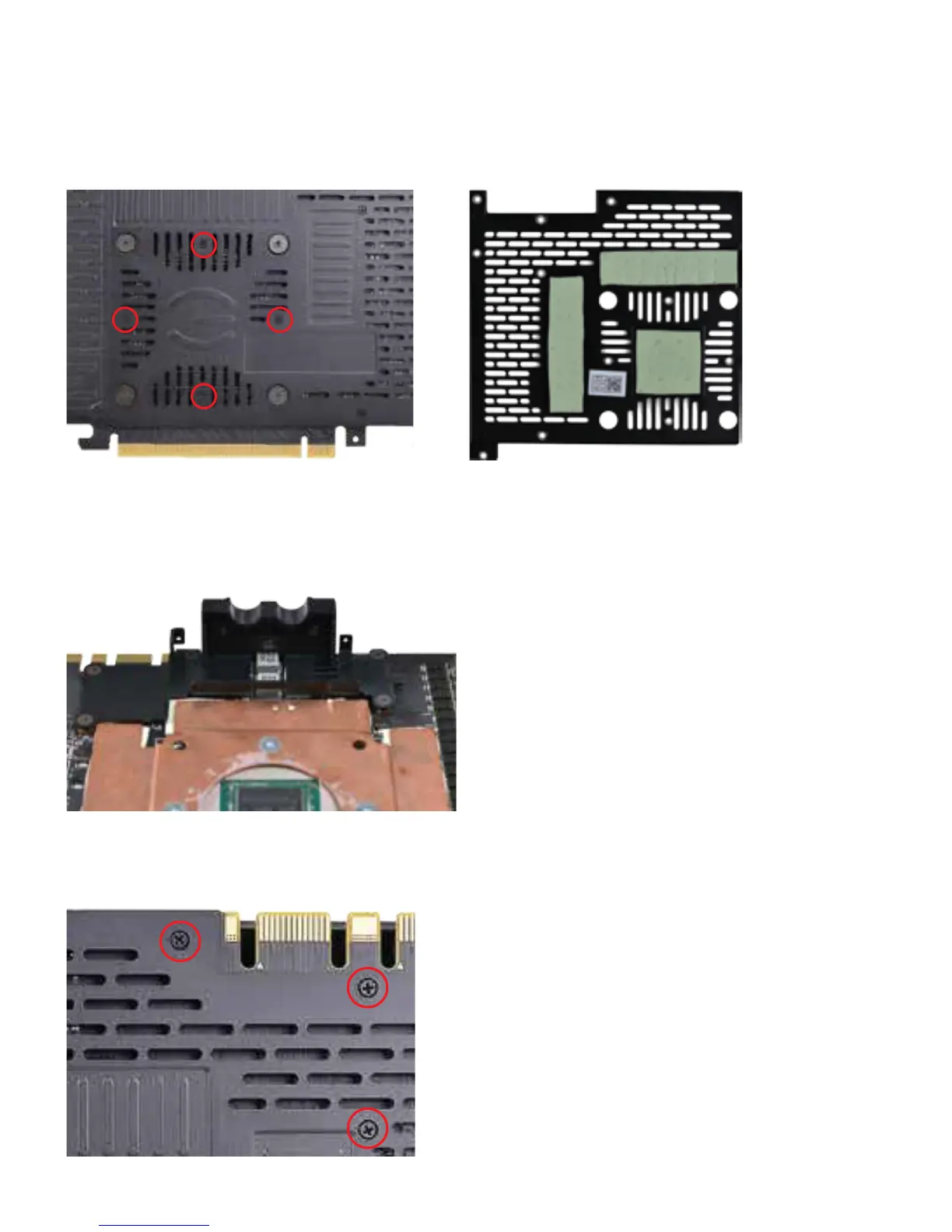

(b) Tighten 3 #08 screws in the circled areas, as shown in the photo below.
(b) Please check to make sure that your thermal pads are in the same location as photo below. If not,
please check the back of the card in case the matching thermal pad remains on the card. Install the
memory baseplate, as shown in Step 4(a). Hold the copper plate in place and turn the card over.
Place the right backplate over the card and tighten the backplate with 4 #8 screws, as shown in the
left photo below.
5. Install Tube Bracket
(a) Install #5 Tube Bracket. Align the screw threads and mounting holes with the PCB, as shown in the
photo below.
To Next Page
