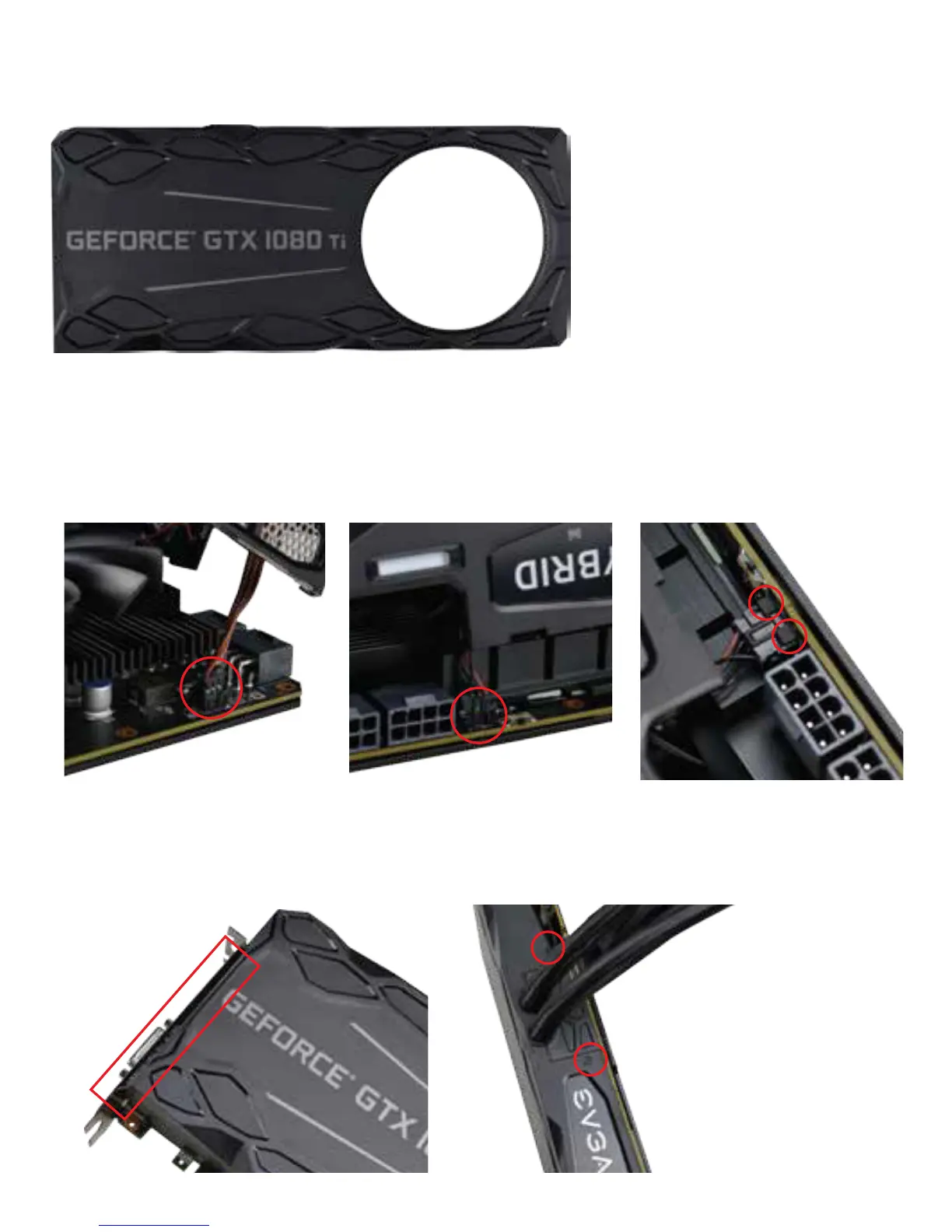

(c) Install the shroud over the PCB. Make sure to slide the shroud under the edge of the PCI bracket, as
shown in the left photo below. Once the shroud is in place, tighten 2 #7 screws in the area circled in red,
as shown in the right image below.
(b) Connect both LED cables from the shroud to the LED headers on the PCB, as shown in the left and
middle photos below. Once connected, use both #12 Rubber Inserts in the red circled areas, as shown in
the right photo below. The rubber inserts should only be used on one LED header: the same header
shown in both the middle and right photos below.
8. Install the shroud
(a) Prepare #1 Shroud by removing any adhesive film, and locate the two LED connectors.
