27
EVH P/N 16577

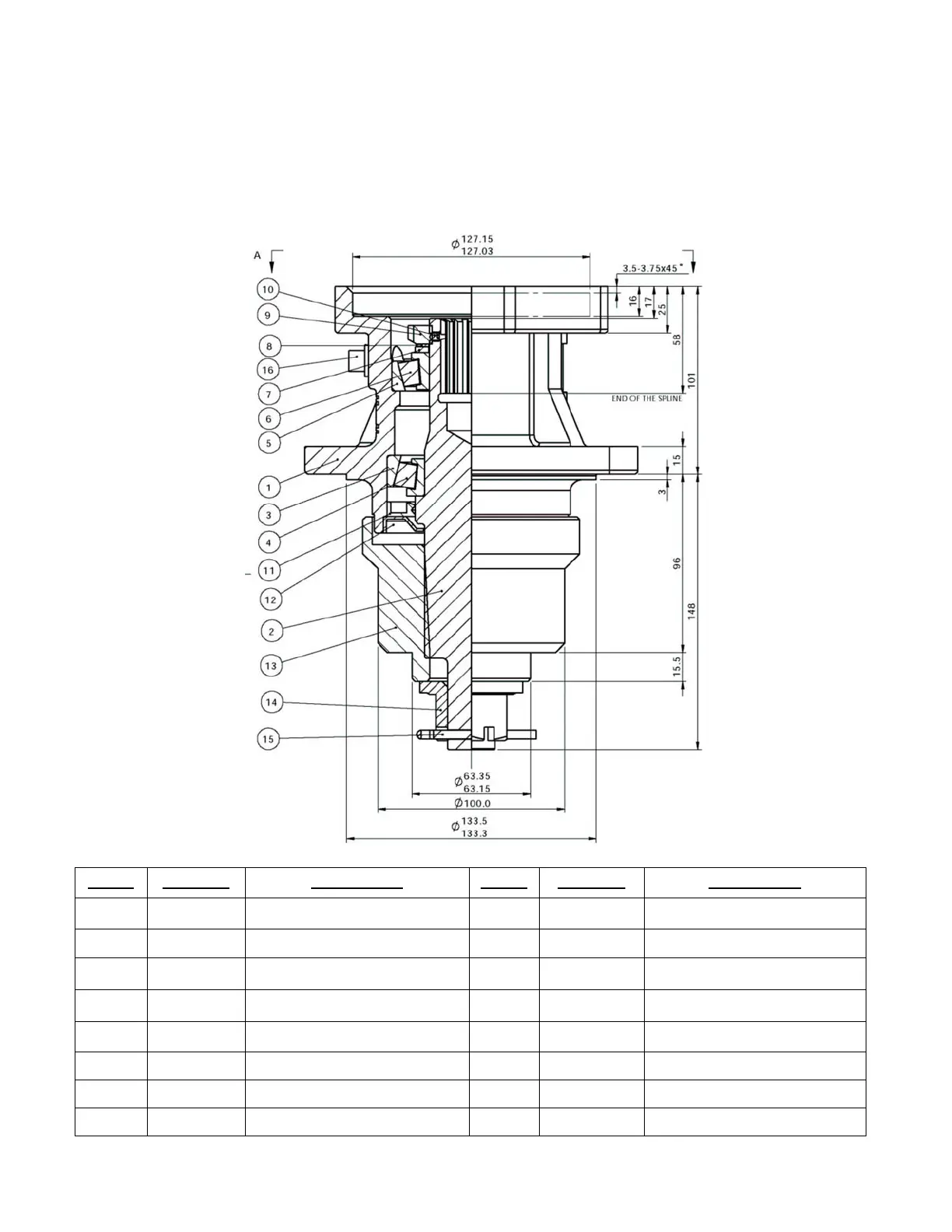

Hydraulic Motor Housing
For
DB-4048 AND DB-4060
Key #
Part No.
Description
Key #
Part No.
Description
1
N/A
Housing
9
16484
Locknut
2
N/A
Shaft
10
16480
Set Screw
3
15777
Cup
11
16479
Lip Seal-Output
4
15778
Bearing
12
16483
Seal Protector
5
15779
Cup
13
16472
Blade Hub
6
15780
Bearing
14
10173
Nut, Hex Slotted
7
15782
Washer w/tang
15
10243
Cotter Pin
8
15783
Lockwasher
16
15784
Plug, Pipe
30
32
Table of Contents
Table of Contents
3
Section 1 Introduction
4
To Our Customers
4
Owner's Responsibility
4
Purpose of this Manual
4
Safety-Alert Symbol
4
Signal Words
4
Customer Assistance
4
Section 2 Safety Information
5
General Safety Rules
5
Safety Decals
5
Section 3 Assembly and Installation
10
Component Identification and Terminology
10
Tractor Requirements
11
Driveshaft Installation
11
Driveshaft Installation on Pump Shaft
11
Tractor Hook-Up Procedures
11
Hydraulic Hose Hook - up
12
Driveshaft Installation on PTO
12
Hydraulic System and Operational Setup
12
Working Safely with Hydraulic Lines
13
Section 4 Operation Instruction
14
During Operation
14
Daily Start-Up Checklist
14
Operation Environment
14
Application Do's and Don'ts
14
Using Your Cutter
15
Getting Started
15
Side Dressing Trees
15
Unhook and Post Use Care
15
Unhooking the DB4048 & DB4060
15
Post Use Care
15
Section 5 Maintenance
16
Maintenance and Service Schedule
16
Hydraulic Motor Housing Assembly
16
Greasing PTO Driveshaft to Pump
16
Inspection and Replacement of Blades
16
Inspection and Replacement of Blade Holder
16
Inspection
16
Hardee by EVH
16
Replacement
17
Checking the Cutter Head Relief Valve
17
Routine Maintenance Checklist
18
Section 6 Troubleshooting
19
Troubleshooting Guide
20
Section 7 Specifications
21
Summary of Specifications
21
Section 8 Replacement Parts
23
Logo Decal Replacement
27
Section 9 Reference
42
Bolt Torque
42
Checking Bolt Torque
42
Section 10 Warranty
44
