Evo HE H12 - Page 14

14
evo HE H - Installation & Servicing
INSTALLATION
nm8779
40
94
8. Flue manifold.
10. Interpanel.
11. Burner assy.
12. Combustion chamber
Insulation.
13. Heat exchanger.
14. Injector & housing.
15. Venturi assy.
16. Fan assy.
17. Gas pipe assy.
19. Gas control valve assy.
20. Fan bracket assy.
21. Orifice plate.
22. Flue thermistor.
LEGEND
1. Front casing panel.
2. Sealing panel.
3. Sump cover plate.
4. Bottom casing panel.
5. Flue sensing nipple.
6. Return pipe.
7. Flow pipe.

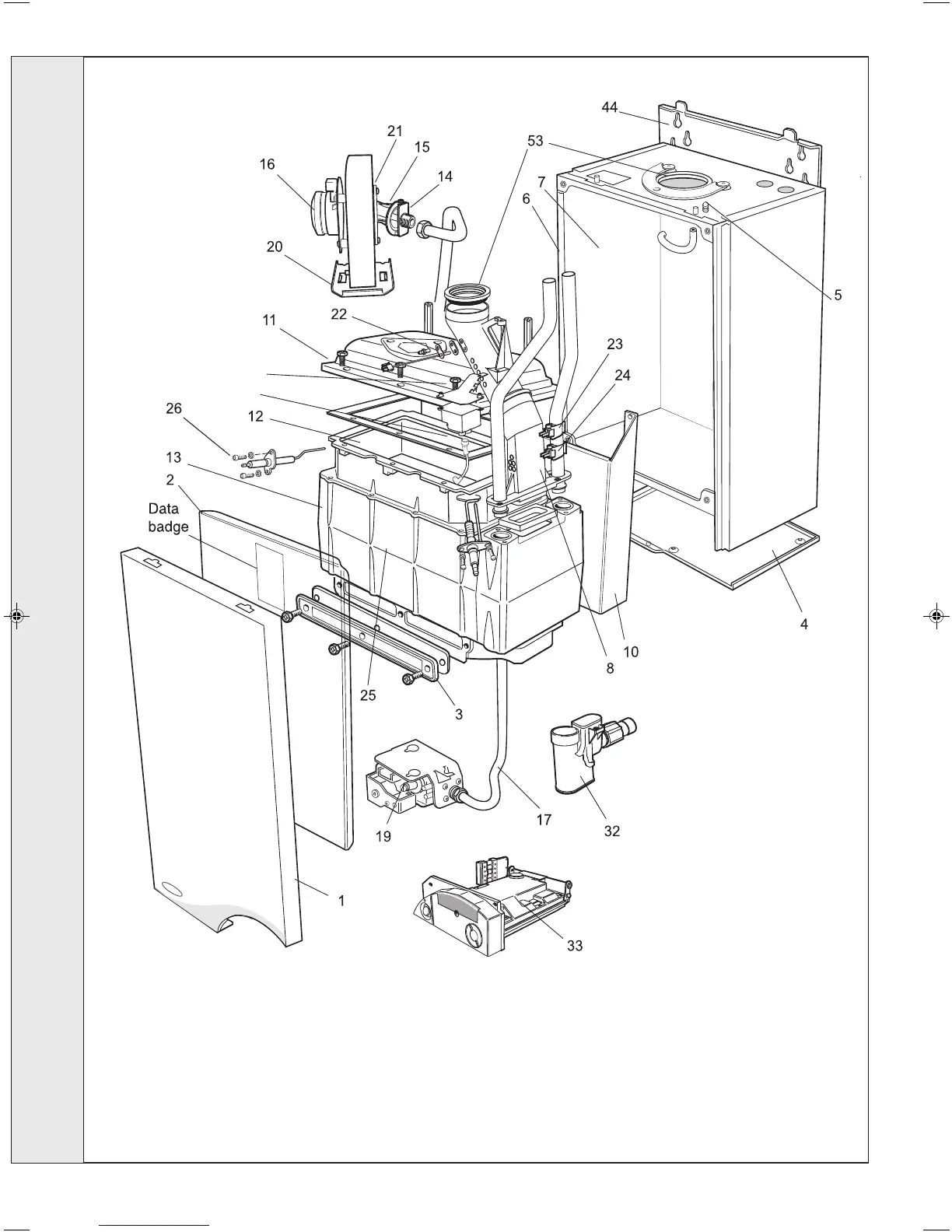

10 BOILER ASSEMBLY - Exploded view
23. Control thermistor.
24. Overheat thermostat.
25. Ignition electrode.
26. Flame detection electrode.
32. 'S' trap.
33. Control assy.
40. Spark generator.
44. Wall mounting plate.
53. Turret gasket kit.
94. Ignition lead.
INSTALLATION
