15
evo HE H - Installation & Servicing

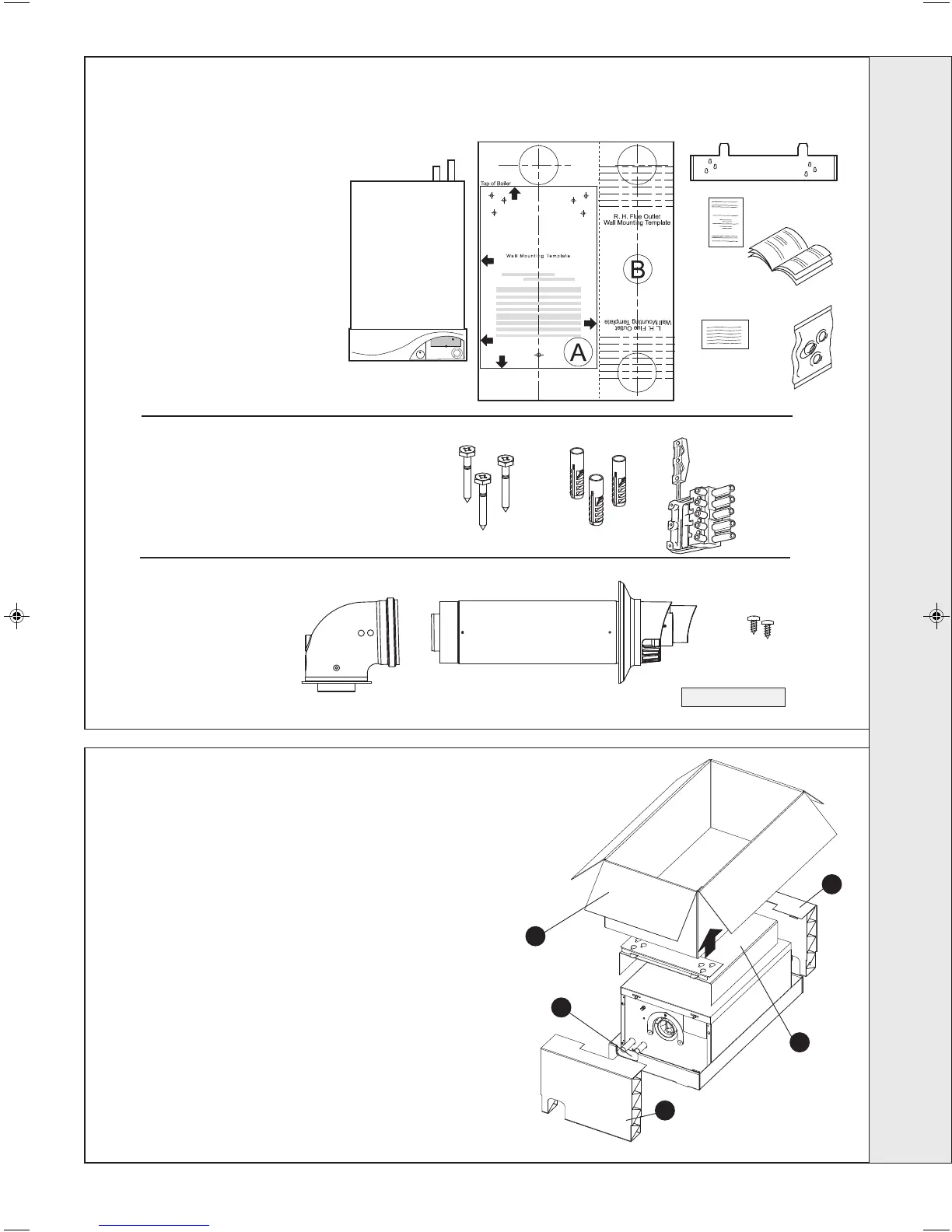

INSTALLATION
The boiler is supplied fully assembled in one Pack A,
together with a telescopic flue assembly for lengths up to
595mm, rear or side flue outlet, in Pack B.
Unpack and check the contents.
G
C
A
B
E
F
D
nm7890
Hardware Pack
A 50mm x No.14 wood screws - 3 off
B Wall plugs (TP2B ) - 3 off
C Mains connector - 1 off
Pack A Contents
A The boiler
B Wall mounting template
C Wall mounting plate
D 1 year guarantee form
E These Installation & Servicing
User’s Instructions
F Water Treatment Warning Label
G Hardware pack
1. Ensure the boiler is stood correctly, as marked on
the carton.
2. Cut and remove the strapping.
3. Fold back the top flaps to gain access to the wall
mounting plate, literature and wall mounting
template.
4. Remove the instructions and read thoroughly before
unpacking the product.
5. When ready for installation lift off the outer sleeve.
6. Remove the top protection packing.
7. Remove the two packaging ends.
8. Remove the hardware pack from under the pipes
and keep in a safe place.
12
PACKAGING REMOVAL
3
8
6
7
7
nm7818
5
11
UNPACKING
A
B
C
nm8464
B Pack Contents
A Telescopic flue terminal
B Flue turret
C Screws
D Sealing Tape
INSTALLATION
203323-2.pmd 21/09/2007, 11:2615
