FX20 MOTORIZED TREADMILL
Visit us at: www.evofitness.com
10
ASSEMBLY
STEP 1:
Remove your treadmill from the carton and place it on the floor in an open area as shown in FIG 1.
Raise the Right and Left Uprights (16 and 15) and secure with two Washers (88) and M10 x 58mm Bolts (78).

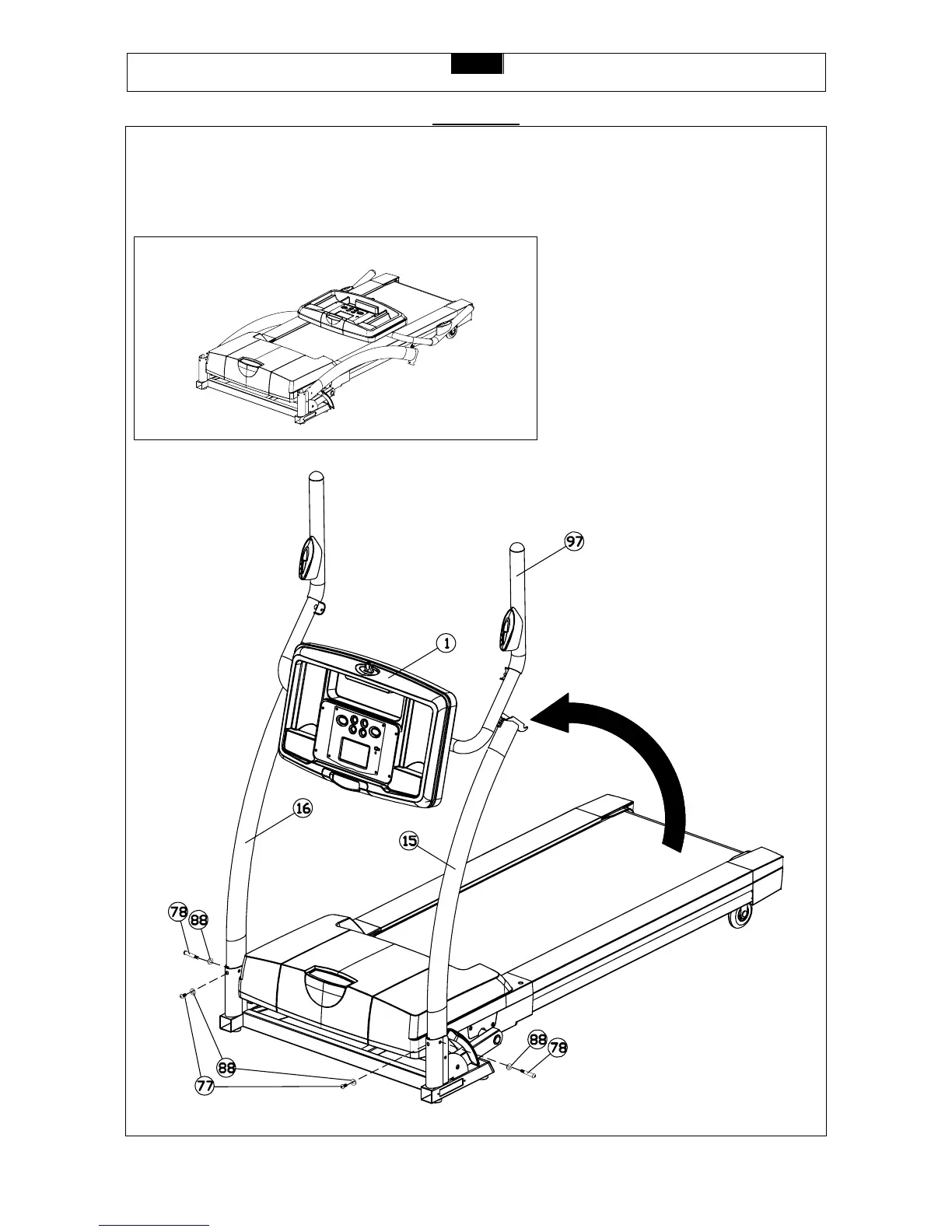

FIG. 1
