EVO REV 600 ELLIPTICAL TRAINER
Visit us at: www.evofitness.com
8

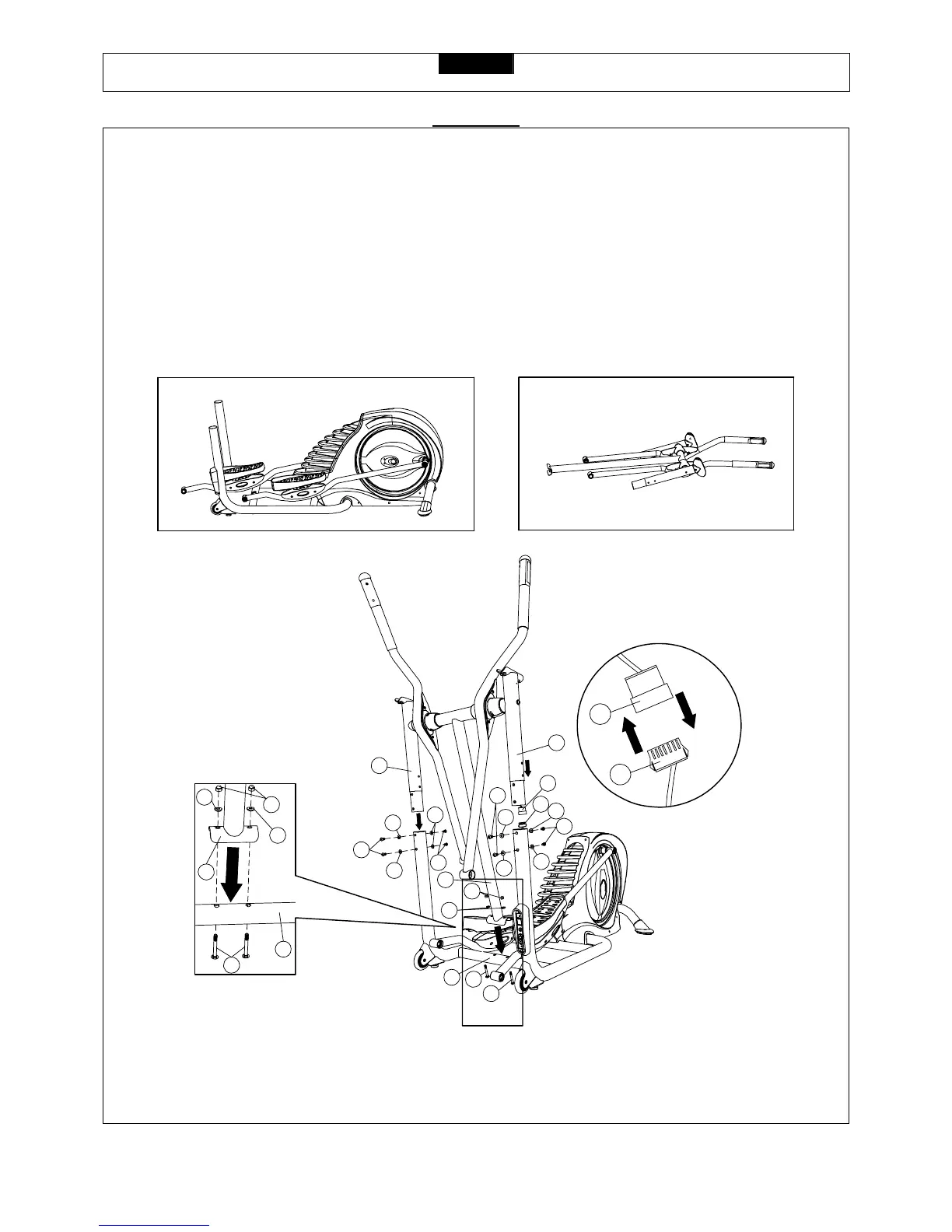

ASSEMBLY
STEP 1:
Remove the upper frame and lower frame of Elliptical Trainer from the carton as shown in FIG.1 and FIG.2.
First connect the Wire Harness - Lower (112) and Wire Harness – Middle (113).
Slide the Side Upright – Left (5) and Side Upright – Right (6) into the Base Frame (99) and secure with eight 8mm Curve
Washers (91) and eight M8 x 15mm Allen Head Bolts (74). Secure the Upright (42) to the Base Frame (99) using two M8 x
65mm Bolts (78), two 8mm Curve Washers (91) and two M8 Cap Nuts (98).
NOTE: Make sure the wire is recessed into the frame, do not trap the wire.
74
91
91
91
91
74
74
91
91
74
91
5
6
42
98
91
99
78
78
78
99
42
98
91
91
112
113
113
112
FIG.1
FIG.2
FIG.3
FIG.4
