PUMP FED INSTALLATION INSTRUCTIONS
12
WASTE PIPE CONNECTION
The waste valves are where the waste from your Nexus is discharged when cleaning and
prior to draining. The 1½” valve is for the Inner Chamber and is used for when cleaning
the Eazy, while the ¾” valve is for draining the outer chamber (only when and if required).
Both of these valves can be connected using a waste pipe kit (optional extra) as shown in
Figure 8.1 - 8.3 or can just be discharged individually. If the Nexus is located below your
drain height the waste can be either discharged into a sump where a submersible pump
can be used to pump the waste away or an in-line pump can be connected to the waste
line where it can pump directly to waste.
Once your Nexus is installed and plumbed in as described, you are ready to fill the Nexus
and begin treating your pond water.

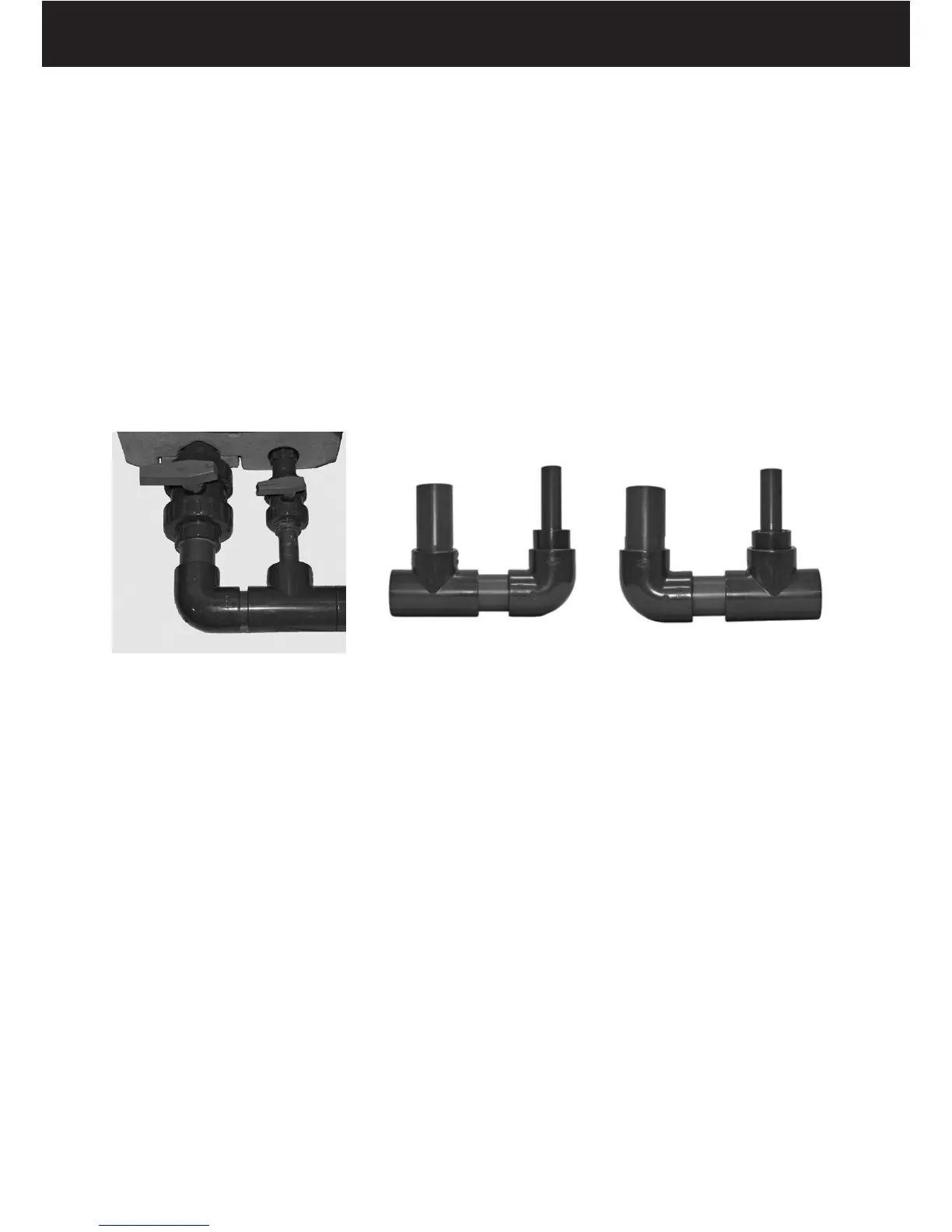

Figure 8.1. Installed Figure 8.2. Exit to left Figure 8.3. Exit to right
