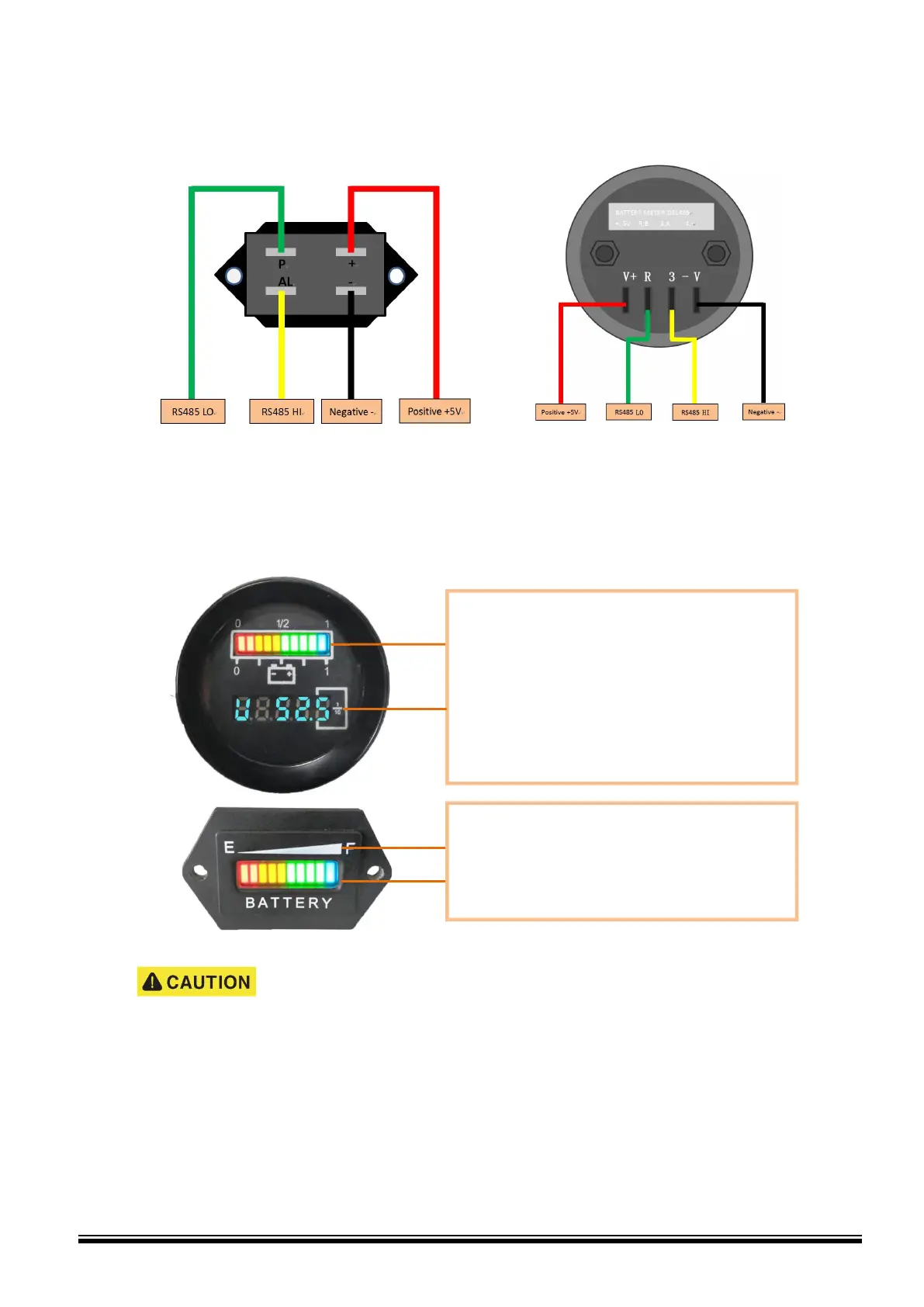

Wiring diagram for battery indicator as following:
When the indicator reaches 0%, all the LED`s will turn off, the lithium battery pack will
automatically cut off the main power output to the vehicles, and the vehicles will stop
immediately..
We recommend that when the last two red LED`s flashing on the battery indicator,
charge the lithium battery immediately, Do not wait until the battery is discharging
completely.
Battery power indicator display introduction
Battery indicator shows the amount of usable power in the battery pack, it should be installed on
the dash panel where the place is obvious to check for drivers. Below are displaying:
Each of LED lights indicates 10% of
battery power
“0”, “1/2”, “1 “, which are above the
LED`s mean empty of battery power,
half of power, full power.
Voltage display means the present
voltage of lithium battery pack
“F” indicates a full charge of battery
pack. “E” indicates low charge.
Each of LED lights indicates 10% of
battery power
