5.0 OPERATION

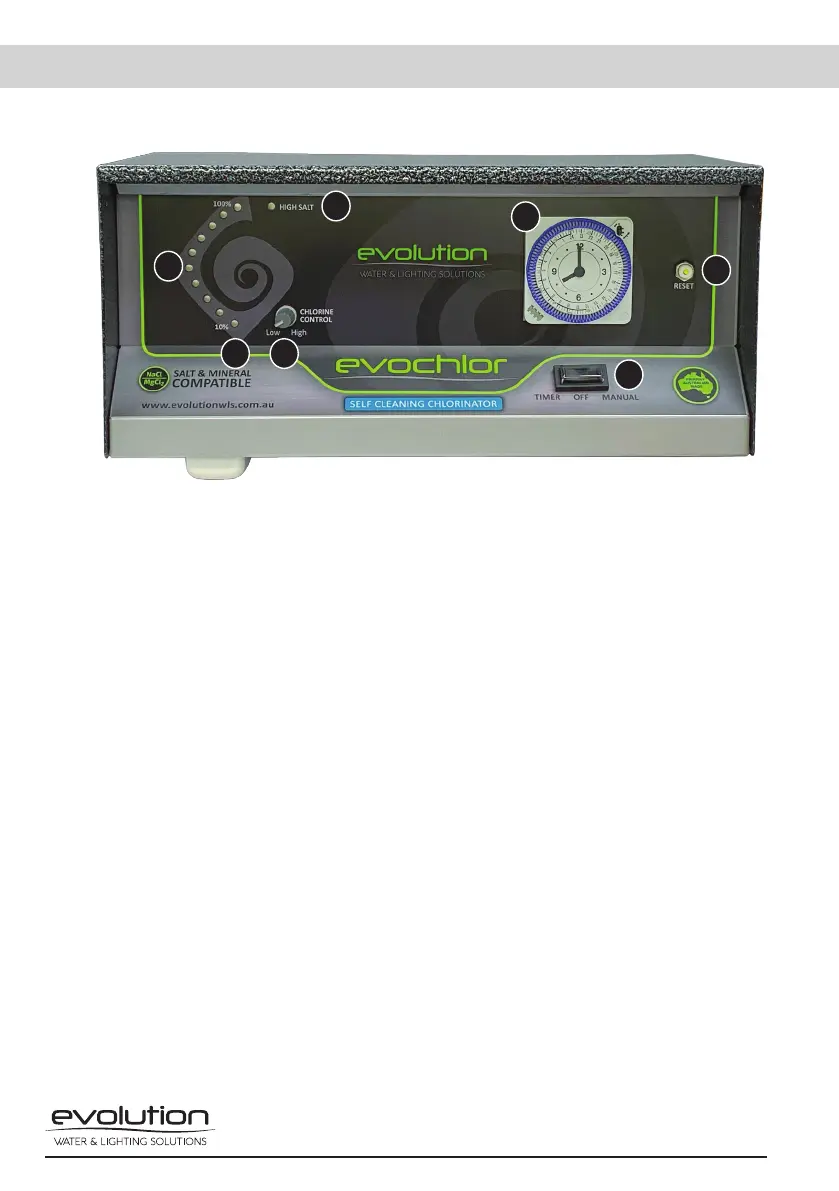

5.1 The control interface on the power pack consists of the following:
1
2
3
4
6
7
5
Fig. 3
1. Chlorine Output LEDs
The output lights follow the curve of the Evolution logo. If the correct salinity level is
maintained in the water, all ten lights will illuminate at full output (100%). Each light
represents 10% chlorine output. If all lights are not illuminated, then a higher salinity
level will be required, this is achieved by determining the current salinity levels and
adding salt accordingly. Make sure all salt is dissolved correctly before adding more.
The Chlorine Control dial (2 in Fig. 3) will increase or decrease the chlorine output to
suit the chlorine requirements. If all of the indicator lights flash, then there is a water
flow fault.
2. Chlorine Control
The Chlorine Control dial determines the amount of chlorine production. By simply
turning the control clockwise, chlorine output is increased, and by turning the control
anti-clockwise, chlorine output is decreased. Do not force the control past its stop, as
this will damage the unit and void warranty.
3. High Salt Light
This light is a red warning indicator and will illuminate when the salt level in the
swimming pool is higher than 4500ppm. If this light is on, together with the ten output
LED’s (1 in Fig. 3), decrease the output by turning the Chlorine Control dial (2 in Fig. 3)
anti-clockwise until the high salt (red light) goes off and all ten Chlorine Output LEDs
remain on. If the High Salt Light is the only light illuminated, the unit has gone into the
over-temperature cutout and will reset once back to normal running temperature.
4. Polarity Light
The Polarity Light is the first indicator light, 10% in the chlorine output array (1 in Fig.3).
This light will alternate between orange and green every reversing cycle (4-12 hours).
The factory setting is a 12-hour cycle.
