Exaco VI23 - Stem Wall Installation (VI 23)

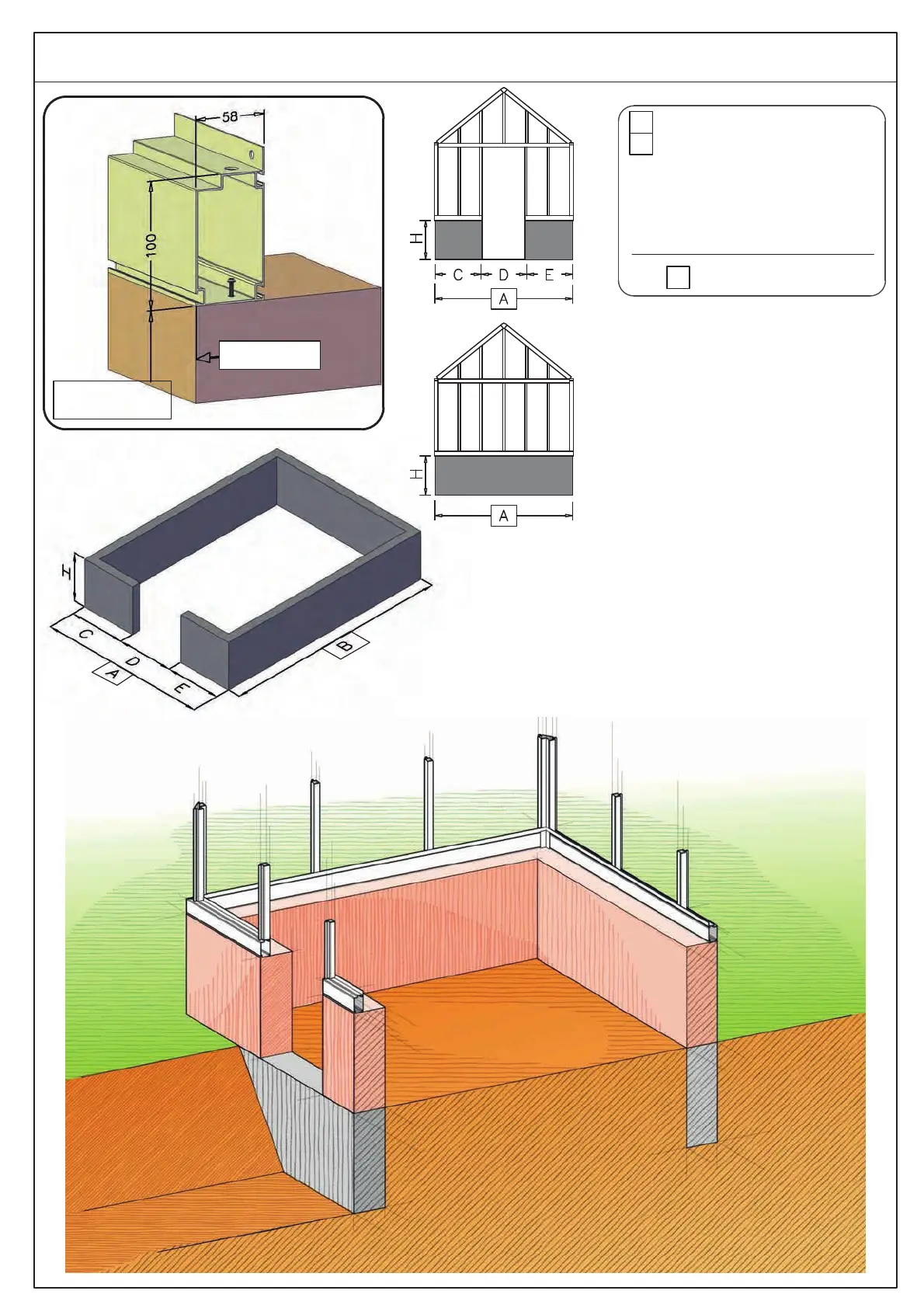

VI 23 on Stem Wall- One door on Gable (shown with narrow panes)
A = 2.360
B = 2.360 | 3.098 | 3.836
4.574 | 5.312 | 6.050
C = 829
D = 703
E = 829
!!! A = C + D + E !!!
A|B|C|E
H
200 | 400
600 | 1.025
All dimensions are external dimensions of the aluminum profiles!!
hinged door ONLY!
Call for
sliding
door
measure-
ments!
