ITEM M23 / M24 M34 / M36
PRO6120 foundation profile 2360 mm 2 pc 3098 mm 2 pc
B19_1030 round tube Ø19 1030 mm 2 pc
L40X40GATFUND 400 mm 4 pc 400 mm 4 pc
PRO20229 horizontal gable prof. 2244 mm 2 pc 2982 mm 2 pc
PRO21214 wind bracings roof 2543 mm 4 pc 2757 mm 4 pc
PRO1456 glazing bar 547 mm 2 pc 703 mm 2 pc
PRO1456 glazing bar 90 / 65 396 mm 2 pc
PRO1456 glazing bar 65 / 90 396 mm 2 pc
E400330 halfmoon glazingrubber 1 pc 20 lm 1 pc
SAPAKHELIOS 1 pc 1 pc
PVC gable pieces 4+4+2 pc
bolt M6x50 DIN933 A2 16 pc
Nut M6 16 pc
L2G 10 pc
PALLET
WEIGHT: MASTER
M23 384 kg
M24 485 kg
M34 567 kg
M36 676 kg
DIMENSIONS:
800 x 900 x 2300 mm
COLLI A (HELIOS)
WEIGHT:
M23/M24 19 kg
M34/M36 25 kg
DIMENSIONS:
250 x 150 x 3200 mm M23/M24
4700 mm M34/M36
ITEM M23 M24 / M34 M36
PRO6120 foundation profile 3098 mm 2 pc 4574 mm 2 pc 6050 mm 2 pc
PRO20227 gutter profile 3098 mm 2 pc 4574 mm 2 pc 6050 mm 2 pc
PRO6760 ridge profile 3098 mm 1 pc 4574 mm 1 pc 6050 mm 1 pc
ZAK_BOUT 2 pc 3 pc 3 pc
nut cap M6 50 pc
nut M6 50 pc
bolt M6x12 DIN933 A2 50 pc
COLLI B (HELIOS)
WEIGHT:
M23 26 kg
M24/M34 39 kg
M36 52 kg
DIMENSIONS:
250 x 150 x 3200 mm M23
4700 mm M24/M34
6250 mm M36
POSITION GLAS DIMENSIONS M23 M24 M34 M36
sliding door 730 x 1850 mm 1 pc 1 pc 1 pc 1 pc
gabels 730 x 1850 mm 12 pc 16 pc 18 pc 22 pc
underneed louvre-vent 730 x 825 mm 1 pc 1 pc 1 pc 1 pc
triangle H1 1099 x 74 x 543 mm 4 pc 4 pc - -
triangle H2 730 x 74 x 411 mm - - 4 pc 4 pc
triangle H3 730 x 414 x 696 mm (113 plat) - - 4 pc 4 pc
roof 730 x 1250 mm 6 pc 9 pc - -
roof 730 x 1650 mm - - 9 pc 12 pc
roofwindow 730 x 825 mm 2 pc 3 pc 3 pc 4 pc
underneed roofwindow 730 x 425 mm 2 pc 3 pc - -
underneed roofwindow 730 x 825 mm - - 3 pc 4 pc
ITEM M23 M24 M34 M36
LAMELLEN + ZAKJE_LAMEL 1 pc 1 pc 1 pc 1 pc
ESD_183_ZS 1 pc 1pc 1 pc 1 pc
DAKR_HEL 2 pc 3 pc 3 pc 4 pc
PRO6578 corner profile 1830 mm 4 pc 4 pc 1830 mm 4 pc 4 pc
PRO1456 glazing bar gable 1830 mm 8 pc 12 pc 1830 mm 14pc 18 pc
PRO6918 endbar roof 1230 mm 4 pc 4 pc 1630 mm 4 pc 4 pc
PRO1456 glazing bar roof 1230 mm 6 pc 10pc 1630 mm 10 pc 14 pc
PRO10980 round tube Ø40 1900 mm 2 pc 2 pc 1900 mm 2 pc 2 pc
PRO21214 wind bracings gabel 1975 mm 8 pc 8 pc 1975 mm 8 pc 8 pc
PRO1748 rubber 12m/rol 5 pc 6 pc 7 pc 8 pc
ZAK_H 1 pc 1 pc 1 pc 1 pc
screw 4.8x38 DIN7504 N A2 2 pc
bolt M6x25 DIN933 A2 4 pc
screw 4.8x19 DIN7504 M A2 10 pc
glasholder 32 pc
PVC Ø40 90° 2 pc
PVC gutter pieces 2 + 2 pc

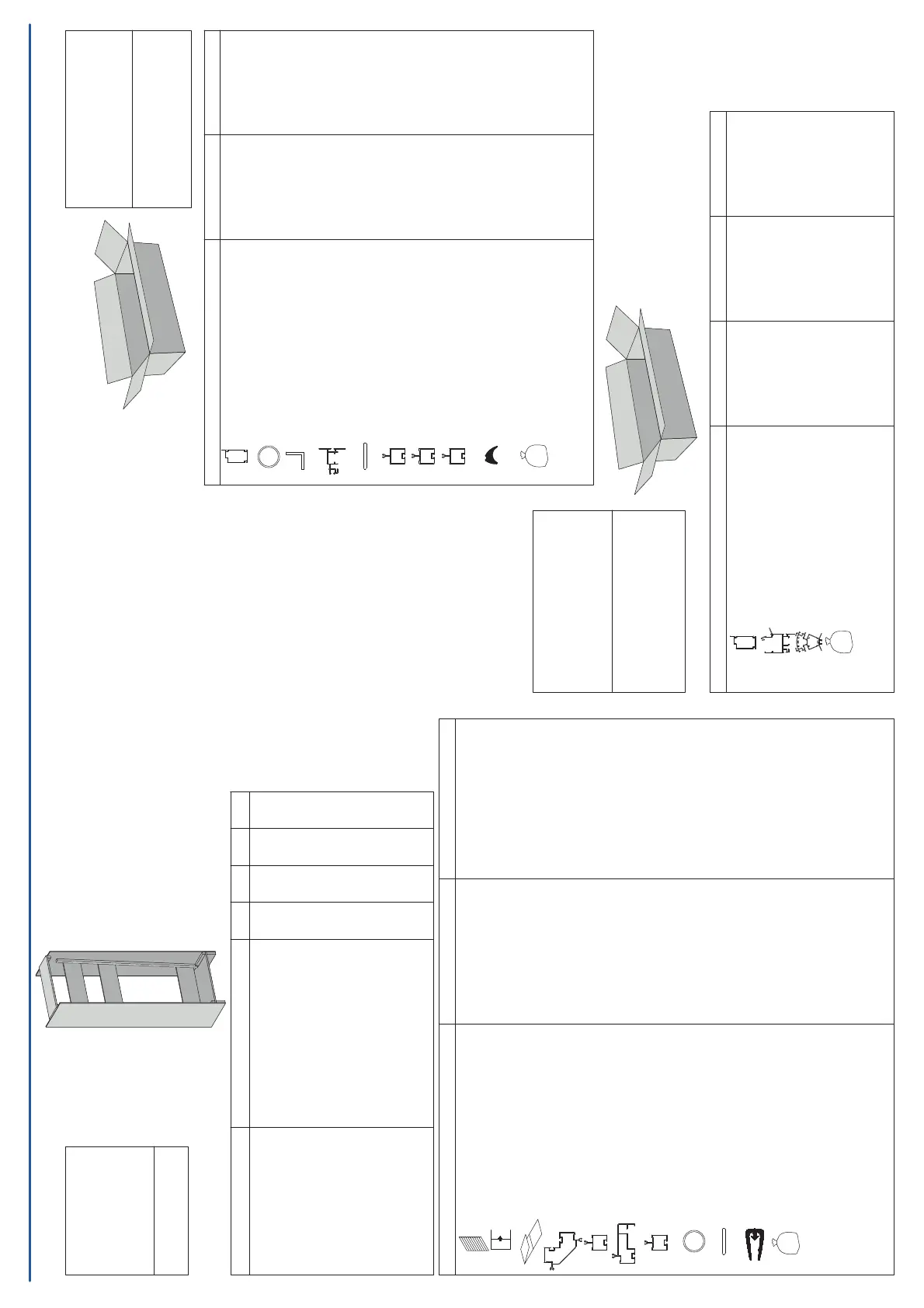

PACKING LIST Royal Victorian ("HELIOS MASTER")
Identify Parts by extrusion shape (cross-section) and length. If you don't
have one yet, we highly recommend a metric or combination tape measure!
