Servicing
EXAKT Precision Tools Ltd.
Tel: +44 (0)1467 633800
Midmill Business Park
Fax: +44 (0)1467 633900
Tumulus Way
e-mail: info@exaktpt.com
Kintore
Freephone numbers:
Inverurie AB51 0TG
D: 0800 180 7063
Scotland, UK
F: 0800 916696
I: 800 930 019
List of user-replaceable parts:
Blade
Part No.
Accessory
Part No.
60 Teeth
AS-26-01
Dust hose
AS-38-03
18 TCT
AS-31-01
Spare Guard
AS-144-01
16 TCT A
AS-142-01
Blade washer
AS-42-01
20 TCT P
AS-141-01
Blade Screw
05-11-02
20 TCT S
AS-140-01
Guard Screw
AS-108-01
G50
Diamond
AS-32-01
Hex Keys
AS-63-01
Edge Guard
AS-143-01
V-Guard
AS-39-01
If the replacement of the supply cord is necessary, this has
to be done by the manufacturer or his service agent in order
to avoid a safety hazard.

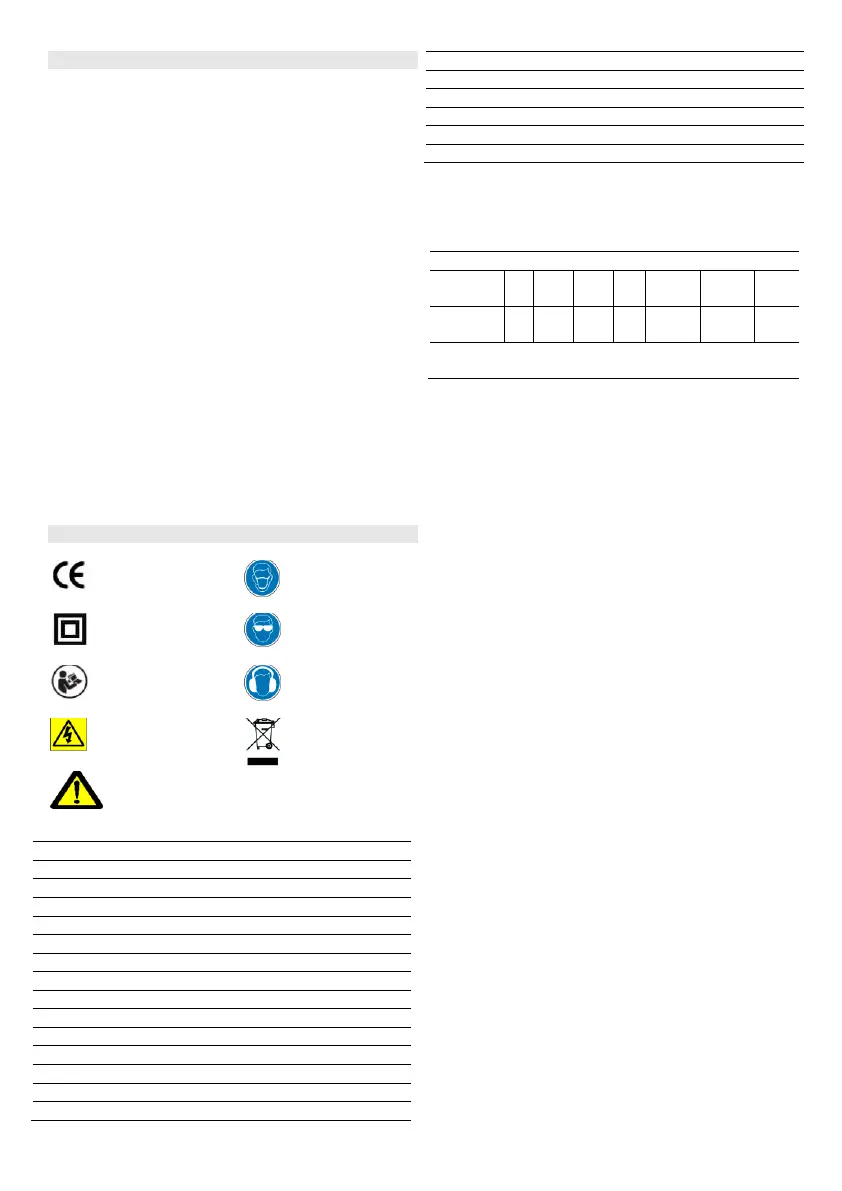

Explanation of Symbols
Conforms to
European
directives
Wear suitable
face mask
Double insulated
appliance
Wear eye
protection
Read instructions
before use
Wear ear
protection
Risk of electric
shock
Discard at
recognised
collection point
Risk of injury
when instructions
are not followed
Product reg. No.
WEE/BH0080UV
Specifications
EC-320
Usage
DIY
Motor power
350W
Depth of cut
0 -12 mm
Approx. no load blade speed
4000 rpm
Maximum duty cycle
3 min / 5 min
Gearbox reduction ratio
8.8:1
Approximate weight
1.2 kg
Maximum blade diameter
50.8 mm
Maximum / Minimum blade width
2 mm / 0.75 mm
Hand arm vibration value loaded
4 m / s
2
Uncertainty k
1.5 m / s
2
Sound pressure level Under load
89 dBA
Sound power level L
wa
Under load
100 dBA
Uncertainty k
3 dBA
Cutting Specs.
Wood
All types up to 12 mm
Metals
Up to 12mm
Composites
MDF, ply & chipboard to 12 mm
Plastics
Tufnol, perspex, fibreglass etc.
Minerals
Wall & Floor tiles, slates etc.
Where there is access to cut from the back surface of the
material, over cutting by the allowance shown will ensure
perfect corners on the front surface.
Over cutting allowances in mm
Depth
setting
1
2
3
4
6
9
12
Overcut
by
3
5.5
7.5
9
11.5
14.5
16.5
Assumes the depth has been set to 0.5 mm greater than
the material to be cut.
The declared vibration total value has been measured in
accordance with a standard test method and may be used
for comparing one tool with another.
The declared vibration total value may also be used in a
preliminary assessment of exposure
WARNING: The vibration emission during actual use of the
power tool can differ from the declared total value
depending on the ways in which the tool is used.
WARNING: There is a need to identify safety measures to
protect the operator that are based on an estimation of
exposure in the actual conditions of use (taking account of
all parts of the operating cycle such as the times when the
tool is switched off and when it is running idle in addition to
trigger time)
