7. Drawings & Schematics

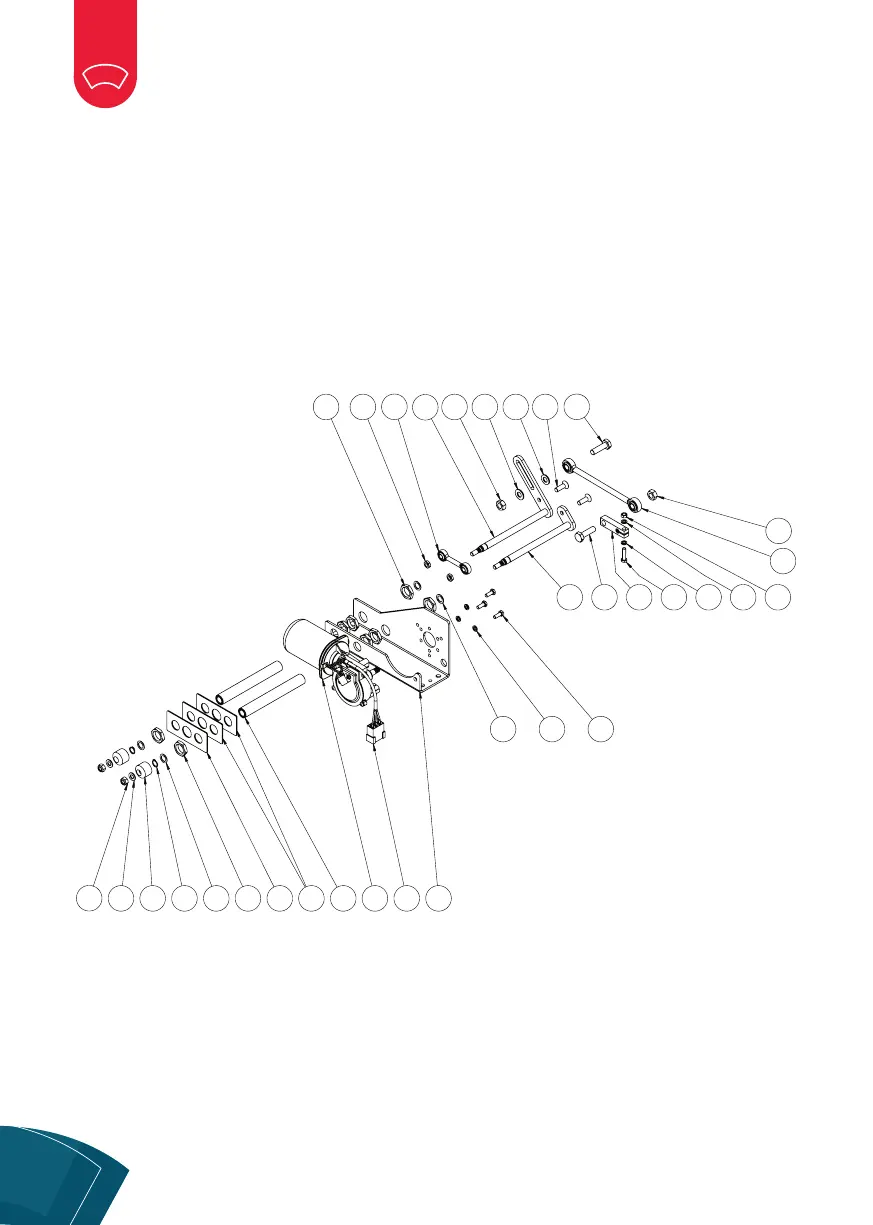

7.1 Assembly overview
20
22 19 12 8 6 18 17 7 2 3 1
6
8 5 4
26
14
25
21
15
16 105511
23
13
21 9
23 24 27
Pos. Qty Description PartNo Material Weight
27 1 Washer 0125A410 1.4401 - SS316 0.004
26 2 Nut Halve moer M10 0439A408 1.4401 - SS316 0.003
25 2 countersunk screw 7991A408025 1.4401 - SS316 0.010
24 1 Lock washer 10mm Large 2100.412L 1.4401 - SS316 0.004
23 2 Nut M10 0934A410 1.4401 - SS316 0.011
22 2 Washer 0125A408 1.4401 - SS316 0.002
21 2 Hexagon bolt 0933A410035 1.4401 - SS316 0.034
20 2 Self-locking nut 0985A408 1.4401 - SS316 0.006
19 2 Weathercap M20 2100.361 Rubber 0.005
18 1 SS sealing plate 2100.482 1.4401 - SS316 0.057
17 2 Rubber sealing plate 2100.492 Rubber 0.007
16 1 Idler spindle 255 WD 35 2197.106_A 1.4401 - SS316 0.21
15 1 Driven spindle 255 WD 35 2197.103_A 1.4404 - SS316 L 0.28
14 1 Connecting rod Ø8 L=60mm 2100.940 - 0.060
13 1 Connecting rod Ø10 L=175 2100.939 - 0.181
12 2 circlip 12mm 0471A2012 1.4401 - SS316 0.000
11 1 Hexagon bolt 0933A406025 1.4401 - SS316 0.009
10 1 Nut M6 0934A406 1.4401 - SS316 0.002
9 1 Drive crank complete 36.3 2197.081_B Gepassiveerd 0.074
8 4 filling ring 2100.400 1.4401 - SS316 0.001
7 2 Liner 255 WD 35mm 2197.157 Brass 0.214
6 8 Nut M20x1 2100.350 1.4401 - SS316 0.003
5 5 Lock washer 6mm 2100.413 1.4401 - SS316 0.001
4 3 Hexagon bolt 0933A406016 1.4401 - SS316 0.007
3 1 Block plug 2178.003 - C180906 ABS PC 0.010
2 1 Motor 12Volt 55Nm 2100.1255RHD-A 3.2315 - EN-AW 6082 1.830
1 1 Housing 255BS 2197.035 1.0037 (S235JR) passivated 1.415
18
MANUAL WIPER SYSTEMS
