between the circuit board and the screw head. This to allow for
some air space between the hard disk and the circuit board, and
for optimal fit in the casing.

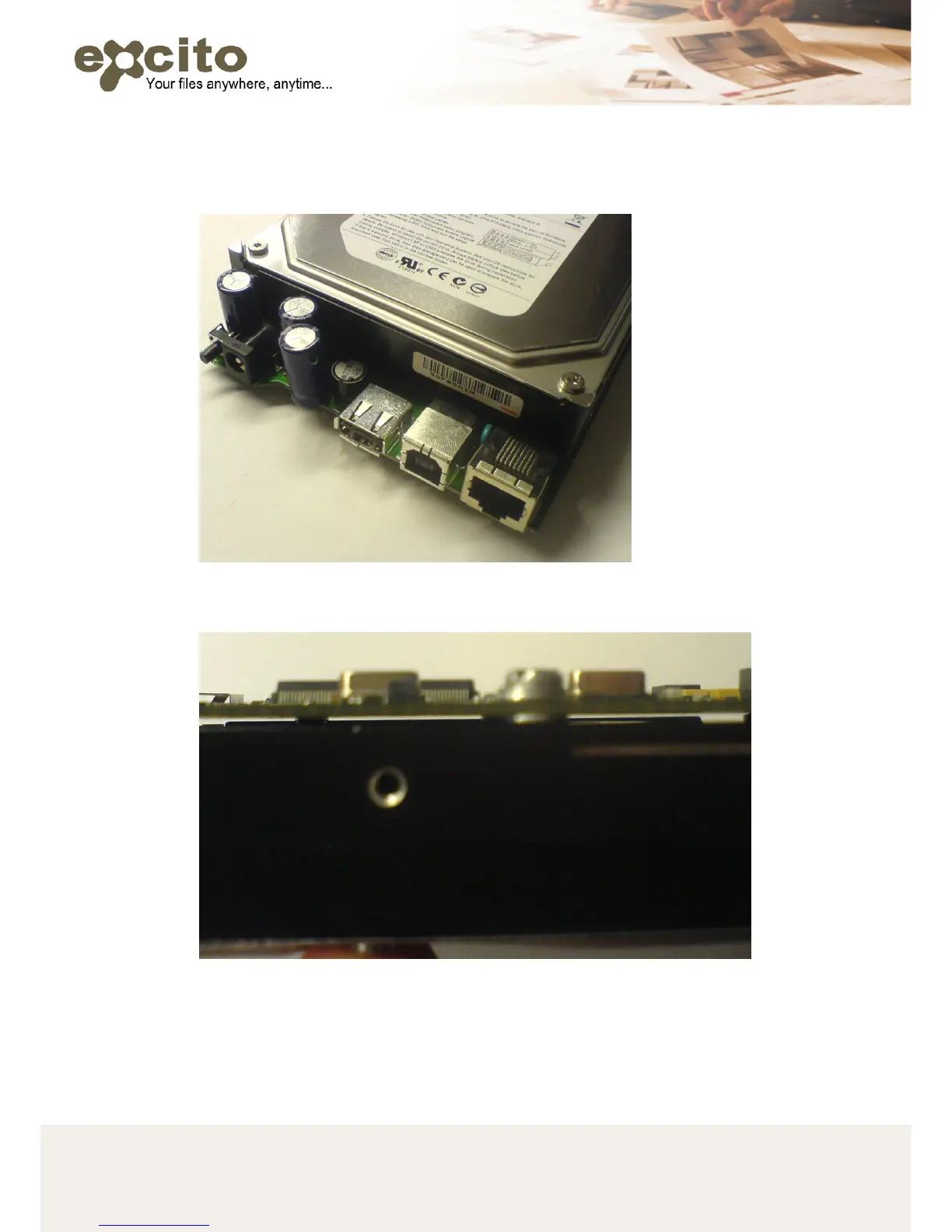

5. Gently slide the hard disk and circuit board into the casing. If
necessary, loosen the front panel a bit to allow for easier slide.
Make sure the LED hits the front panel hole.
6. Fasten all screws securely. All done!
