5
4. PART IDENTIFICATION CHART
Assembly requires two persons. Place all parts in a cleared area and remove the packing
materials. Do not dispose of the packing materials until assembly is completed. See below a list
of tools that are included with your product. In addition to the included tools, assembly may
require a Phillips screwdriver, an adjustable wrench, and a rubber mallet (not included).

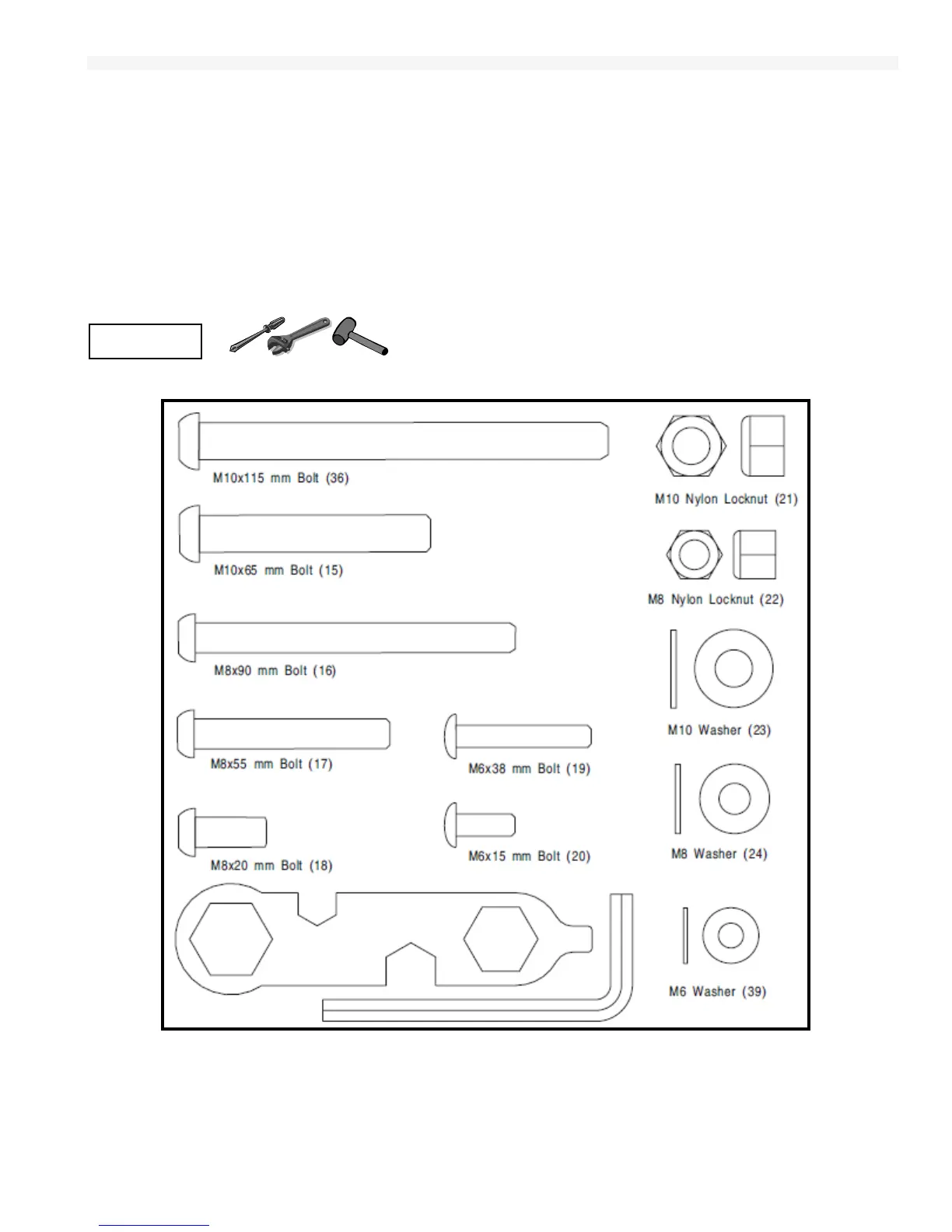

See the drawings below to identify the small parts needed for assembly. The number in
parentheses below each drawing is the key number of the part, from the PARTS LIST. The
number following the key number is the quantity needed for assembly. Note: If a part is not in
the hardware kit, check to see if it has been preassembled. To avoid damaging parts, do
not use power tools for assembly.
Not included:
