Exit Galaxy - Page 22

22
Galaxy
Basketball Systems
4
21
19
four M8 Locknuts (C2) assembly to Blackboard 19 .
10
19
20
C2
D2
G1
A5
20

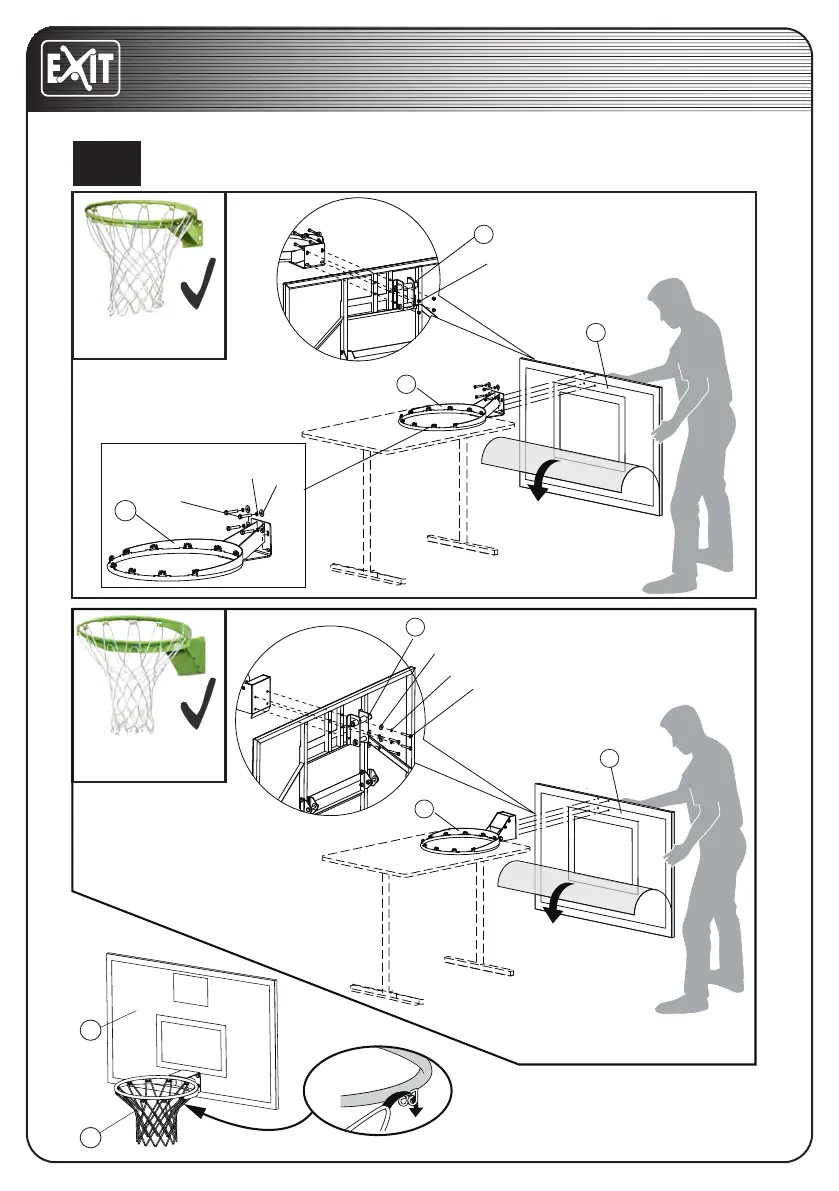

Attach the Backboard Bra
cket(10) and ducking rim (48) with four M8X50mm
Bolts (A5) , four M8 Spring Washers (G1) , four M8 Washers (D2), to
Blackboard（19）.
10
19
48
A5
G1
D2
Attach the Backboard Bracket(10) with the Ring (20) with four M8X40mm
Bolts (A4) , four M8 Spring Washers (G1) , four M8 Washers (D2),
four M8 Locknuts (C2) assembly to Blackboard（19）.
10
C2
Rim (20)
DUNK-Rim (48)
