Exmark FR524 - Page 21

16

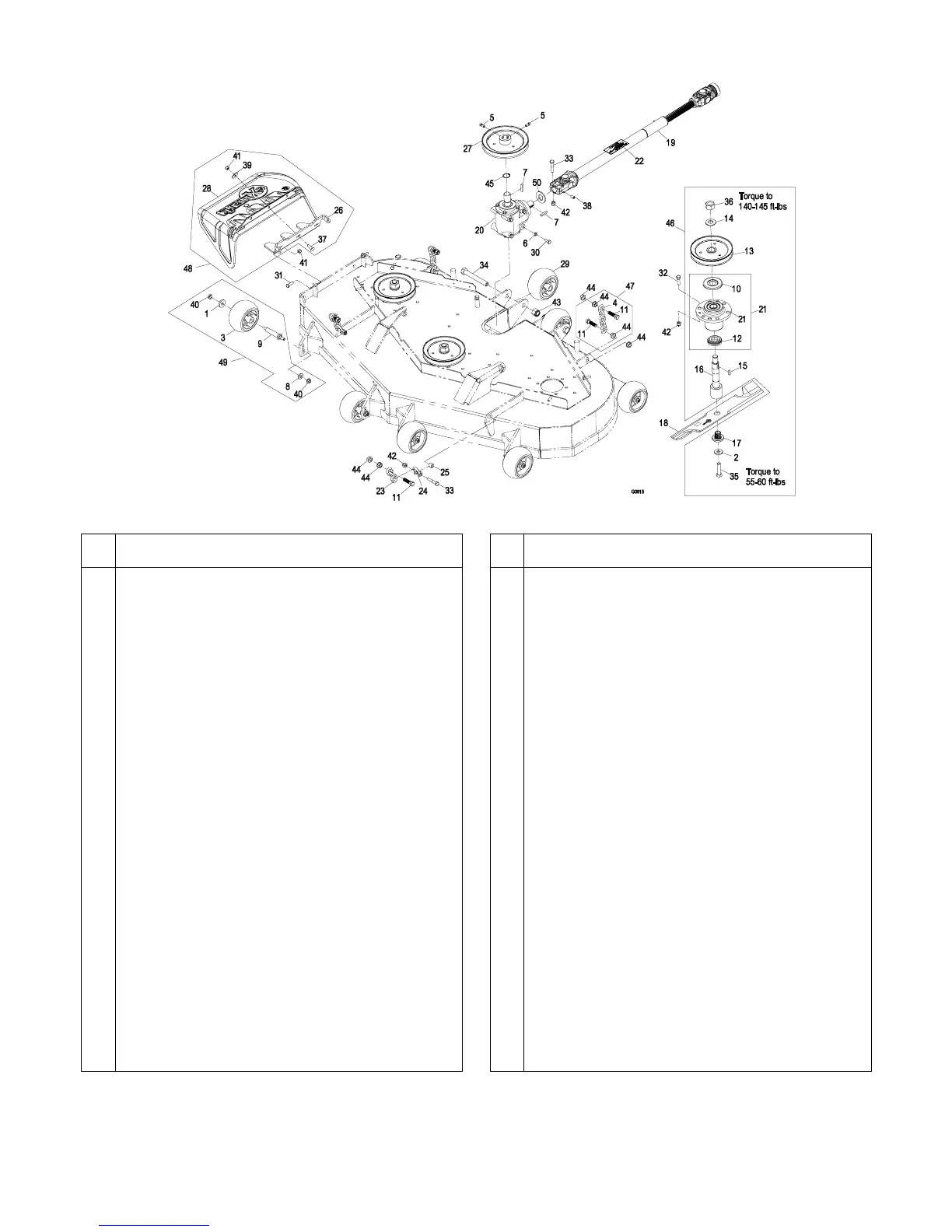

5.1 FR524 DECK GROUP (cont.)
Item Part No. Description Qty.
1 63-8410 Washer..................................................6
2 1-513435 Washer, Spring Disk 1/2 ........................3
3 1-603299 Roller, Anti Scalp ...................................6
4 1-633447 Chain, Deck Lift .....................................2
5 1-803022 Setscrew, 5/16-18 x 5/8 .........................2
6 1-805005 Washer, Lock 5/16 Heavy......................4
7 13-2840 Key, Machine 1/4 x 1/4 x 1 1/4...............2
8 98-5975 Washer, Spring Disk 3/8 ........................6
9 99-2842 Spacer ...................................................6
10 103-1330 Guard, Bearing Top ...............................3
11 103-1898 Screw, HH 7/16-20 x 1-5/8 Sp................6
12 103-2535 Spacer, Guard Bottom ...........................3
13 103-2794 Sheave, Blade Drive ..............................3
14 103-2802 Washer, Spring Disk 3/4 ........................3
15 103-2982 Key, Machine 1/4 x 3/16 x 3/4................3
16T
103-9086 Kit, Spindle ............................................3
17 103-3037 Bushing, Splined....................................3
18 103-6402 Blade, Notched ......................................3
103-6387 Blade, Low Lift .......................................3
X
103-6392 Blade, Mulching .....................................3
103-6382 Blade, Solid............................................3
103-6397 Blade, Extreme ......................................3
19 109-2767 Asm, Driveshaft .....................................1
20 103-7959 Gearbox.................................................1
21 103-8280 Asm, Cutter Housing..............................3
22 103-8425 Decal, Driveline......................................1
23 103-9859 Chain, Deck lift.......................................2
Item Part No. Description Qty.
24 103-9861 Shackle, Front Chain............................. 2
25 103-9863 Bushing ................................................. 2
26 109-0938-01 Bracket, Discharge Chute...................... 1
27 109-2714 Sheave, Split Steel ................................ 1
28 109-2738 Chute, Discharge................................... 1
29 109-2965 Roller.....................................................2
30 322-3 Screw, HH 5/16-18 x 3/4........................ 4
31 322-5 Screw, HH 5/16-18 x 1...........................2
32 323-7 Screw, HH 3/8-16 x 1 1/4....................... 18
33 323-9 Screw, HH 3/8-16 x 1 3/4....................... 3
34 327-12 Screw, HH 5/8-11 x 4 3/4....................... 2
35 3213-5 Screw, HH 1/2-20 x 2............................. 3
36O 3217-46 Nut, Hex 3/4-16 Heavy........................... 3
37 3230-22 Bolt, Carriage 5/16-18 x 1 Sp................. 3
38O 3247-4 Setscrew, HSH 3/8-16 x 5/8...................1
39 3256-82 Washer..................................................3
40 3290-357 Nut, Whizlock 3/8-16 ............................. 12
41 3296-29 Nut, Nyloc 5/16-18.................................5
42 3296-39 Nut, Nyloc 3/8-16................................... 21
43 3296-53 Nut, Nyloc 5/8-11................................... 2
44 32128-37 Nut, Whizlock 7/16-14 ........................... 12
45 32151-29 Ring, Retaining...................................... 1
46 103-9076 Asm, Cutter Housing Complete .............3
47 103-9792 Asm, Deck Chain................................... 2
48 109-2148 Asm, Discharge Chute...........................1
49 103-4051 Kit, Antiscalp.......................................... 6
50 109-4492 Washer, Special .................................... 1
Exmark red touch up paint (spray paint - P/N 1-850337 - .6 oz liquid bottle - P/N 103-9140).
X Requires installation of Micro-Mulch accessory for proper mulching. Mulch kit P/N MK524Q.
 Apply Mobil HTS grease (P/N 103-5217 1.5 oz packet) (or a food-grade anti-seize) between the spindles & bearings
and spindles & sheaves and under top bearing guard. DO NOT use a copper or nickel based anti-seize.
S Kit includes items #2, #14, #15, #17, #35 & #36.
O Use Pro-Lock, Nut Type (P/N 1-840022, .5ml tube) on nut, Item #36 and setscrew, item #38.
