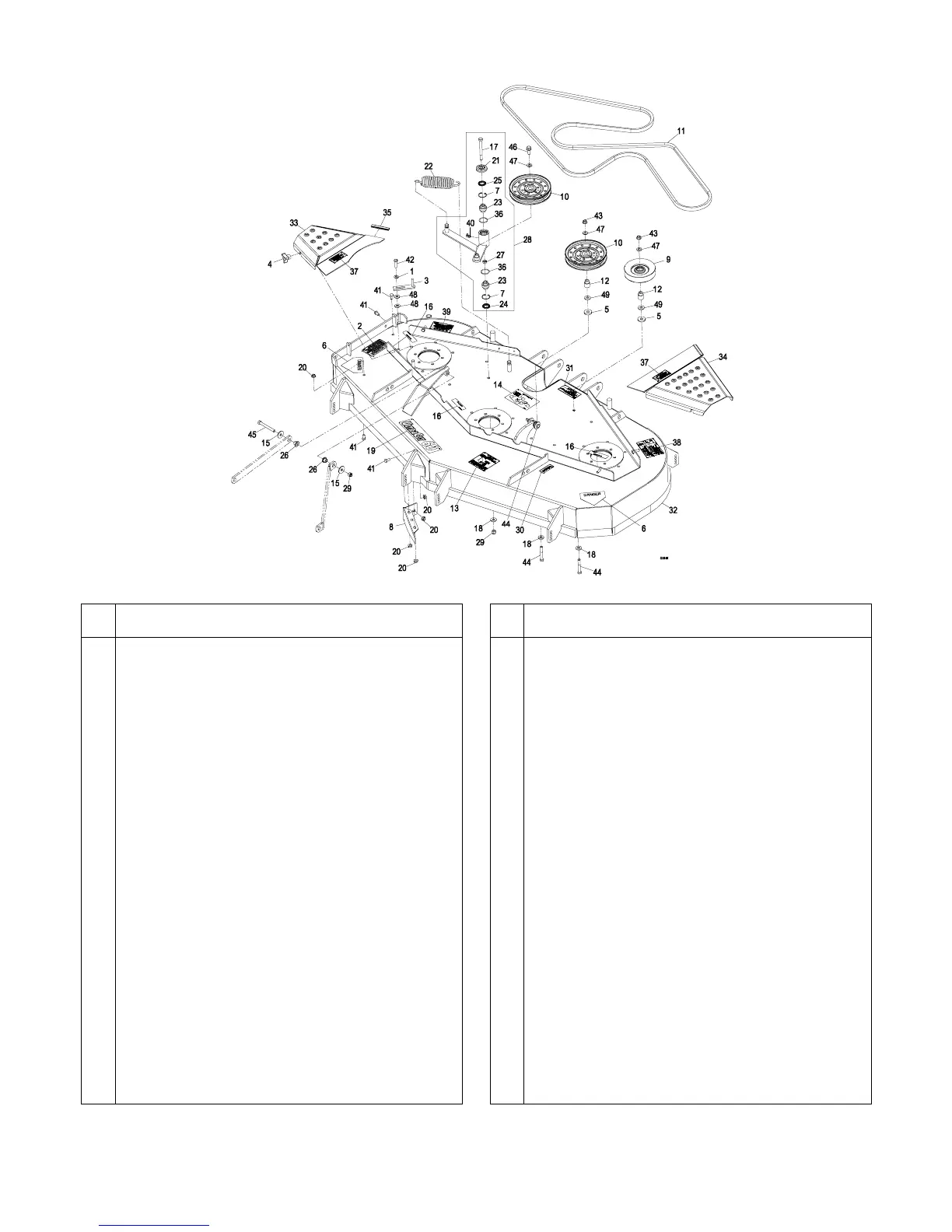

5.2 FR604 DECK GROUP
Item Part No. Description Qty.
1 1-303334 Washer, Spring Disk 5/16 ......................1
2 1-303508 Decal, Discharge Warning .....................1
3 1-322110 Wld, Belt Guide......................................1
4 1-323385 Knob, 3 Prong........................................4
5 1-373034 Washer ..................................................2
6 1-403005 Decal, Danger........................................2
7 32120-10 Ring, Retaining ......................................2
8 1-602913-01 Wld, Baffle Discharge ............................1
9 1-603805 Sheave, Idler..........................................1
10 1-633109 Sheave, Flat Idler...................................2
11 1-633127 Belt, Blade Drive ....................................1
12 1-633456 Bushing, Idler.........................................2
13 1-633922 Decal, Antiscalp.....................................1
14 1-643222 Decal, Belt Routing ................................1
15 63-8410 Washer ..................................................4
16 98-5954 Decal, Danger........................................3
17 98-5961 Screw, HH 3/8-16 x 4 Gr8 ......................1
18 98-5975 Washer, Spring Disk 3/8 ........................3
19 103-1146 Decal, Ultracut 60 ..................................1
20 32128-20 Nut, Whizlock 5/16-18............................6
21 103-2916 Guard, Top.............................................1
22 103-3330 Spring, Extension...................................1
23 103-3504 Bearing, Spherical..................................2
24 103-3505 Seal, Double Lip.....................................1
25 103-3506 Seal, Single Lip......................................1
Item Part No. Description Qty.
26 103-3900 Spacer, Strut .........................................4
27 103-5677 Spacer................................................... 1
28 103-5693 Asm, Deck Idler.....................................1
29 3296-39 Nut, Nyloc 3/8-16................................... 3
30 109-3148 Decal, Bolt Torque................................. 1
31 103-8425 Decal, Driveline .....................................1
32 109-4381 Asm,Fmz604 Deck W/Decals................ 1
33 109-2391 Asm, Belt Shield W/Decal RH................1
34 109-2392 Asm, Belt Shield W/Decal LH................ 1
35 105-7699 Strip, Seal, 3"......................................... 2
36 106-7159 O-Ring................................................... 2
37 109-2354 Decal, Crushing Hazard......................... 2
38 109-2359 Decal, Deck Warning............................. 1
39 109-2376 Decal, Crushing Hazard......................... 1
40 302-40 Zerk, 90° 1/4-28..................................... 1
41 322-2 Screw, HH 5/16-18 x 5/8........................ 5
42 322-6 Screw, HH 5/16-18 x 1 1/4.....................1
43 3290-357 Nut, Whizlock 3/8-16 ............................. 2
44 323-12 Screw, HH 3/8-16 x 2 1/2....................... 3
45 323-20 Screw, HH 3/8-16 x 3-1/4.......................1
46 3234-11 Screw, HH FLG 3/8-16 x 1..................... 1
47 3256-24 Washer, 3/8 SAE................................... 3
48 3256-3 Washer, 5/16 Std................................... 2
49 3256-4 Washer, 3/8 Std.....................................2
50X 109-4380 Asm, Deck Complete.............................1
Exmark red touch up paint (spray paint - P/N 1-850337 - .6 oz liquid bottle - P/N 103-9140).
 Kit also includes items #18 & #29.
X Complete deck assembly includes all items from pages 17 & 18 except drive shaft assembly, drive shaft
assembly hardware, deck chain, and deck chain hardware on page 18.
