Expolite ELF24 - Power Connection

UPLTGHT
The LED
mini BATTEN
can be
mounted in
an upright or sitting
position
using the
supporting
brackets.

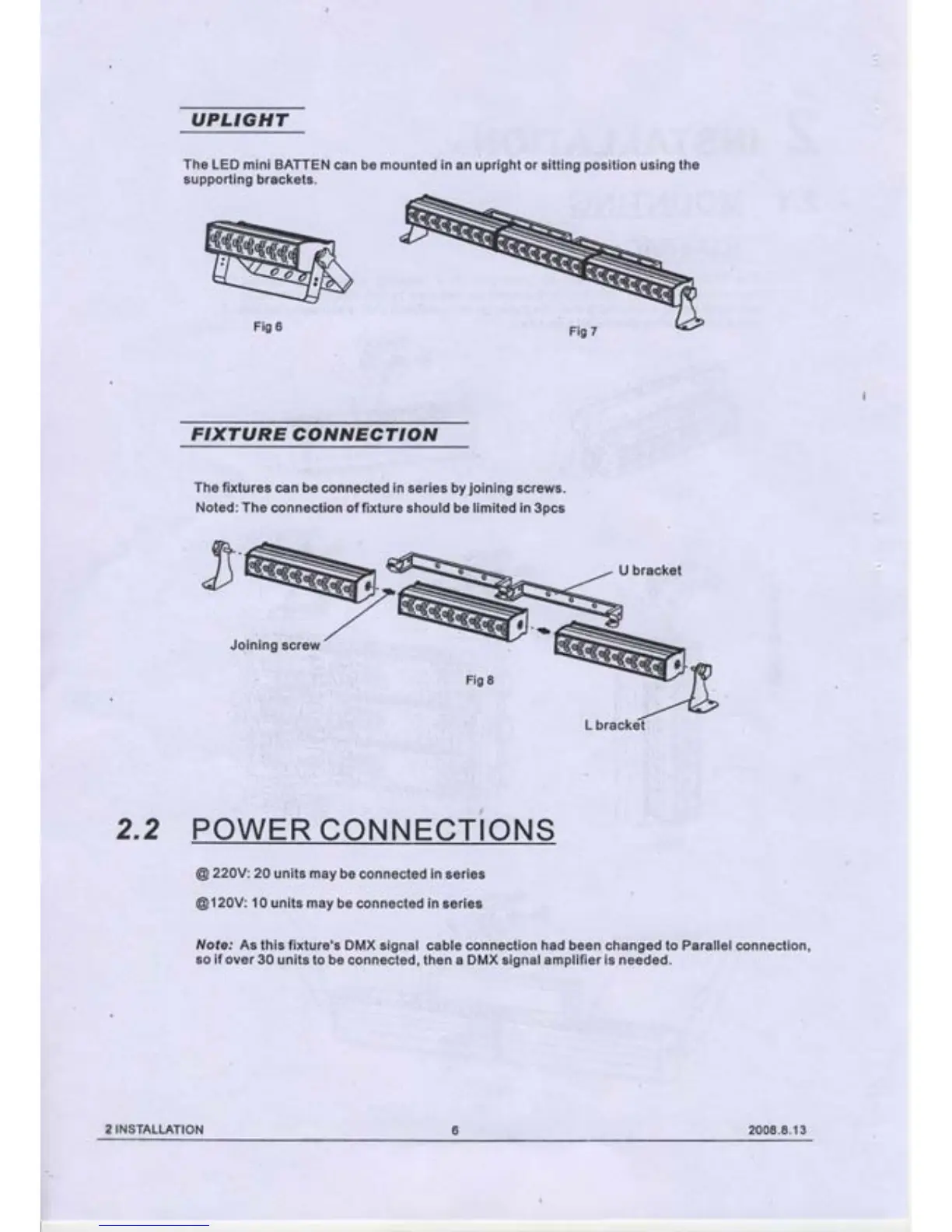

Fig 6
FT,XTURE
CONNECTION
The
fixtures can be connected in
series by
joining
screws.
Noted: The
connection of fixture should be limited in
3pcs
U bracket
@22OV:20
units may
be connected in
series
@120V:10
units may
be connected in series
,",
'
Alote.'
As
this fixture's DMX
signal cable connection
had been changed
to
Parallel
connection,
so
if
over
30 units
to
be
connected, then a
DMX
signal amplifier is needed.
2.2
ER
CONNECTIONS
gINSTALLATION
