Express SERIES “H” - Distribution Pipes

33

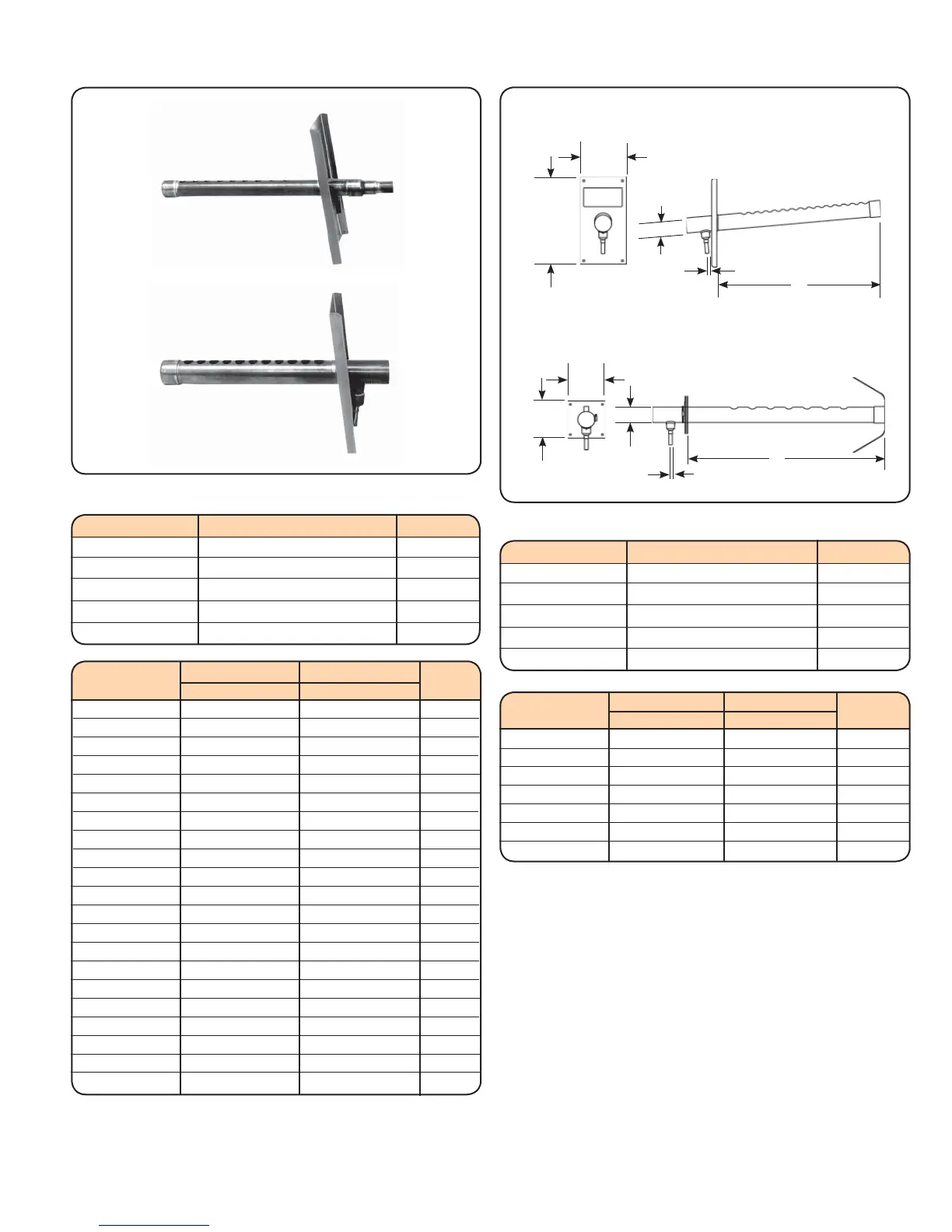

STEAM DISTRIBUTOR PIPES
Distributor Pipes for Models: HTG, HSG, HTH, HSH
Minimum** Maximum**
PIPE N N T
HXPBC048S 43 (1092mm) 46 (1168mm) 1-5/8
HXPBC060S 55 (1397mm) 58 (1473mm) 1-5/8
HXPBC072S 67 (1702mm) 70 (1778mm) 1-5/8
HXPBC084S 79 (2007mm) 82 (2083mm) 1-5/8
HXPBC096S 91 (2311mm) 94 (2388mm) 1-5/8
HXPBC108S 103 (2616mm) 106 (2692mm) 1-5/8
HXPBC120S 115 (2921mm) 118 (2997mm) 1-5/8
Minimum**
Maximum**
PIPE N N T
HXPBB040S 35 (889mm) 38 (965mm) 7/8
HXPBB044S 39 (991mm) 42 (1067mm) 7/8
HXPBB048S 43 (1092mm) 46 (1168mm) 7/8
HXPBB052S 47 (1194mm) 50 (1270mm) 7/8
HXPBB056S 51 (1295mm) 54 (1372mm) 7/8
HXPBB060S 55 (1397mm) 58 (1473mm) 7/8
HXPBB064S 59 (1499mm) 62 (1575mm) 7/8
HXPBB068S 63 (1600mm) 66 (1676mm) 7/8
HXPBB072S 67 (1702mm) 70 (1778mm) 7/8
HXPBB076S 71 (1803mm) 74 (1880mm) 7/8
HXPBB080S 75 (1905mm) 78 (1981mm) 7/8
HXPBB084S 79 (2007mm) 82 (2083mm) 7/8
HXPBB088S 83 (2108mm) 86 (2184mm) 7/8
HXPBB092S 87 (2210mm) 90 (2286mm) 7/8
HXPBB096S 91 (2311mm) 94 (2388mm) 7/8
HXPBB100S 95 (2413mm) 98 (2489mm) 7/8
HXPBB104S 99 (2515mm) 102 (2591mm) 7/8
HXPBB108S 103 (2616mm) 106 (2692mm) 7/8
HXPBB112S 107 (2718mm) 110 (2794mm) 7/8
HXPBB116S 111 (2819mm) 114 (2896mm) 7/8
HXPBB120S 115 (2921mm) 118 (2997mm) 7/8
**See Note A
**NOTE A
The mounting plate on these pipes is adjustable to compensate
for slight variations in ductwork dimensions. The “N” dimension is
shown at both maximum and minimum depending on the position
of mounting plate. A mounting strap is provided on the end of the
pipe to secure to the top or side of the duct for support.
MATERIAL
Standard distributor pipes are fabricated from stainless steel.
Distributor Pipes for Models: HTA, HSA, HTD, HSD
PIPE N T
HXPBB012S 11-13/16 (300mm) 7/8
HXPBB018S 17-13/16 (452mm) 7/8
HXPBB024S 23-13/16 (605mm) 7/8
HXPBB030S 29-13/16 (757mm) 7/8
HXPBB036S 35-13/16 (910mm) 7/8
PIPE N T
HXPBC012S 11-13/16 (300mm) 1-5/8
HXPBC018S 17-13/16 (452mm) 1-5/8
HXPBC024S 23-13/16 (605mm) 1-5/8
HXPBC030S 29-13/16 (757mm) 1-5/8
HXPBC036S 35-13/16 (910mm) 1-5/8
Lengths 012-036
Lengths 048-120
5”
(127)
4”
(102)
4”
(102)
9-1/2”
(241)
N
3/8”
3/8”
N
T
T
