4
RS-232 Isolator and Surge Protector

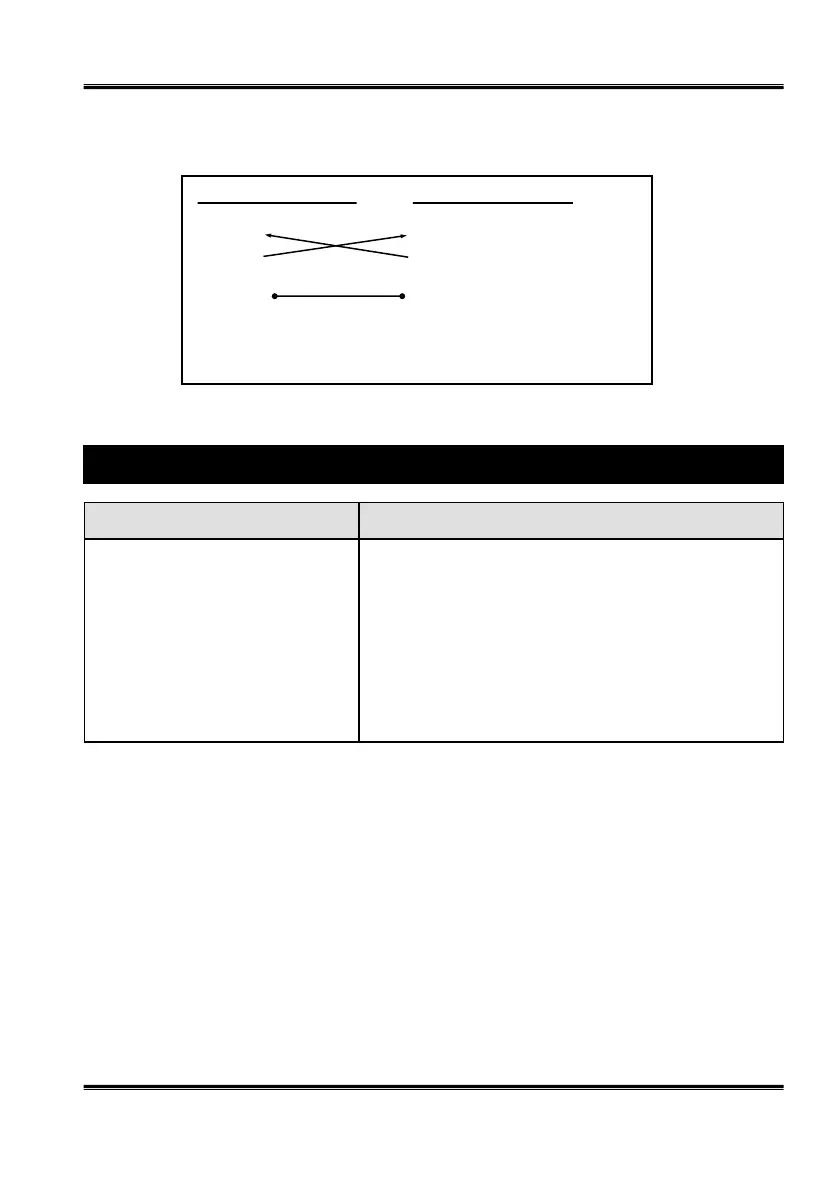

6. Specifications
DB9-Male Pin Assignment:
DB9(USB Adapter) DB9(Serial Device)
1 NC 1 NC
2 RXD 2 RXD
3 TXD 3 TXD
4 NC 4 NC
5 GND 5 GND
6 NC 6 NC
7 NC 7 NC
8 NC 8 NC
Type Specifications
Connectors
Number of Ports
RS232 Signals
Baud Rate
Power Requirement
Operating Temperature
Operating Humidity
DB9 Female, DB9 Male
1 RS232
TXD, RXD, GND
Up to 921.6Kbps
5V/100mA max.
0 to 608C (32 to 1408F)
5 to 95% RH
